  • Sodium Metal Chips Sodium Disk for Sodium ion Battery Anode Materials
  • Sodium Metal Chips Sodium Disk for Sodium ion Battery Anode Materials
Sodium Metal Chips Sodium Disk for Sodium ion Battery Anode Materials Sodium Metal Chips Sodium Disk for Sodium ion Battery Anode Materials

Sodium Metal Chips Sodium Disk for Sodium ion Battery Anode Materials

  • Product Name:Na Chips
  • Thickness:0.45mm
  • Brand Name: AOT
  • Product Orgin:China
  • Product description: CR2032 2025 2016 Coin Cell Sodium Battery Materials Complex Sodium Chips 99.7% High Purity Electrode Na Metal Chips
  • INQUIRY

99.7% High Purity Electrode Na Metal Chips Sodium Chips For CR2032 2025 2016 Coin Cell Case.

Specifications:

Product Name

Sodium(Na) metal chips

Thickness

0.45mm

Diameter

8mm,12mm,14mm,15.6mm,18mm

Packing

200pcs/bottle,400pcs/bottle

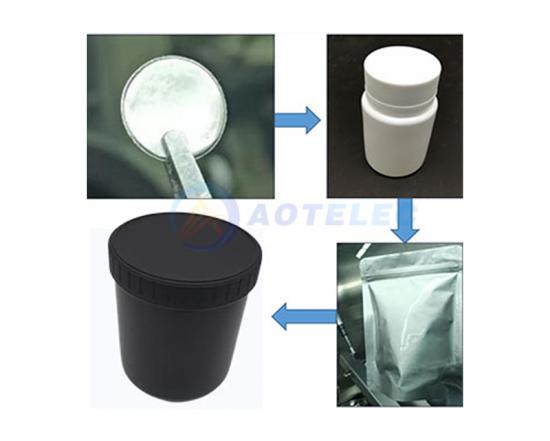

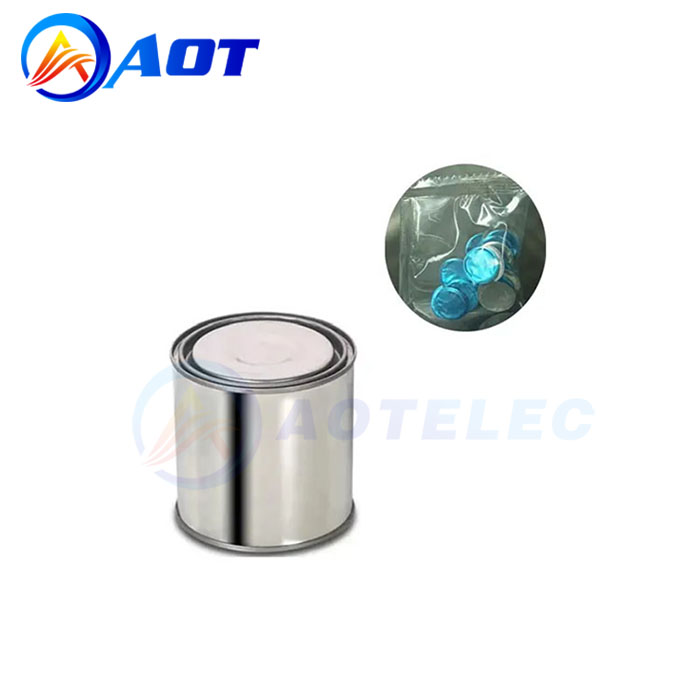

Packaging Description

Four-layer packaging technology is employed. One side of the sodium sheet is covered with Aluminum Foil, serving as both a support and current collector while also protecting the sodium. Additionally, both sides are covered with protective films to prevent oxidation. The sodium sheets are then placed in plastic bottles, which are further enclosed in aluminum-plastic bags and finally packaged in iron cans for long-term storage and safety.



Instructions for use

1.The package must be opened inside a glove box with Argon Gas and moisture less than 2%RH.

2.Open the aluminum bag and take out the whole plastic bottle. After taking a certain amount of sodium chips and tightly close the bottle cap.

3.Using a tweezer with a flat tip to hold the sodium chip to and then remove the protection membranes with a sharp tweezer. Blue and transparent membranes are removed in sequence.

4.During the battery cell assembling, the aluminum side should be faced to the cell case and sodium metal side should be faced to a separator.

Thickness 0.45mm   1.include 420um Na metal sheet and 30um Al metal for support and current collector;

                               2.include 430um Na metal sheet and 20um copper metal for support and current collector;

                                3.Pure sodium, without aluminum or copper .


Sodium Metal chips

Na  chips
