description：

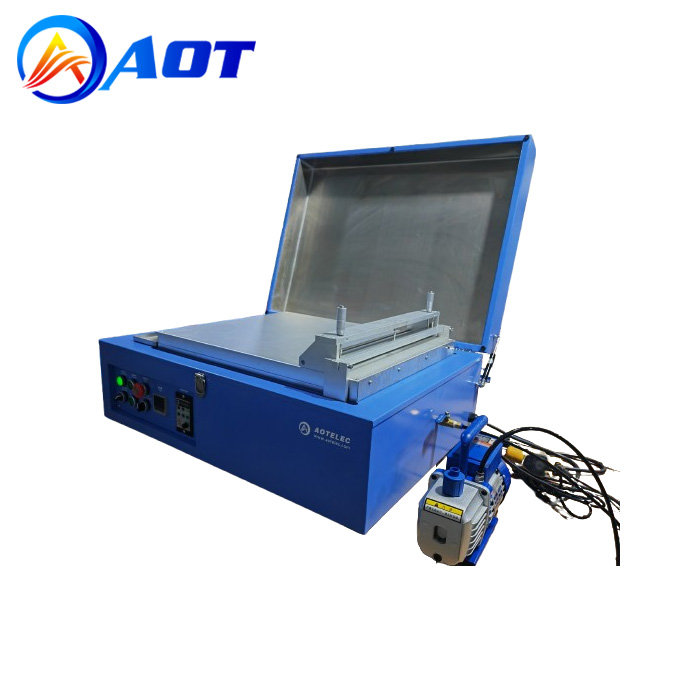

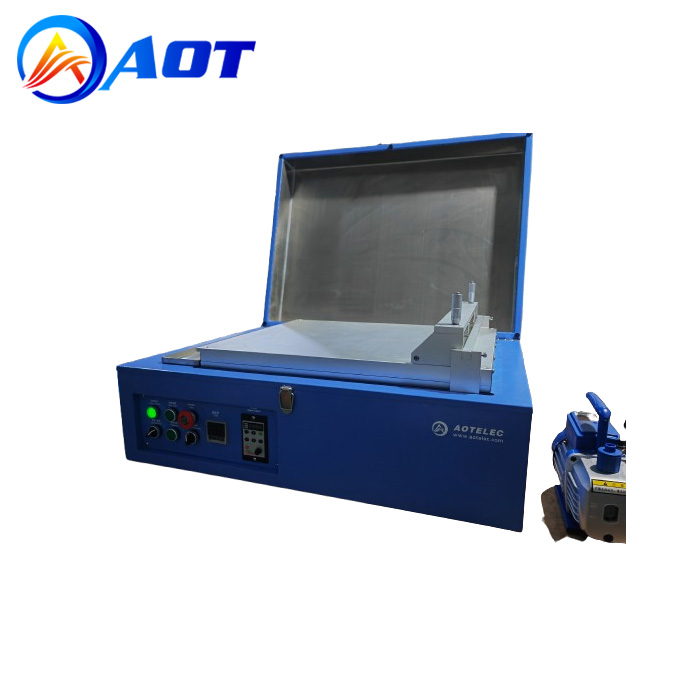

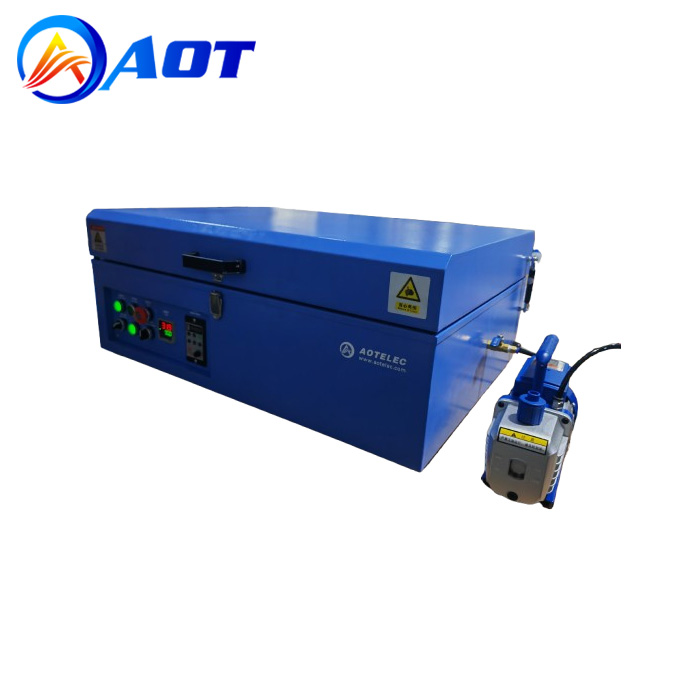

The battery coating machine is a device specially used for uniformly coating the surface of the positive and negative electrode materials of the battery. It enables precise control of coating thickness and speed to ensure the stability of coating quality and performance. In the lithium battery production process, the battery coating machine plays an important role in effectively preventing the direct contact between the battery material and the electrolyte, and improving the safety and electrochemical performance of the battery.

Features：

1. The film coating motor is a low-speed synchronous synchronous motor from Taiwan Edley;

2. The ball screw and linear guide are only imported from Taiwan with high-precision HIWIN brand:

3. The doctor blade(applicator) adopts the SUS316L stainless steel material imported from Finland:

4. Drying system with strong wind heating and digital display temperature control, the maximum working temperature is 150℃;

5. The coating film speed can be adjusted within the range of 0-60mm / sec, with digital display;

6. Vacuum aluminum plate, can quickly place or remove the electrodes, copper foil, Aluminum Foil;
