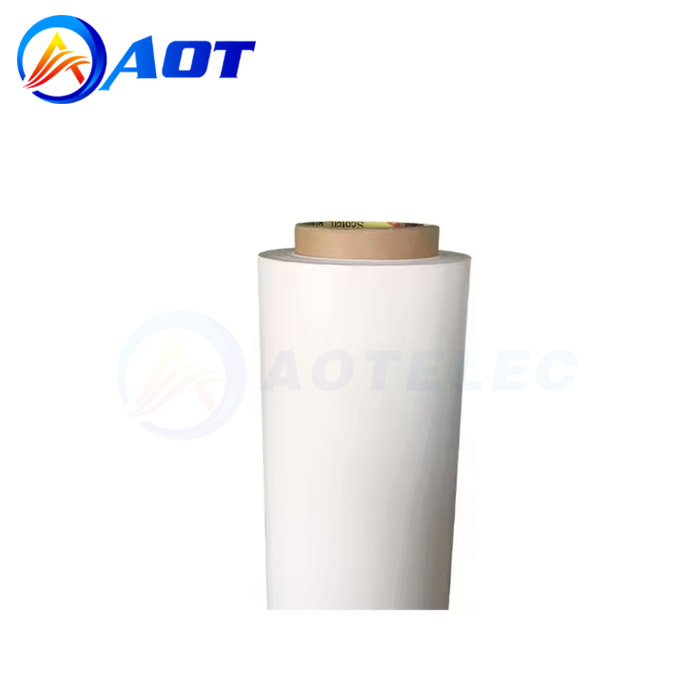

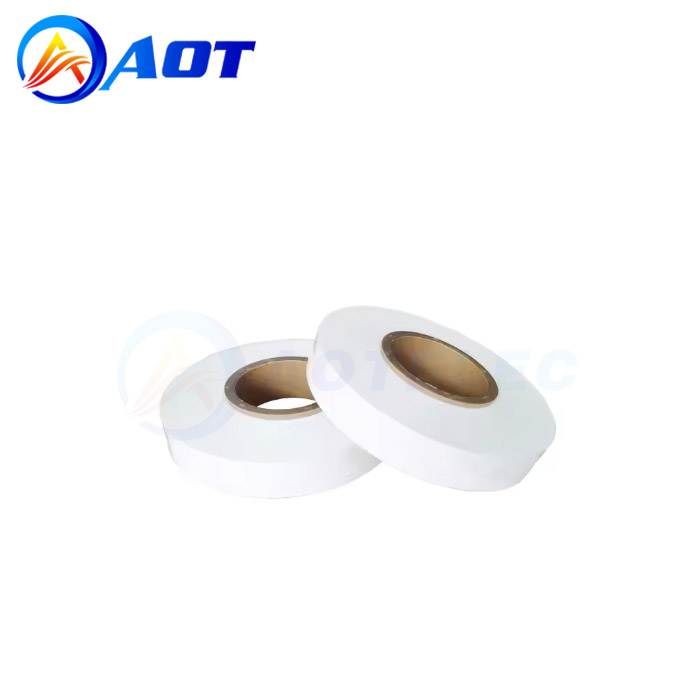

12μm PE Separator for Lithium Ion Batteries Insulation Film

Product Name：PE Separator
AOT-WS-12
Brand Name. AOT
Product Orgin:China
Product description: PE diaphragms have the advantages of good chemical stability, low cost and controllable porosity.
INQUIRY

The PE separator for lithium batteries is a microporous film made of polyethylene (PE) as the base material and is one of the key components of lithium batteries. It is located between the positive and negative electrodes of the battery, which can prevent direct contact between the two electrodes and short circuit. Meanwhile, its micro-porous structure allows lithium ions to pass freely, ensuring the normal charging and discharging of the battery. PE separators have the advantages of good chemical stability, low cost and controllable porosity, which can effectively enhance the energy density and cycle life of batteries. However, its heat resistance is relatively weak and it is prone to deformation at high temperatures. Therefore, in practical applications, PE separators are often modified by coating them with materials such as ceramics to enhance their thermal stability and mechanical strength, thereby better meeting the performance requirements of lithium batteries.

Product model				WS-12(Wet-process PE separator)
Serial number	Test items			Testing tools, instruments and equipment	Parameters
1	Appearance	Other appearances		Visual estimation	The surface is smooth, the winding is neat, and there are no wrinkles, dirt or other defects
2	Slit width (mm)			Caliper	+0.5
3	Thickness (um)			Micrometer	12.0±2.0
4	Surface density (g/m ²)			Electronic balance	6.5±1.0
5	Air permeability (sec/100cc)			Air permeability tester	150±50
6	Porosity of the base film (%)			Micrometer, electronic balance, air permeability tester	45±5%
7	Needle-puncture strength (gf）			Electronic universal testing machine	≥500
8	Tensile strength (kgf/cm ²)		MD	Electronic universal testing machine	≥1500
			TD
9	Thermal contraction		MD	Oven, ruler	≤3.0%
			TD		≤1.0%
10	Outer packaging			The inner part is sealed in a transparent white sealed plastic bag. The pallets and central paper tubes are suspended and fixed. The outer part is packed in a cardboard box. The outer box is marked with the model, quantity, shipping date, etc.
Precautions				Handle with care to avoid hitting hard objects and damaging the diaphragm. The unused diaphragm must be put back into the plastic bag for storage. The storage temperature should be 25+5℃ and the humidity should be 50%.

Company Profile

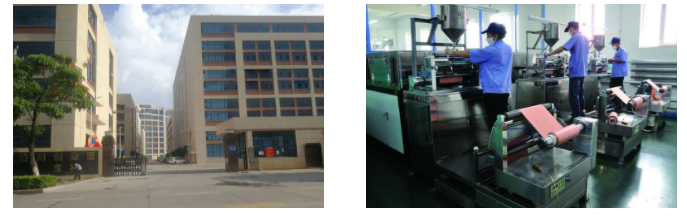

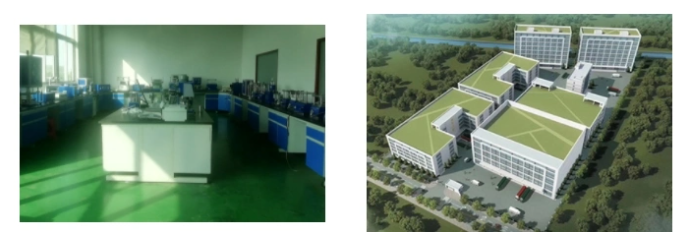

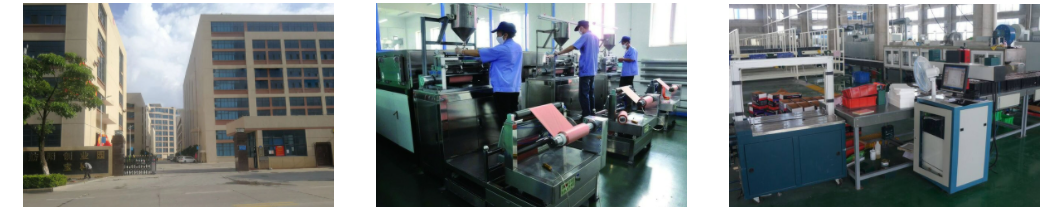

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
