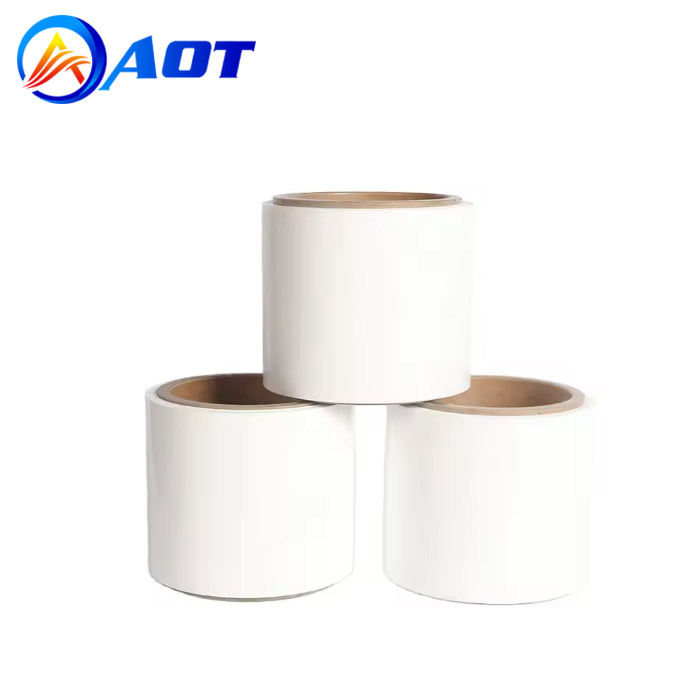

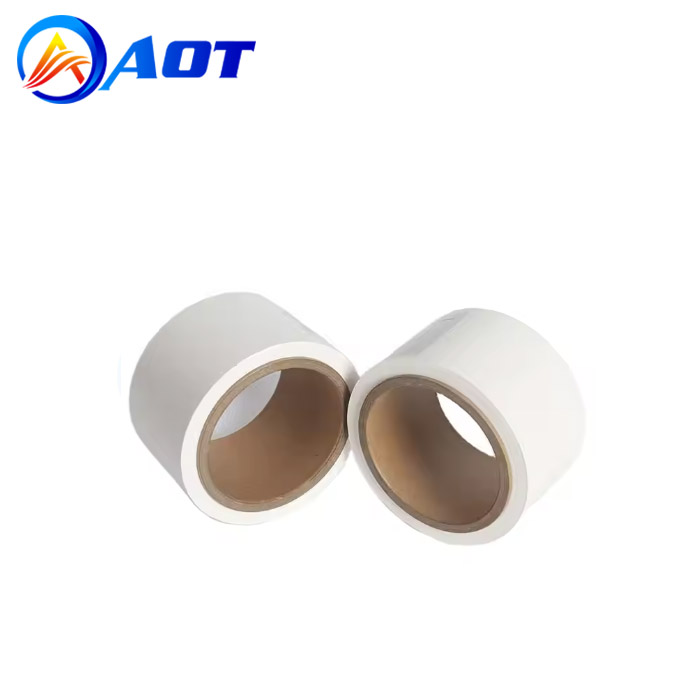

The PE separator is one of the key inner components of lithium batteries and is crucial to the battery's performance and safety. It is located between the positive and negative electrodes of the battery. Its main function is to isolate electrons, prevent direct contact between the positive and negative electrodes from causing a short circuit, and at the same time allow lithium ions to pass freely, ensuring the ion conduction during the battery's charging and discharging process.
High-quality diaphragms should possess excellent chemical stability, mechanical strength, porosity and wettability. Chemical stability ensures that it does not react with the electrolyte, etc. The mechanical strength ensures that the battery is not punctured during assembly and use. Appropriate porosity is conducive to the efficient transmission of ions. Good wettability helps the electrolyte to fully wet, enhancing the overall performance and cycle life of the battery.
Product model | WS-11(Wet-process PE separator) | ||||
Serial number | Test items | Testing tools, instruments and equipment | Parameters | ||
1 | Appearance | Other appearances | Visual estimation | The surface is smooth, the winding is neat, and there are no wrinkles, dirt or other defects | |
2 | Slit width (mm) | Caliper | +0.5 | ||
3 | Thickness (um) | Micrometer | 11.0±2.0 | ||
4 | Surface density (g/m ²) | Electronic balance | 6.0±1.0 | ||
5 | Air permeability (sec/100cc) | Air permeability tester | 150±50 | ||
6 | Porosity of the base film (%) | Micrometer, electronic balance, air permeability tester | 45±5% | ||
7 | Needle-puncture strength (gf) | Electronic universal testing machine | ≥450 | ||
8 | Tensile strength (kgf/cm ²) | MD | Electronic universal testing machine | ≥1500 | |
TD | |||||
9 | Thermal contraction(90℃/2h) | MD | Oven, ruler | ≤3.0% | |
TD | ≤1.0% | ||||
10 | Outer packaging | The inner part is sealed in a transparent white sealed plastic bag. The pallets and central paper tubes are suspended and fixed. The outer part is packed in a cardboard box. The outer box is marked with the model, quantity, shipping date, etc. | |||
Precautions | Handle with care to avoid hitting hard objects and damaging the diaphragm. The unused diaphragm must be put back into the plastic bag for storage. The storage temperature should be 25+5℃ and the humidity should be 50%. | ||||
Company Profile

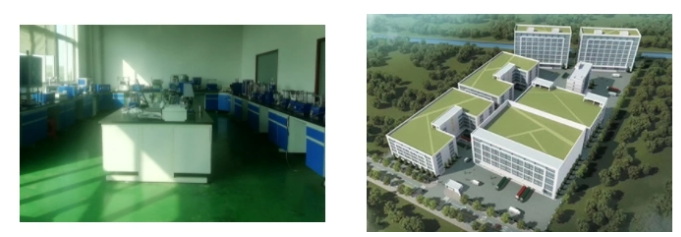

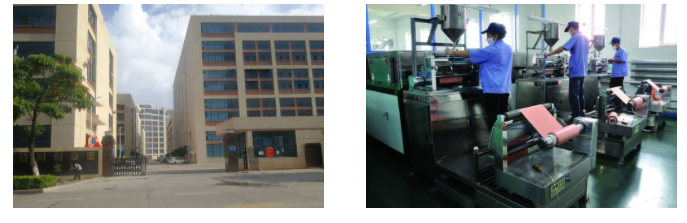

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
