Battery Coin Cell Crimper Analysis

In the field of lithium battery materials and equipment manufacturing, coin batteries, as a type of micro battery, are widely used in numerous areas such as smart wearable devices, medical electronics, Internet of Things sensors, and micro motor drives, thanks to their advantages of small size, high energy density, and low self-discharge rate. As a key piece of equipment in the production process of coin batteries, the performance and quality of the coin cell Crimper directly affect the sealing property, safety and service life of the batteries.

1.The importance of coin cell crimper

Coin batteries are mainly composed of positive electrodes, negative electrodes, separators and electrolytes, etc. The components of the battery are sealed in a metal casing through the edge rolling process. The main function of the edge curling machine is to curl and compact the edges of the battery casing to ensure that the internal components of the battery are closely combined, preventing the leakage of electrolyte and the entry of external impurities. A high-quality edge rolling machine can provide uniform and stable edge rolling pressure and precise edge rolling dimensions, thereby enhancing the yield and performance stability of batteries. If the performance of the edge rolling machine is poor, it may cause problems such as battery leakage, short circuit and capacity attenuation, seriously affecting the quality and reliability of the battery.

2. Key factors in choosing a coin cell crimper

(1) crimper curling accuracy

The edge rolling accuracy is one of the important indicators for measuring the performance of the edge rolling machine. High-precision edge rolling machines can ensure that the edge rolling dimensions of battery casings are consistent, avoiding problems such as battery short circuits and leakage caused by excessive or insufficient edge rolling. When choosing a flanging machine, attention should be paid to the tolerance range of its flanging size. Generally speaking, the smaller the tolerance range, the higher the flanging accuracy. For instance, some high-end edge-rolling machines can control the edge-rolling dimensional tolerance within ±0.02mm, which can meet the production requirements of high-precision batteries.

To achieve high-precision edge rolling, the edge rolling machine needs to be equipped with advanced sensors and control systems, which can monitor and adjust various parameters during the edge rolling process in real time. Meanwhile, the design of the mechanical structure is also of vital importance. A reasonable mechanical structure can reduce vibration and errors and enhance the stability of the rolled edge.

(2) crimper rolling pressure

The crimping pressure directly affects the sealing effect of the battery. The appropriate crimping pressure can make the battery casing closely adhere to the sealing gasket, forming a reliable sealing structure. Excessive crimping pressure may cause deformation or damage to the battery casing, while too little crimping pressure cannot ensure the battery's sealing performance. Therefore, it is very important to choose an edge-rolling machine with an adjustable edge-rolling pressure function. Manufacturers can flexibly adjust the edge-rolling pressure according to different battery models and production requirements to achieve the best sealing effect.

The adjustment of the flanging pressure is usually achieved through a hydraulic system or a pneumatic system. When choosing an edge rolling machine, one should understand its pressure regulation range and accuracy, as well as the stability of pressure control. Some advanced edge rolling machines are also equipped with pressure sensors and feedback control systems, which can monitor the edge rolling pressure in real time and automatically adjust according to preset values to ensure the accuracy and consistency of the edge rolling pressure.

(3) Production efficiency

In the lithium battery manufacturing industry, production efficiency is an important manifestation of an enterprise's competitiveness. An efficient edge rolling machine can complete the edge rolling operation of a large number of batteries in a short time, improving production efficiency and reducing production costs. When choosing a curling machine, its production cycle, that is, the number of battery curling processes that can be completed per minute, should be taken into consideration. At the same time, attention should also be paid to the degree of automation of the edge rolling machine. The higher the degree of automation, the less manual intervention, the higher the production efficiency, and the more stable the product quality.

The fully automatic edge rolling machine is usually equipped with functions such as automatic feeding, automatic positioning, automatic edge rolling and automatic blanking, which can achieve continuous and efficient production.

3. Characteristics of different types of coin cell crimper

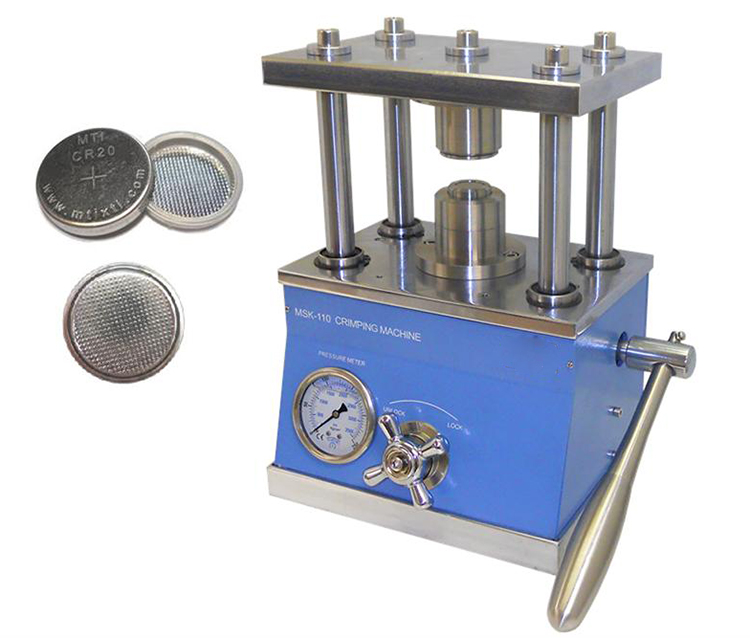

(1) Manual coin cell crimper

The manual edge curling machine is easy to operate and relatively inexpensive, making it suitable for small-batch production or laboratory research. Its working principle is that by manually operating the handle, the flanging mold is used to roll the edge of the battery casing. The advantages of manual edge rolling machines are their simple structure and convenient maintenance. However, their disadvantages include low production efficiency, poor edge rolling accuracy and consistency, and high skill requirements for operators.

(2) Semi-automatic coin cell crimper

The semi-automatic edge rolling machine adds some automated functions on the basis of the manual edge rolling machine, such as automatic feeding and automatic positioning, which improves the production efficiency and edge rolling accuracy. The operator only needs to place the battery into the feeding device, and the edge-rolling machine can automatically complete the battery positioning and edge-rolling operation. Semi-automatic edge rolling machines are suitable for medium and small batch production, but still require manual participation in some operations, such as battery loading and unloading and mold replacement.

(3) Fully automatic coin cell crimper

The fully automatic edge rolling machine realizes the full automation from battery feeding, positioning, edge rolling to discharging. It features high production efficiency, good edge rolling accuracy and consistency, and is suitable for mass production. Fully automatic edge rolling machines are usually equipped with advanced sensors, control systems and mechanical arms, which can achieve high-precision battery positioning and edge rolling operations. Meanwhile, the fully automatic edge rolling machine also features automatic detection and fault alarm functions, enabling timely identification and handling of issues during the production process. However, the price of fully automatic edge rolling machines is relatively high, and the requirements for equipment maintenance and upkeep are also relatively high.

4. Maintenance and care of the coin cell crimper

To ensure the long-term stable operation of the coin battery edge rolling machine and extend the service life of the equipment, enterprises need to regularly maintain and service the edge rolling machine.

(1) Cleaning and maintenance: Regularly clean the surface and interior of the edge rolling machine to remove dust, oil stains and debris, and keep the equipment clean and hygienic.

(2) Lubrication and maintenance: In accordance with the requirements of the equipment manual, regularly lubricate the moving parts of the edge rolling machine to reduce wear and friction and improve the operational efficiency of the equipment.

(3) Inspection and Adjustment: Regularly inspect the parameters and performance of the edge-rolling machine, such as edge-rolling pressure, edge-rolling size, production cycle, etc. If any abnormalities are found, adjustments and repairs should be made promptly.

(4) Mold maintenance: The mold of the edge rolling machine is a key component that affects the quality of edge rolling and needs to be maintained and replaced regularly. The molds should be kept clean and sharp to avoid wear and deformation.

Choosing a suitable coin cell crimper is crucial for lithium battery material and equipment manufacturers. During the selection process, key factors such as edge rolling accuracy, edge rolling pressure, production efficiency, equipment stability and compatibility should be comprehensively considered, and the appropriate type of edge rolling machine should be chosen based on the actual production needs and budget of the enterprise. By choosing high-quality edge rolling machines, enterprises can enhance the production quality and efficiency of batteries, reduce production costs, and strengthen their market competitiveness.
