Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface

Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface

Small Split Cell with Quartz Window
With-Quartz-Window
Origin: China
Warranty: 1 Year
Product description: AOT-EQ-STC-SSI-S is a small splittable test cell with optical grade quartz widow to analyze the interface of solid-state battery electrodes, mainly dendrite growth, via an optical microscope. Two s
INQUIRY

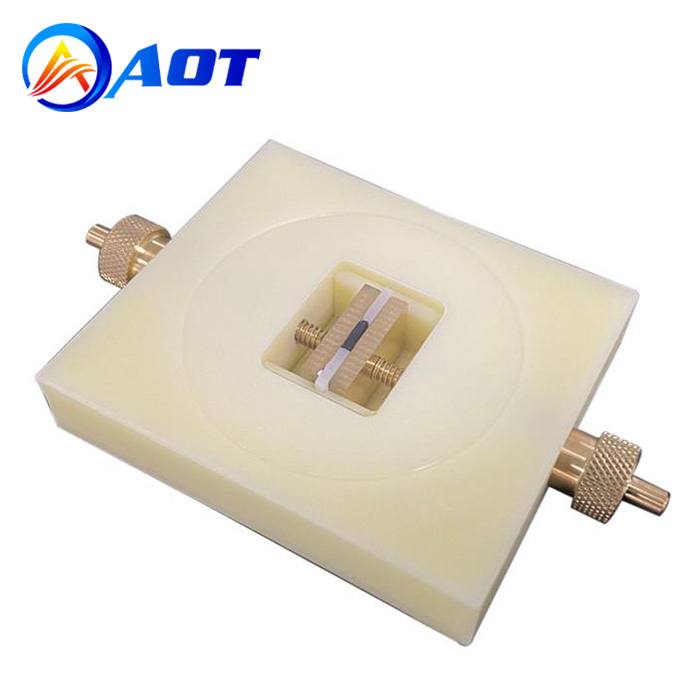

AOT-EQ-STC-SSI-S is a small splittable test cell with optical grade quartz widow to analyze the interface of solid-state battery electrodes, mainly dendrite growth, via an optical microscope.

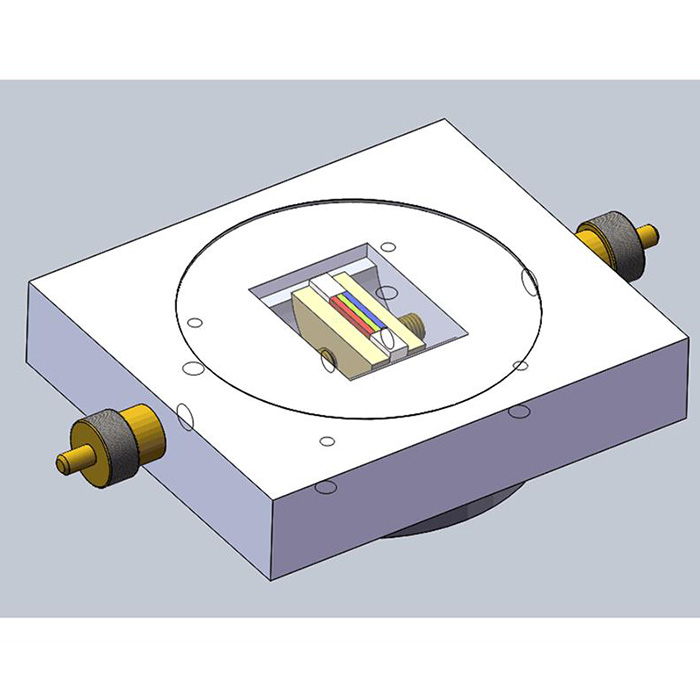

Two small plates driven by screws would press the cathode, solid electrolyte, and anode electrode together.

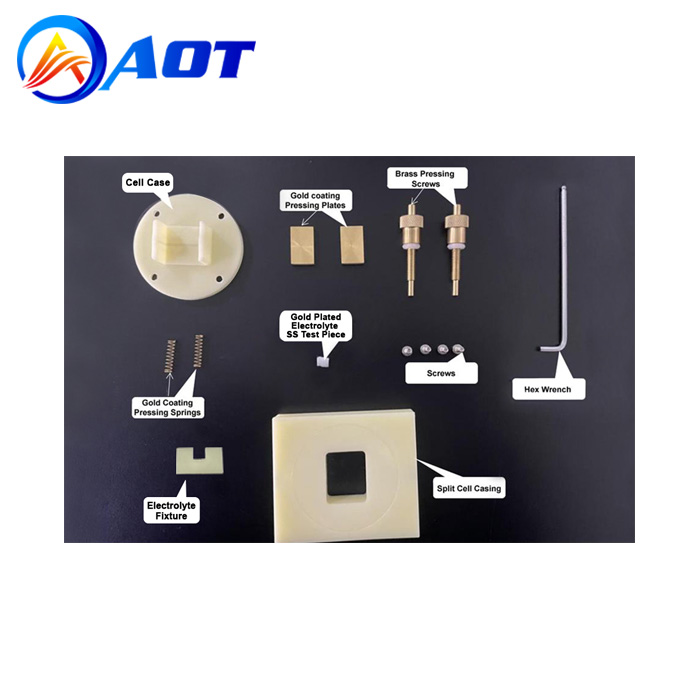

Test Cell	1. The cell case is made of Nylon 2. Sealed by the silicone O-rings which is liquid-tight and air-tight 3. Two pressing plates are made of stainless steel 304 with the gold coating 4.Two brass pressing screws for Cathode ad Anode 5. Max Force: 1500N 6. Note: May use a digital torque wrench to apply force accurately.
Quartz Observation Window	The window is made of optical grade quartz glass Diameter: 50.8 mm Thickness: 0.5 mm Most microscope lenses are compatible Only clean the glass with lens wipes.

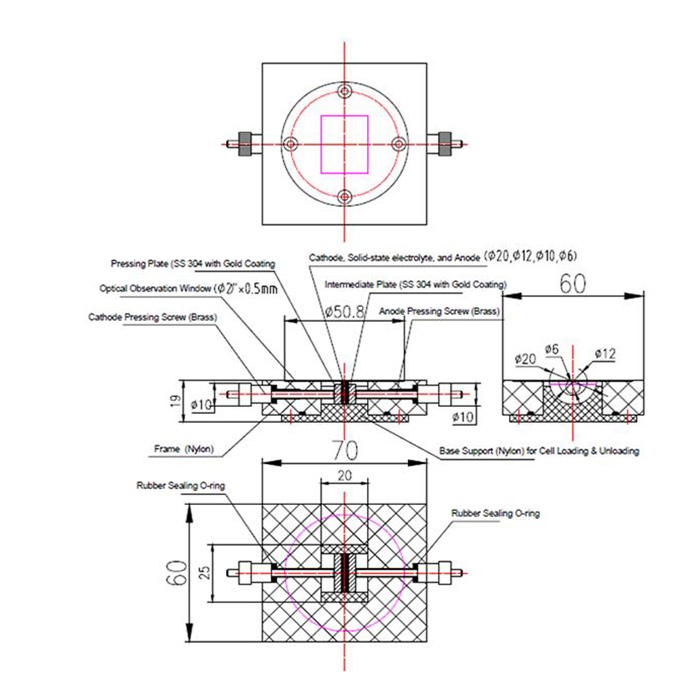

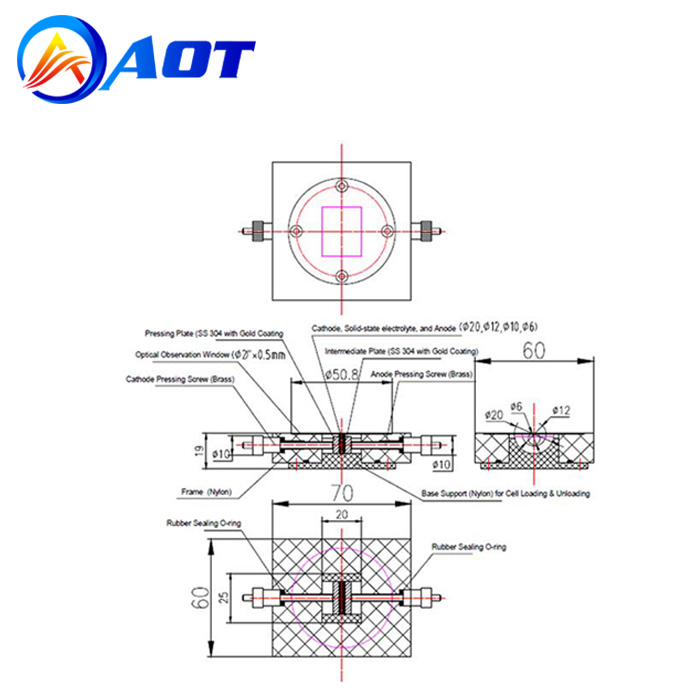

Cell Structure and Dimension	1. Cell Structure: Cathode - Solid-state electrolyte - Anode 2. Standard fixture for solid-state electrolyte: 5 mm × 5 mm × 1- 4 mm 3. Optional diameters can be 20 mm, 12 mm, 10 mm, or 6 mm
Springs	Test piece is compressed and held in place by two compression springs. Material: SUS 304 Spring Rate / Stiffness: 0.588 N/mm (60 g/mm) Dimensions when free: 4 mm OD × 3.2 mm ID × 16 mm L Length under maximum compression: 4.4 mm

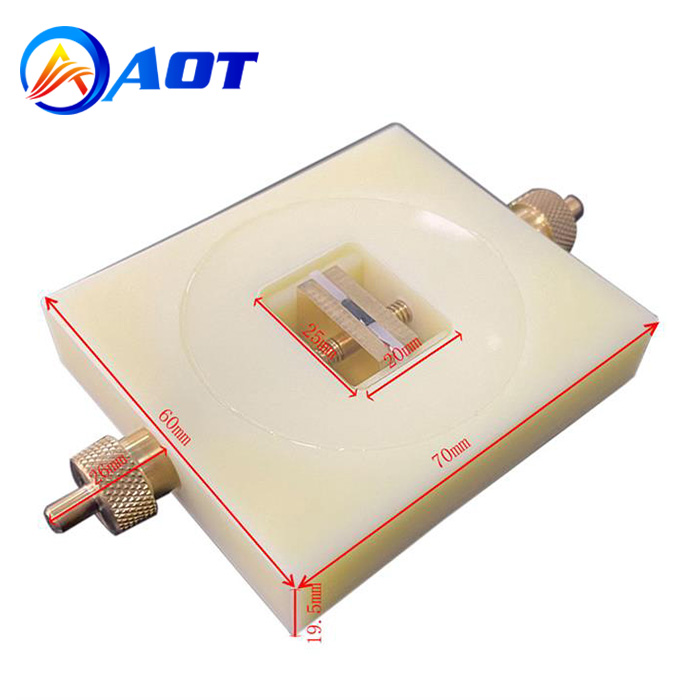

Dimensions	Assembly: 105 mm L × 60 mm W × 40mm H
Warranty	Battery Test Cells are considered consumables and are not covered by warranty
