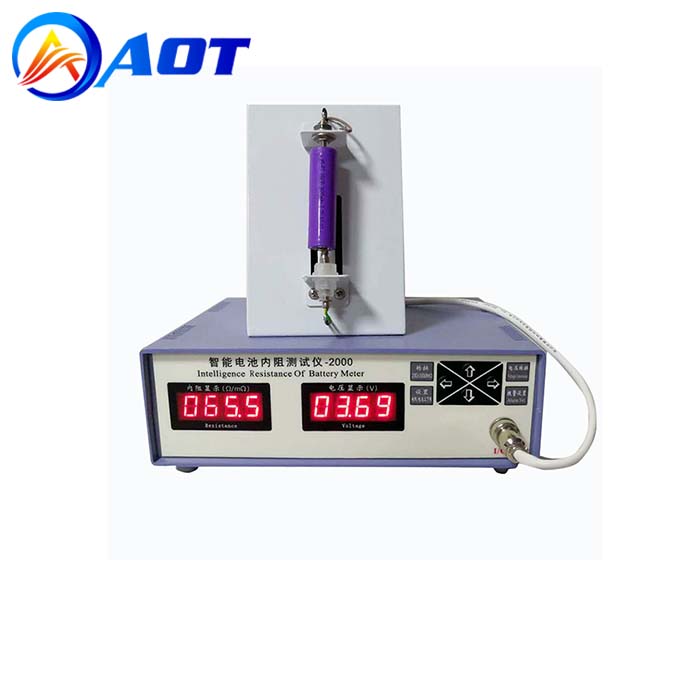

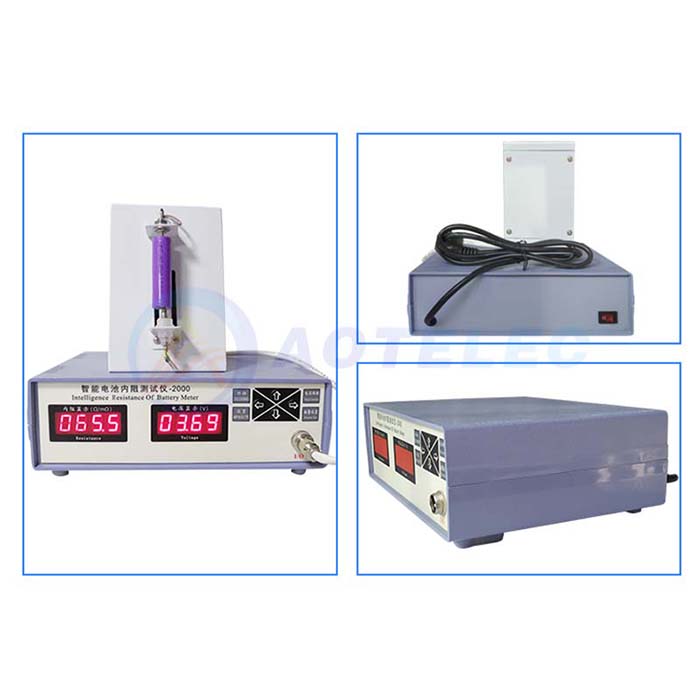

Battery Voltage and Internal Resistance Tester For lithium Battery Testing

Product Name ： Resistance tester
Model No: AOT-RT200
Feature: Easy Operation
Accuracy: ±1mΩ ±0.01V
Product description: AOT-RV200 is an instrument used to measure the internal resistance of the battery and the degree of damage to the battery acid film.
INQUIRY

AOT-RV200 is an instrument used to measure the internal resistance of the battery and the degree of damage to the battery acid film.The internal resistance value is used to judge the deterioration state of the battery. Therefore, the method of detecting the battery by measuring the internal resistance is a good method with high speed and high reliability.

*Human misjudgment and misreading are completely eradicated
*Can set the range of test parameters
*Can also measure the resistance of active object
*The tesing is not only fast but also highly reliable.

Product Name	Resistance tester
Model No.	AOT-RT200
Scope of application	Lithium ion, lithium polymer batteries and finished batteries
	Ni-MH and Ni-Cd batteries
	Lead-acid batteries and maintenance-free batteries
	It is also applicable to scientific research units and manufacturers of various battery research and testing
Measuring range	internal resistance 2-200mΩ/voltage 0-19.99V
Resolution	0.1mΩ/0.01V
Measuring time	100mS
Accuracy	±1mΩ ±0.01V
