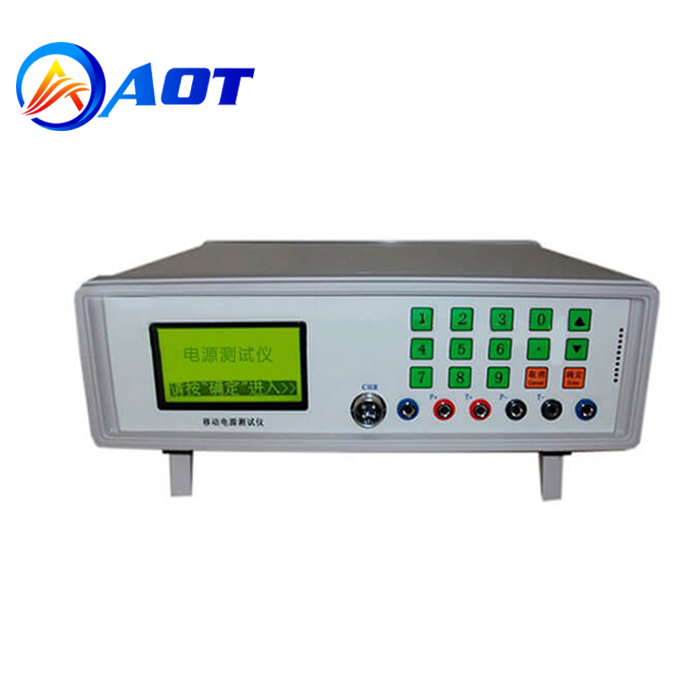

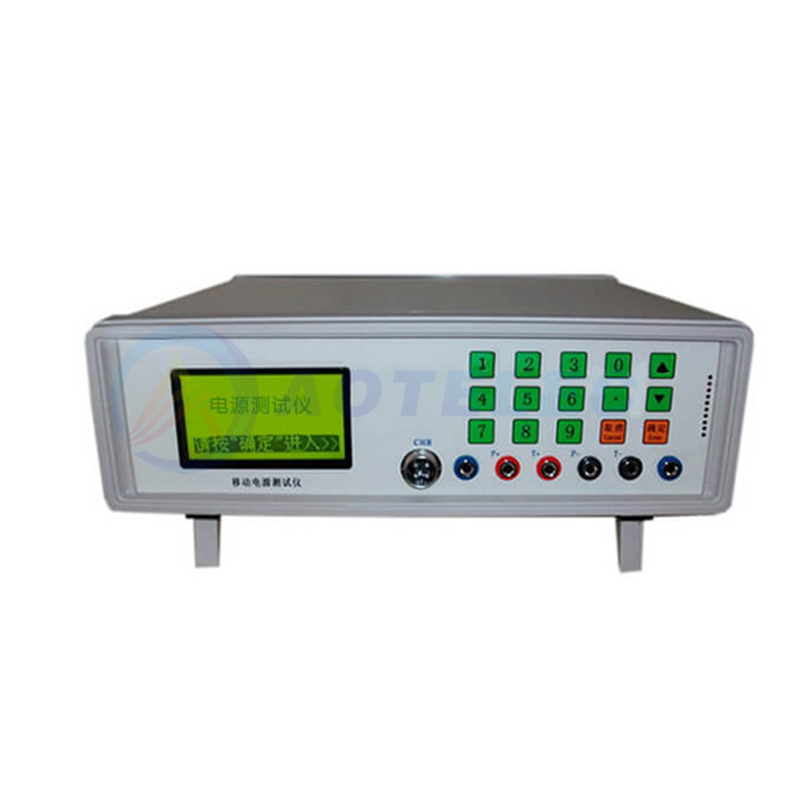

Power Bank Battery Load Tester For Testing Voltage Current Capacity

Product name: Power Bank Tester
Application: Power bank tester test voltage current capacity
Function: For Testing Power Bank Voltage Current Capacity
Model Number: AOT-V125
Product description: Mobile power supply tester AOT-V125 is designed high precision tester instrument for mobile phone (mobile power supply charging PO) production and research.
INQUIRY

Power Bank Battery Load Tester For Testing Voltage Current Capacity

SPECIFICATIONS：

1 Mobile power supply tester AOT-V125 is designed high precision tester instrument for mobile phone (mobile power supply charging PO) production and research.

2 The power bank tester can test power supply load voltage, charge and discharge current, the protection function,USB discharge end voltage etc. performance parameters to filter the power bank.

3 It is very suitable for mobile power bank supplier assembly line mass rapid detection.

4 The power bank tester can also suitable for power bank wholesaler to detect the power bank quality.

Machine model	Power bank tester test voltage current capacity
Open circuit voltage V1	Output voltage of the power of the no load condition. Range : 0-10V
Min load voltage V2	A voltage with a relatively small load current power supply. Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V
Middle load voltage V3	A voltage with a relative moderate load current power supply Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V
Max load voltage V4	A voltage with a relatively large load current power supply Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V
Charge current	Test the charge current for the power bank on a set voltage. Range : Current : 50-5000mA, Time : 0-9999mS, Voltage : 0-10V
Short circuit protection time	In the case of short circuit, reaction time of power bank on short circuit protection function. Range : Time : 0-9999mS
Short circuit recovery	Power on short circuit protection within the prescribed period of time whether to have the function of recovery voltage.
Auto test mode	Suitable for power bank can output voltage automatically
Manual test mode	Suitable for power bank power output voltage needing press switch
A B Test mode	Suitable for power bank with two output.
Over discharge current	Protect current. Range : 0-10A
Dimension	290270100mm
Weight	5kg
Warranty	One Year limited warranty with lifetime support
