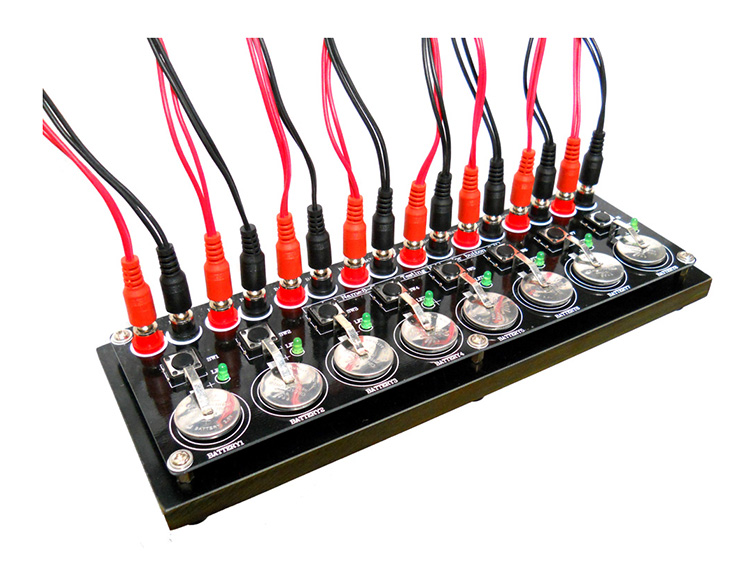

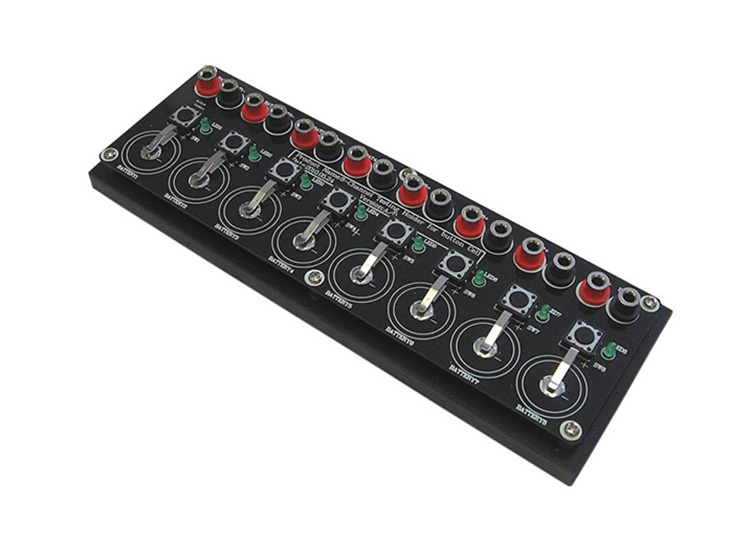

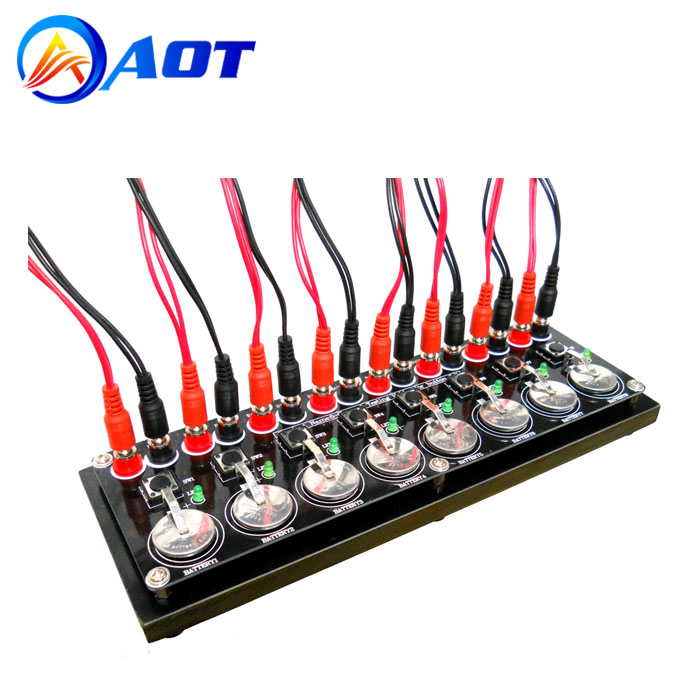

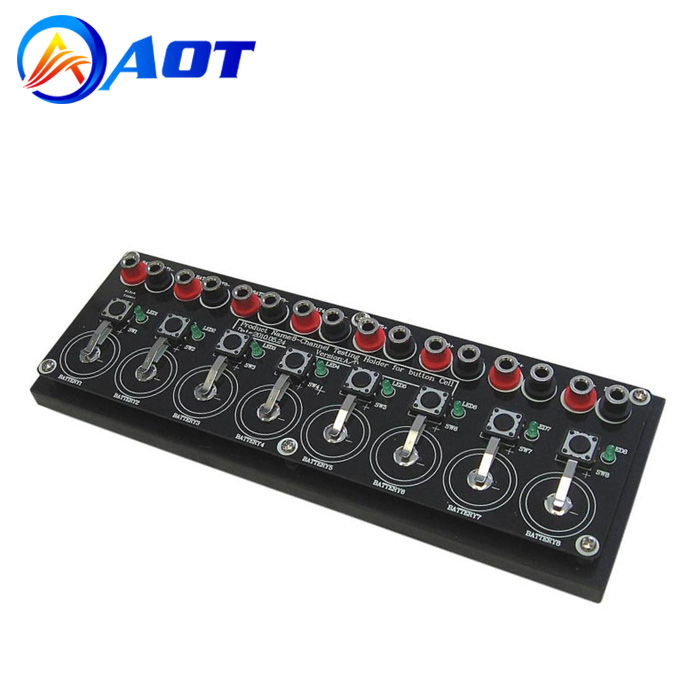

8 Channels Button Cell Testing Clips Test Board for Coin Cell Analyzers

8 cables with optional connectors are included in the standard package for immediate use the connectors to the board are the banana plug for easy insertion and removal, the diameter of the eight round plugs of the Testing Board are around 4 mm. , the Banana Plug of the cable are 4mm banana plug, Max wire diam.4.2mm

Another end or of connector testing system are optional connectors (choose the right one for you from above "connector type" when order) 4-pin bayonet connectors, 4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing system.

Built-in battery polarity check light will be on when right place the coin cell and press down the check button, can test coin cell with diameter up to 25mm and compatible with most of the popular coin cell size, like CR2016, CR2032, CR2325, and CR2450
