5V20mA Coin Cell Battery Tester for Lab Button Battery Analyzing

Model: AOT-BTS-5V20mA
Origin: China
Type: Dual Range Testing
Usage: Battery Analyzing
Product description: The Coin Cell Tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on. For battery charging, battery discharging, battery cycles, ba
INQUIRY

5V20mA Button battery tester for Analyzing Coin Cells

Description:

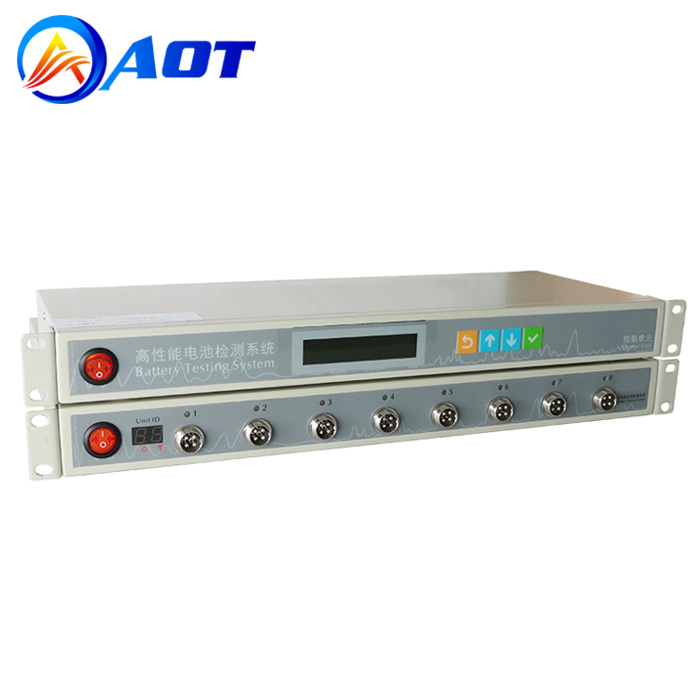

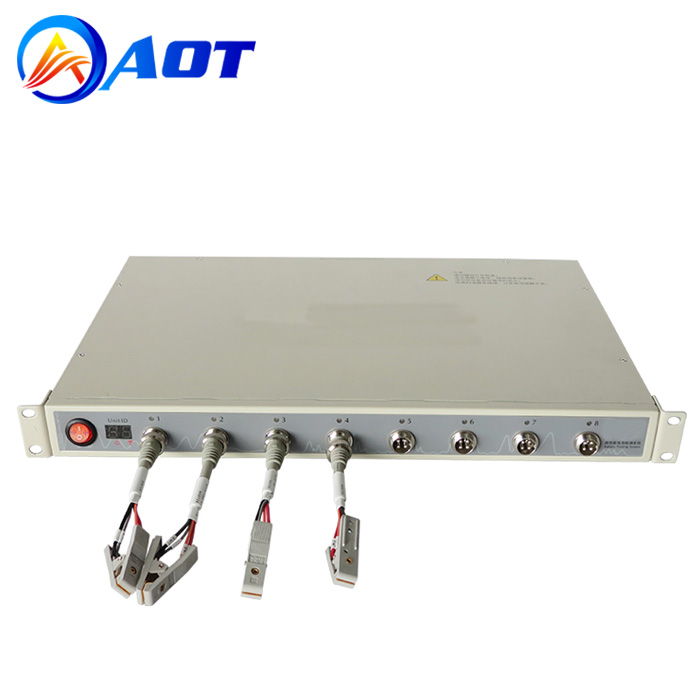

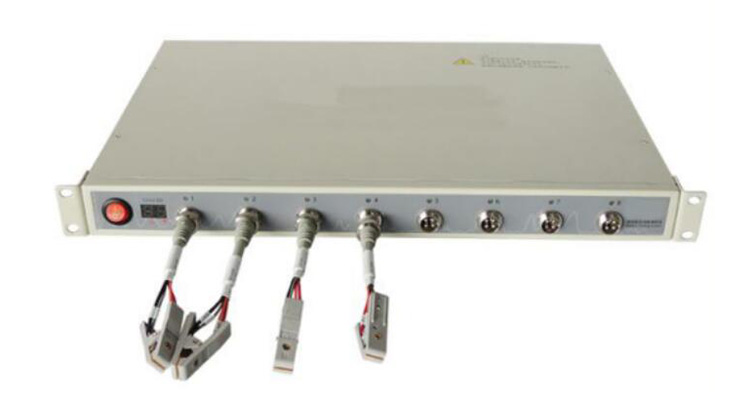

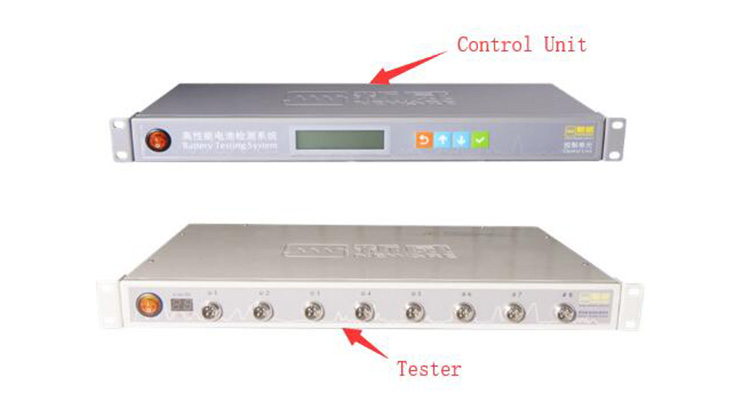

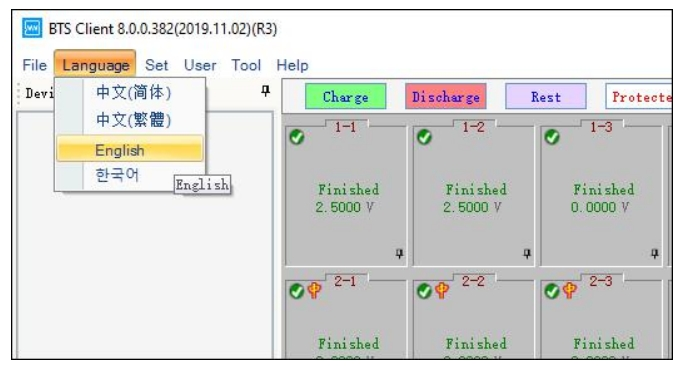

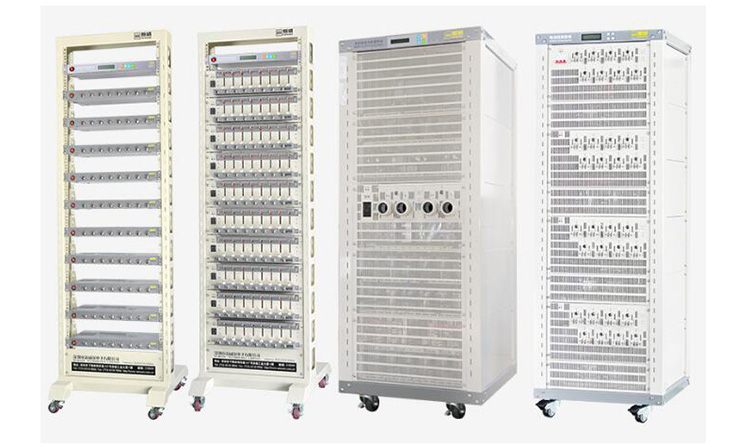

1 5V20mA Button Battery Tester is an eight-channel battery analyzer to test small coin cells with a range current 0-10mah, voltage 0-5v. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.

2 This Button Battery Tester provides most applications in battery testing fields such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.

3 The Coin Cell Tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on. For battery charging, battery discharging, battery cycles, battery DC resistance testing.

Specifications:

Item		Technology parameters
Model		AOT-BTS-5V20mA Coin cell tester
Input Power		AC 220V ±10% 50Hz
resolution		AD：16bit；DA：16bit
Input Resistance		≥10 GΩ
Input Power		25W
Voltage	Constant Voltage Range	25mV~5V
	Discharge Min Voltage	0V
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Current	Per Channel Current Range	Range1:5uA-1mA;Range2:1mA-10mA; Range3:10mA-20mA
	Accuracy	± 0.05% of FS
	Constant voltage cutoff current	Range1：4uA；Range2：40uA
	Stability	± 0.05% of FS
Power	Per Channel Output Power	0.05W
Power	Stability	± 0.1% of FS
Time	Current Response Time	1ms (0-Full Range)
Time	Step Time Range	≤(365*24 )hour/step， Time Form Support 00：00：00(h、min、s、ms)
Data Recording	Record Condition	Minimum Time Interval: 100ms
		Minimum Voltage Interval: 10mV
		Minimum current interval：Range1：4uA；Range 2：40uA
	Record Frequency	10Hz
Charge	Charge Mode	Constant Current Charge、Constant Voltage Charge、 Constant Current and Constant Voltage Charge、CPC
Charge	End Condition	Voltage, current, relative time, capacity -△V
Discharge	Discharge Mode	CCD、CPD、CRD
Discharge	End Condition	Voltage、Current、Relative Time、Capacity -△V
Pulse	charge	CCC, CPC
	Discharge	CCD, CPC
	Min Pulse Width	500ms
	Pulse number	A single pulse step supports 32 different pulses
	Automated Switch	Automated switch from charge to discharge for each pulse
	End Condition	Voltage, Test Time
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function，Max Support 3 Layers
Protection	Software Protection	Power-down Data Protection
		Off-line Testing Function
		Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
DCIR testing		Support

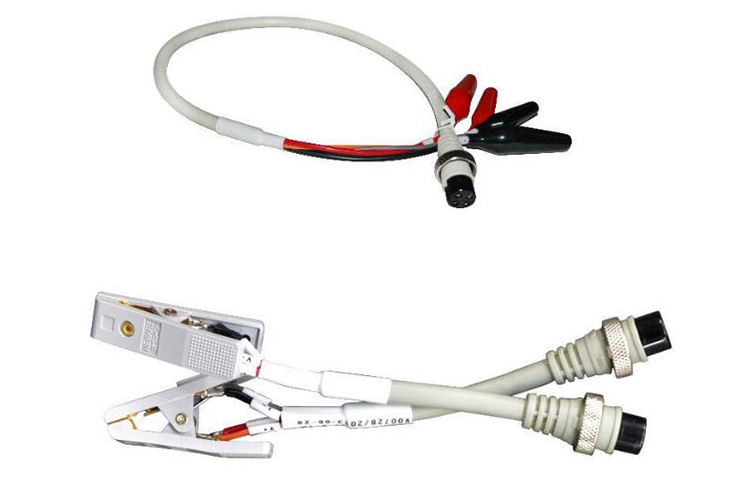

Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Data Output		EXCEL、TXT、Graph
Communication Interface		Ethernet Port
Per Unit Main Channels No.		8
Dimensions		25020060(mm)
