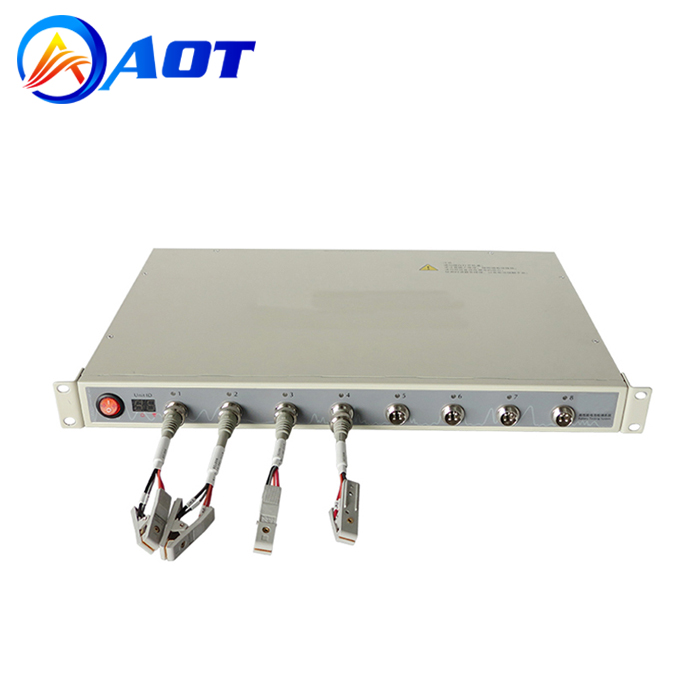

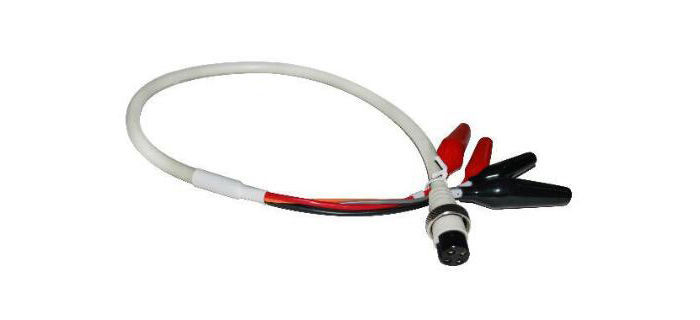

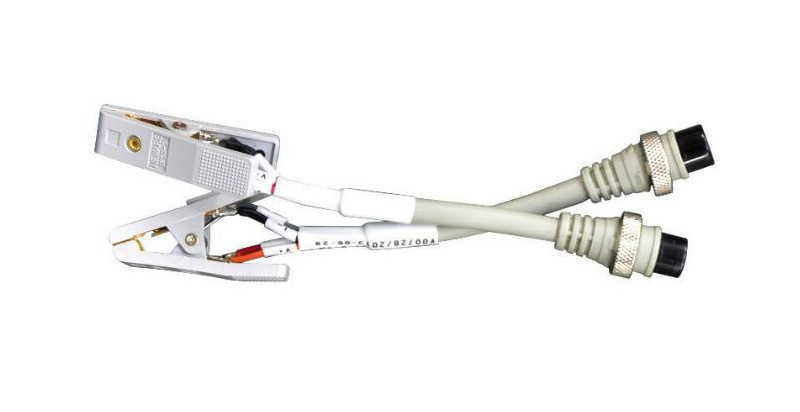

5V10mA Lab Coin Cell Battery Tester with Optional Clamps

Model:AOT-BTS-5V10mA
Testing Range1: 5uA-1mA
Testing Range2: 1mA-10mA
Channels: 8 Independent
Product description: This is an 8 channels 5V10mA Lab Coin Cell Battery Tester with optional clamps, for lithium ion battery discharging, discharging, capacity and cycle testing.
INQUIRY

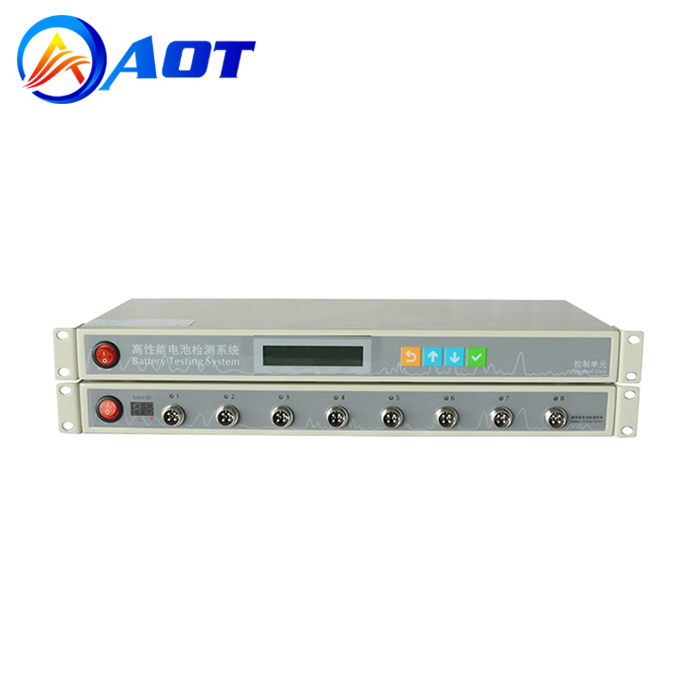

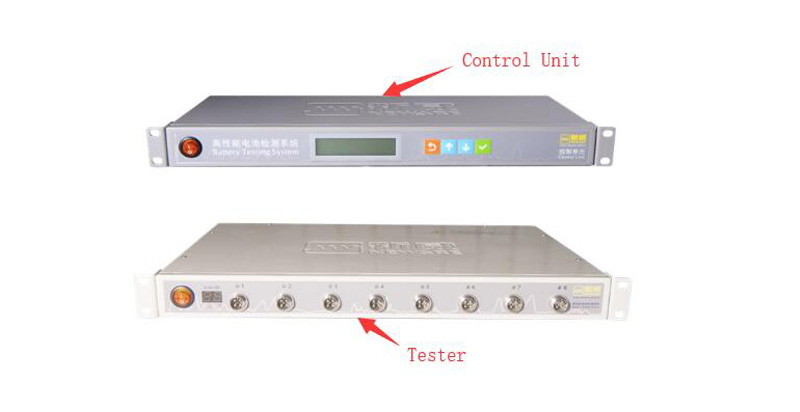

5V10mA Lab Coin Cell Battery Capacity Tester with Clamps

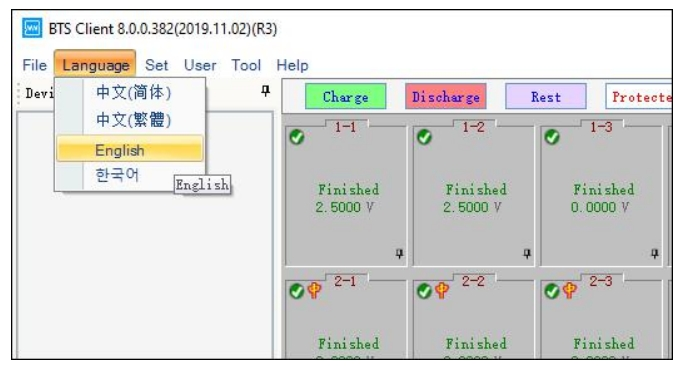

It is an eight-channel battery analyzer to analyze small coin cells from 0.001 mA to 10 mA, up to 5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.

This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, etc.

Item		Technology parameters
Model		AOT-BTS-5V10mA Coin Cell Tester
Input Power		AC 220V ±10% 50Hz
resolution		AD：16bit；DA：16bit
Input Resistance		≥10 GΩ
Input Power		25W
Voltage	Constant Voltage Range	25mV~5V
	Discharge Min Voltage	0V
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Current	Per Channel Current Range	Range1:5uA-1mA;Range2:1mA-5mA;Range3:5mA-10mA;
	Accuracy	± 0.05% of FS
	Constant voltage cutoff current	Range1：2uA；Range2：0.02mA
	Stability	± 0.05% of FS
Power	Per Channel Output Power	0.05W
Power	Stability	± 0.1% of FS
Time	Current Response Time	1ms (0-Full Range)
Time	Step Time Range	≤(365*24 )hour/step， Time Form Support 00：00：00(h、min:s、ms)
Data Recording	Record Condition	Minimum Time Interval: 100ms
		Minimum Voltage Interval: 10mV
		Minimum current interval：Range1：2uA；Range 2：0.02mA
	Record Frequency	10Hz
Charge	Charge Mode	Constant Current Charge、Constant Voltage Charge、 Constant Current and Constant Voltage Charge、CPC
Charge	End Conditon	Voltage, current, relative time, capacity -△V
Discharge	Discharge Mode	CCD、CPD、CRD
Discharge	End Condition	Voltage、Current、Relative Time、Capacity -△V
Pulse	charge	CCC, CPC
	Discharge	CCD, CPC
	Min Pulse Width	500ms
	Pulse number	A single pulse step supports 32 different pulses
	Automated Switch	Automated swith from charge to discharge for each pulse
	End Condition	Voltage, Test Time
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function，Max Support 3 Layers
Protection	Software Protection	Power-down Data Protection
		Off-line Testing Function
		Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
DCIR testing		Support
Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Data Output		EXCEL、TXT、Graph
Communication Interface		Ethernet Port
Per Unit Main Channels No.		8
Dimensions		25020060(mm)
