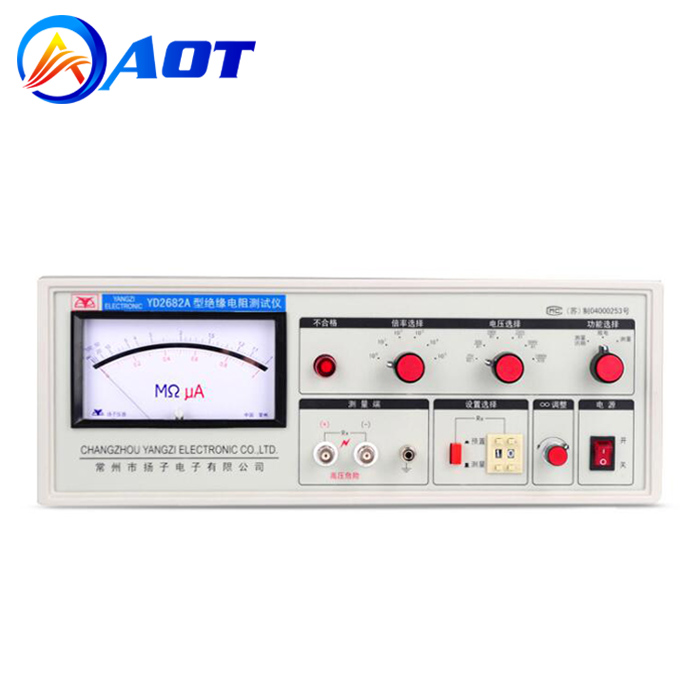

Battery Short Circuit Tester Machine for Cylinder Cell and Pouch Cell

  • Model: AOT-BSCT-YD2681A
  • Resistance Range:10^5Ω-10^13Ω
  • Testing Range: Manual Set
  • Sorting function: Pass and Fail, Fail Alarm
  • Product description: Battery Short Circuit Tester for testing the accidental short between anode and cathode after final sealing of pouch and cylinder cell. 1 Simple operating, directly display result 2 Fast test speed,
  • INQUIRY

Battery Short Circuit Tester For Not Charging Semi-Finished Battery Core Checking Out


SPECIFICATIONS



Testing the accidental short between anode and cathode after final sealing of pouch and cylinder cell.

1 Simple operating, directly display result

2 Fast test speed, large resistance range

3 Overrun audible and visual alarm

4 General insulation resistance tester



Model

Battery Short Circuit Tester AOT-BSCT-YD2681A

Source voltage

AC 198V-242V / 47.5-52.5HZ

Warranty

One year limited with lifetime support

Voltage test

DC 0-15V, Resolution 10mv

Resistance range

10^5Ω-10^13Ω

Resistance test accuracy

R<10^12Ω 5% R≥10^12Ω 10%

Display

Mirror header indicating

Testing range setting

Manual

Sorting Function

Pass and Fail-Alarm

Testing speed

Resistive component≤0.5 second; Capacitive component 0.5s-10s

Using Condition

Temp: 0-40℃; Humidity:≤80% RH

Dimension

380*140*320mm

Weight

7kg

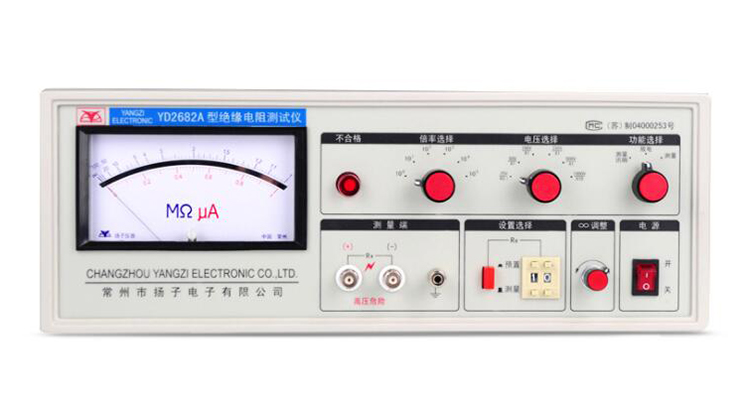

Battery Short Circuit Tester AOT-BSCT-YD2681A
