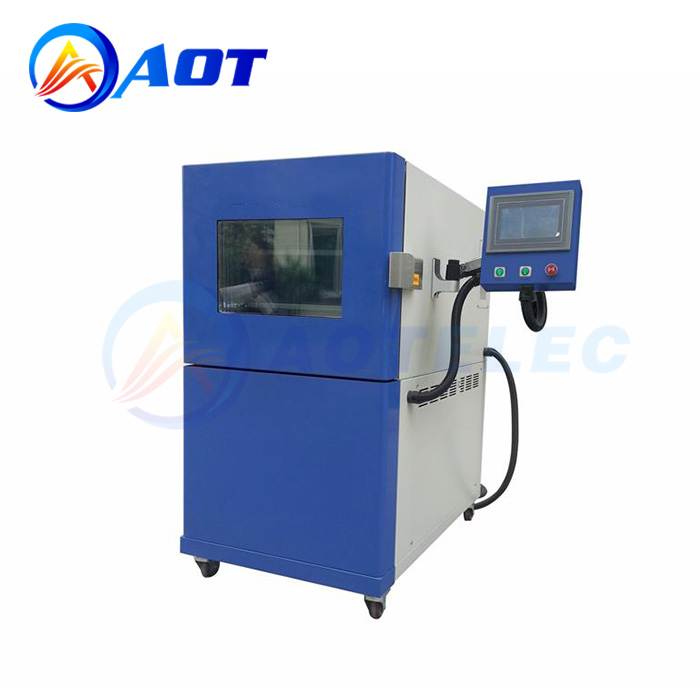

80L Programmable Fast Thermal Test Chamber For Battery Pack

80L Programmable Fast Thermal Test Chamber For Battery Pack

  • Product Name: Test Chamber
  • Control Panel: Touch Screen
  • Keyword: Thermal Test Chamber
  • Origin: China
  • Product description: AOT-MSK-TE906-80L is an 80-liter Programmable Thermal Test Chamber for the thermal test of Rechargeable Battery & Battery Pack according to UN38.3 (38.3.4.2) and other thermal tests from -75ºC to +15
  • INQUIRY

AOT-MSK-TE906-80L is an 80-liter Programmable Thermal Test Chamber for the thermal test of Rechargeable Battery & Battery Pack according to UN38.3 (38.3.4.2) and other thermal tests from -75ºC to  +150ºC at faster heating and cooling.

SPECIFICATIONS

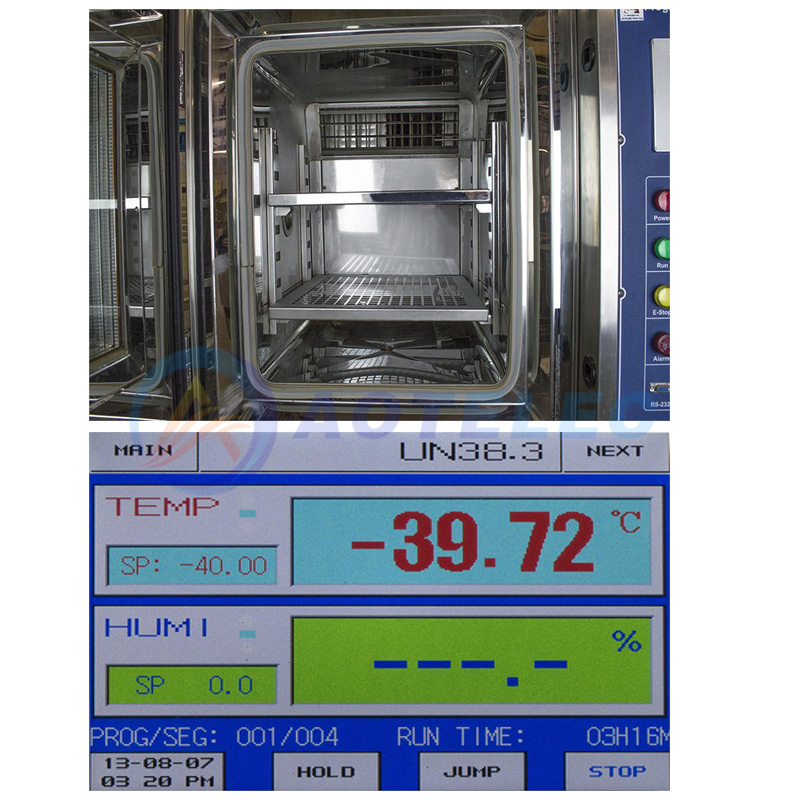

Test Chamber Features

. Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass.

. Inside dimensions: 400 W x 500 H x 400 D (mm)

. Outside dimensions: 700 W x 1310 H x 1070 D (mm)

. Window: 220 x 280 x 40 (mm), 4 layers vacuum sealed

. Capacity: 80 Liters

Control Panel

. 6" touch-screen control panel to set up the program, and display temperature profile

. 1200 segments programmable, and each program can be repeated up to 999 times

. RS232 port and software are included to allow PC remote operation

Cooling & Heating System

. Refrigerant R404A, environmental friendly

. Stainless heater tube

. Built-in beep alarm for over-heated and over-current

. Working Temperature: Programmable from -75ºC  to +150ºC

. Temperature accuracy: +/- 1ºC

. Max. Heating rate: 5ºC/min

. Max. Cooling rate: 5ºC/min

Power

. Voltage: 208 - 240VAC (three-phase, 50 or 60 Hz selectable)

. Current: 21 A Max.

. Power: 8 KW Max.

Machine Dimensions

& Weight

980 x 1590 x 910 mm

230kg
