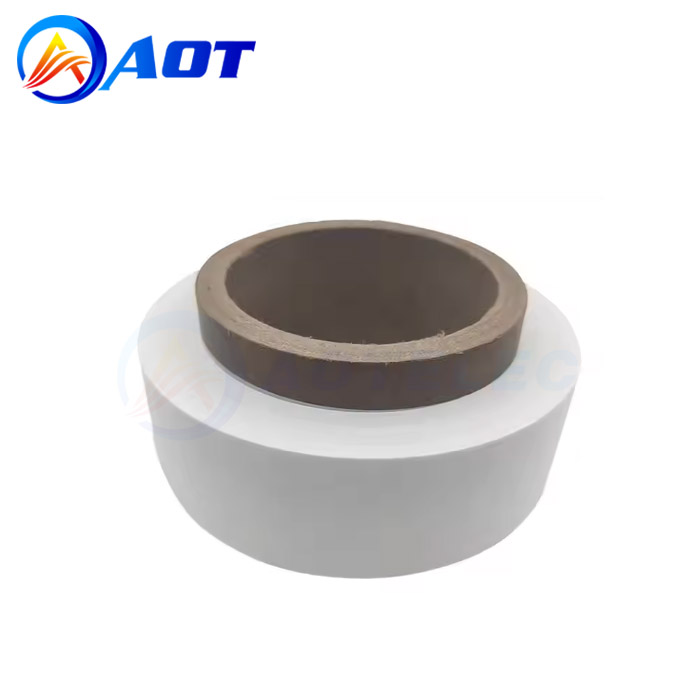

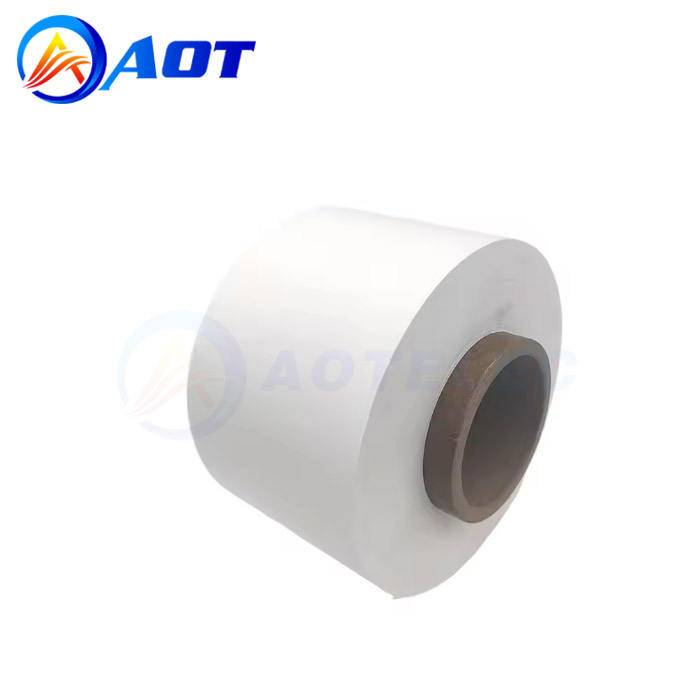

12+2um single-sided ceramic-coated separator (PE base film + alumina coating)

Product Name:single sided ceramic coated separator
AOT-XR-12-2
Brand Name. AOT
Product Orgin:China
Product description: single sided ceramic coated separator features high thermal stability, low thermal shrinkage rate and high wettability with electrolytes.
INQUIRY

The single-sided ceramic-coated separator is a component applied in fields such as lithium batteries. It involves coating one side of the separator with ceramic particles such as zeolite or alumina, with a coating thickness typically of around 2 microns. This separator features high thermal stability, low thermal shrinkage rate and high wettability with electrolytes, which can enhance the safety performance and discharge power of lithium batteries.

Product model				AOT-XR-12-2
Serial number	Test items			Testing tools, instruments and equipment	Parameters
1	Appearance	Other appearances		Visual estimation	The surface is smooth, the winding is neat, and there are no wrinkles, dirt or other defects
2	Slit width (mm)			Caliper	+0.5
3	Thickness (um)			Micrometer	14.0±2.0
4	Surface density (g/m ²)			Electronic balance	10.0±2.0
5	Air permeability (sec/100cc)			Air permeability tester	200±50
6	Porosity of the base film (%)			Micrometer, electronic balance, air permeability tester	43±5
7	Needle-puncture strength (gf)			Electronic universal testing machine	≥500
8	Tensile strength (kgf/cm ²)		MD	Electronic universal testing machine	≥1500
			TD
9	Thermal contraction		MD	Oven, ruler	≤2.0%
			TD		≤1.0%
10	Outer packaging			The inner part is sealed in a transparent white sealed plastic bag. The pallets and central paper tubes are suspended and fixed. The outer part is packed in a cardboard box. The outer box is marked with the model, quantity, shipping date, etc.
Precautions				Handle with care to avoid hitting hard objects and damaging the diaphragm. The unused diaphragm must be put back into the plastic bag for storage. The storage temperature should be 25+5℃ and the humidity should be 50%.

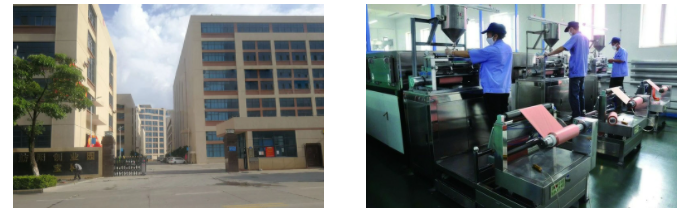

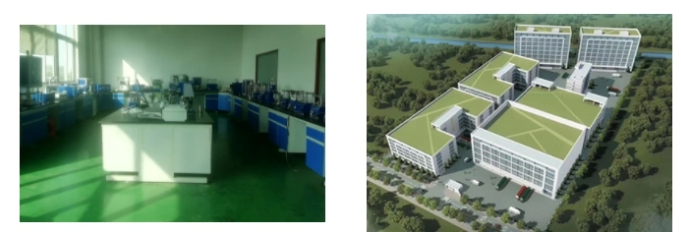

Company Profile

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate


Cooperative Partner

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
