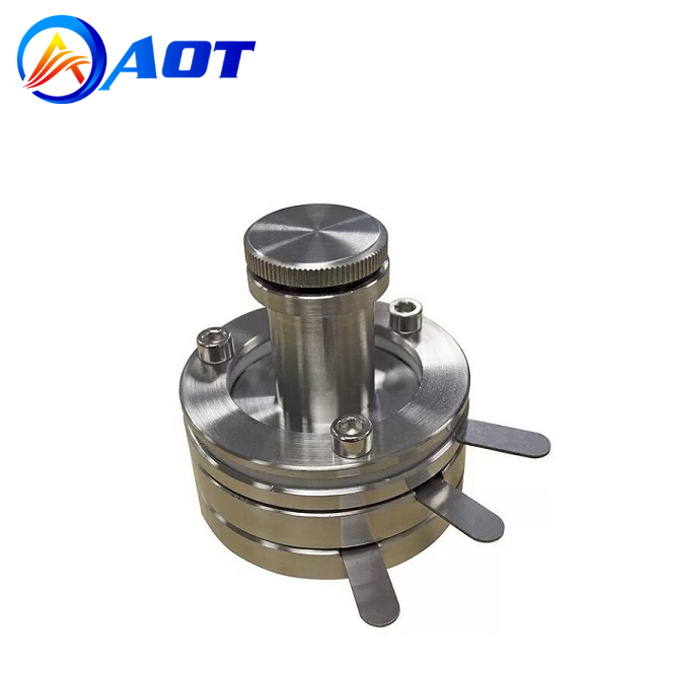

Three-Electrode Split Test Cell for Lab Battery Research

Model: AOT-STC-3
Origin: China
Electrode: 15 mm Diameter Cell
Usage: Battery Analyzing
Product description: Split-able test cell is designed for R&D of rechargeable battery materials by testing three electrodes. It is designed to test various electrodes easily and quickly by providing the user a structure t
INQUIRY

Three-Electrode Split Test Cell for Lab Battery Research

The AOT-STC-3 split-able test cell is designed for R&D of rechargeable battery materials by testing three electrodes. It is designed to test various electrodes easily and quickly by providing the user a structure to simulate assembled coin cells without the need to crimp actual coin cell cases. Two sides of the test cell connect to both electrode (the anode and cathode), with the middle being connected to the reference electrode which can be used for monitoring voltage variations of the two electrodes. This test cell can accept 15 mm diameter electrodes and 24mm separators.

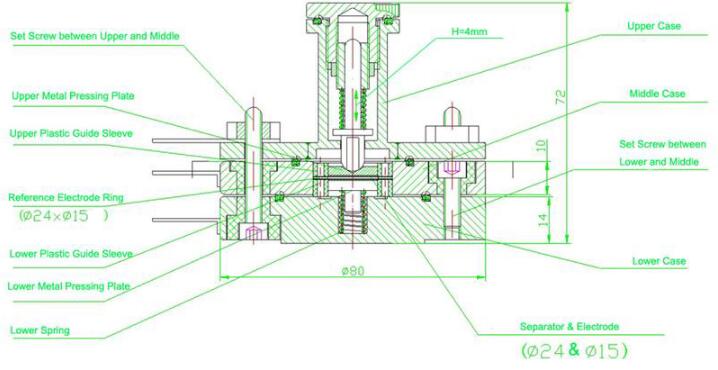

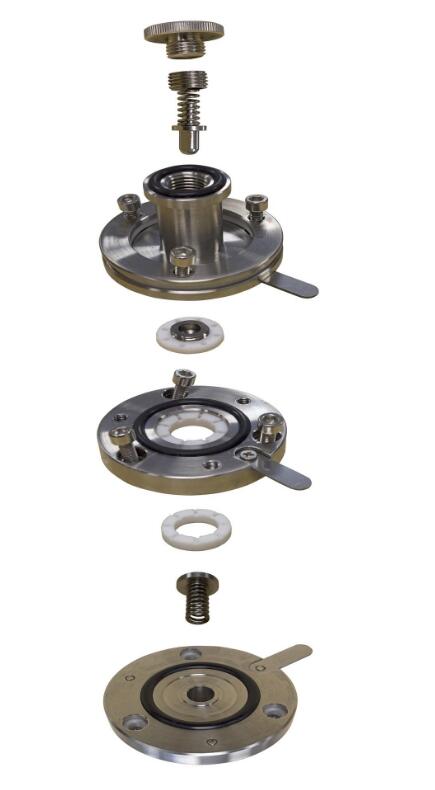

Structure

Full stainless steel (Stainless Steel 304)

Features

24 mm diameter insert

Sealed by electrolyte corrosive-proof PTFE O-rings

Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250ºC

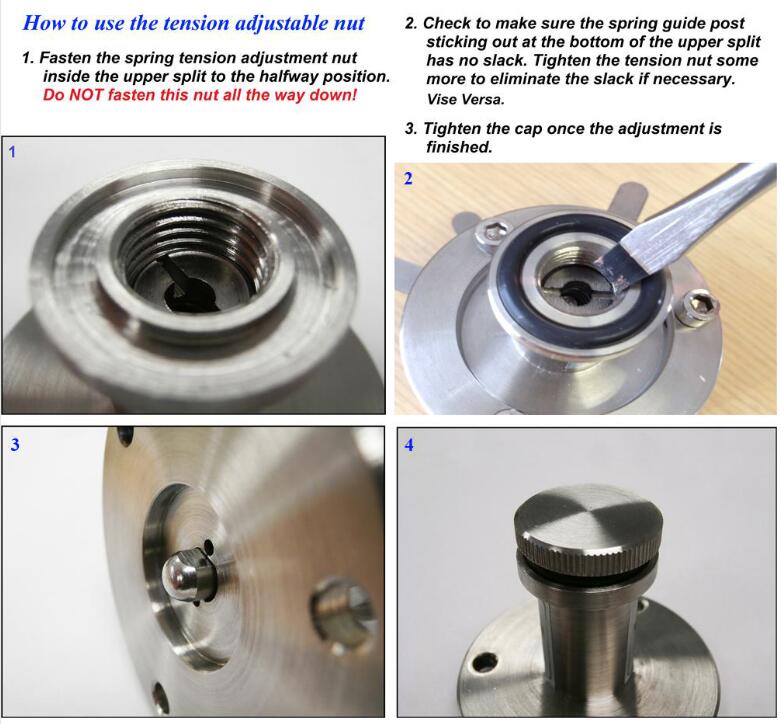

Adjustable spring tension on top to accept various electrode thicknesses

Easy to separate after testing

Small enough to be put into and taken out from a glove box

Three electrode split test cell split test cell AOT-STC-3
