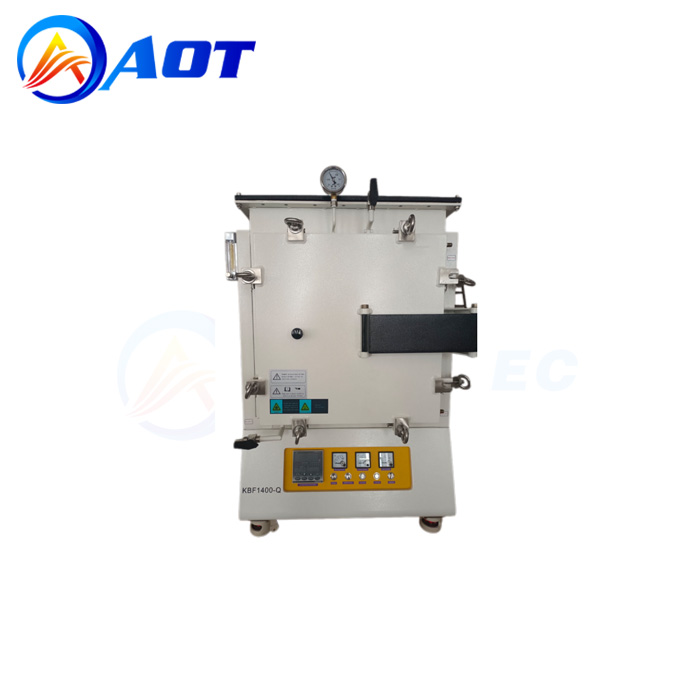

Product Introduction:

 1. Open door protection system: the Furnace is equipped with a travel switch. When the furnace door is opened, the power supply will be automatically cut off, effectively ensuring the safety of users.

2. Sealing system: the furnace top cover and furnace door (other places have been welded) are using silicone O-ring extrusion seal, easy removal, repeatable removal, good air tightness, can ensure that the 8-hour pressure gauge pointer does not deflection.

3. Vacuum system (purchase): it can be pre-vacuum for the atmosphere box furnace to accelerate the cleaning of the air in the furnace.

4. furnace material: using furnace material imported from Japan, do not drop powder, material thermal insulation performance, high reflectivity, temperature field balance, resistance to heat rise and cooling shrinkage ability is strong.

5. heating elements: all using imported resistance wire, long service life.

6. leakage protection function: the furnace is equipped with leakage air switch, when the furnace body leakage automatically power off, to ensure the safety of use nature.

7. Use the Yudian program temperature control instrument

    1).  30-section program temperature control intelligent PID adjustment.

2). with the over temperature protection when the over temperature or break protection, (when the temperature of the electric furnace exceeds 1220 degrees or the thermocouple is off, the AC relay on the main circuit will be automatically disconnected, the main circuit is disconnected, the ON lamp on the panel is OFF, the limited protection electric furnace).

3). With the function of power off protection, that is, when the power is cut off and the power is started, the program does not rise from the starting temperature, but from the furnace temperature when the power is cut off.

4). The instrument has the function of temperature self-setting.
