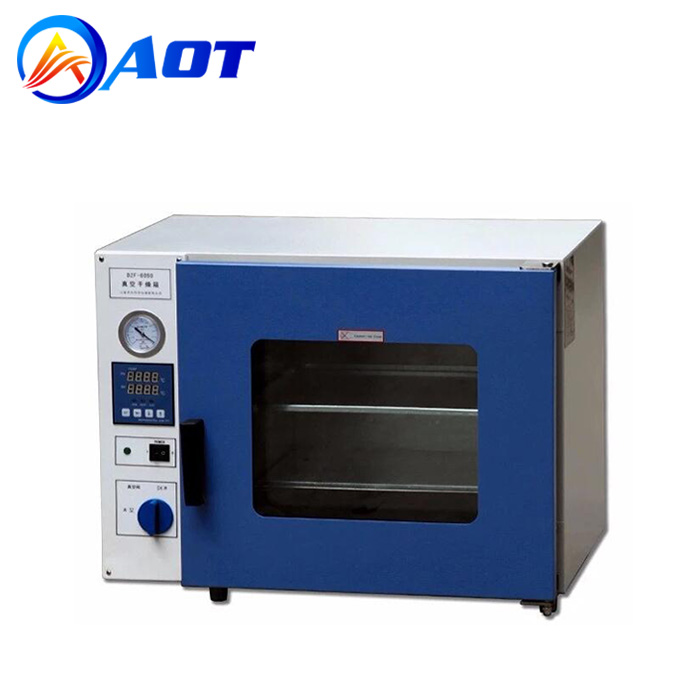

Small Lab Vacuum Drying Oven Electric Heating Chamber DZF-6050

Model: AOT-DZF-6050
Material: 304 Stainless Steel
Inner size: 415*345*370mm
Temperature: RT+10-250℃
Product description: This Vacuum Drying Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core drying. Vacuum pump is optional.
INQUIRY

Lab Electric Heating Vacuum Oven DZF-6050 with Optional Pump

This Vacuum Drying Oven is mainly used for scientific research units, specialty universities, laboratories, industrial mining enterprises etc. and production field for materials drying and heat treatment under the vacuum state.

The product is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers’disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.

Vacuum Lab Oven for battery material heating drying under vacuum states has advantages :

1. It can short the drying temperature process

2. Avoid heating to oxidation

3. Avoid heating air to kill living cells

4. There is no dust damage

Specifications

Model	DZF-6050 Vacuum Drying Oven
Source voltage	AC 110VAC or 220V 50Hz/60Hz
Power	1400W
Warranty	One Year Limited Manufacture Warranty with Life Time Support
Temperature range	RT+10-250℃
Temperature fluctuation	±0.5℃
Vacuum degree	-0.1MPa
Volume	50L
Inner box size(LWH)	415345370mm
Dimension(LWH)	730560550mm
Temperature controller	1 High precision microcomputer temperature controller, accurate temperature control 2 Working temperature can be set and working time can be set for 0-9999min. 3 When time reach, sound alarm, and when any error, also alarm. function
Inner box material	304 stainless steel
Outside shell material	High quality cold-rolled steel plate electrostatic spray
Box door	Toughened bulletproof double glass door
Safety device	With over temperature protection, grounding etc
Shelf	2pcs 1 Solid stainless steel shelf, guarantee the oven temperature 2 Mesh stainless steel shelf can be also chosen
