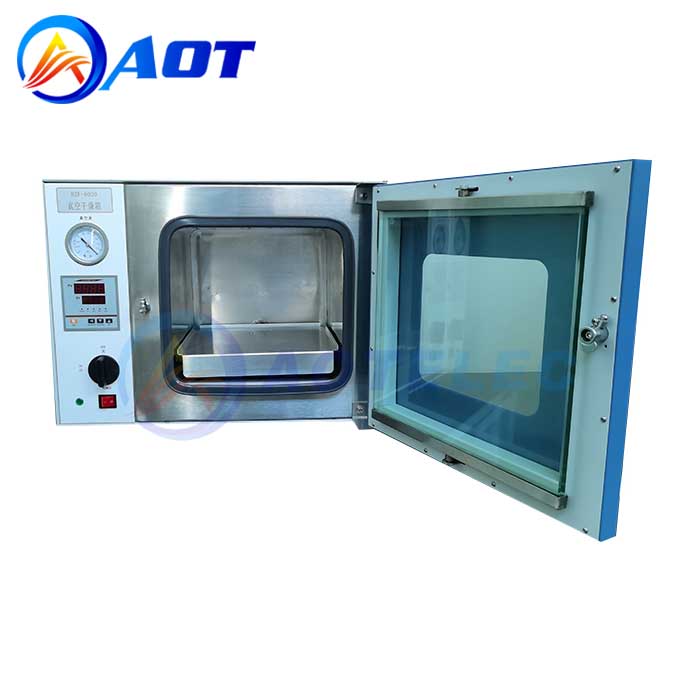

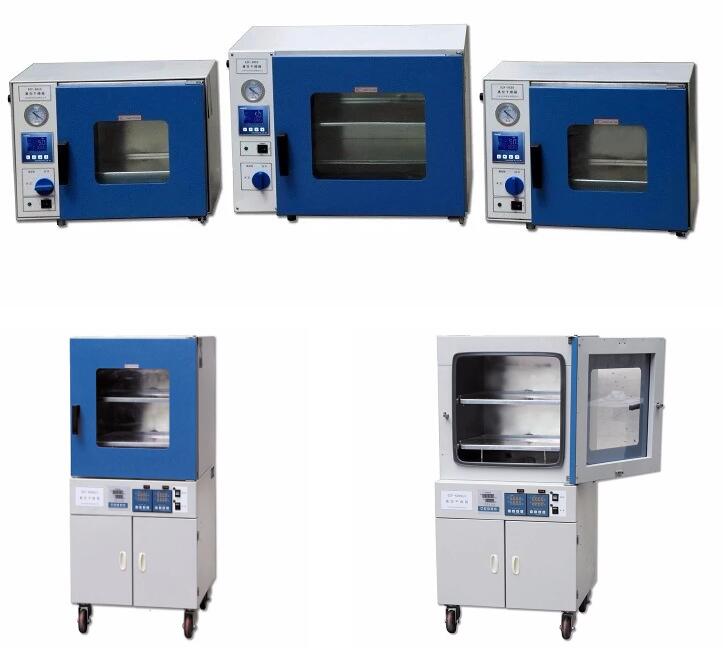

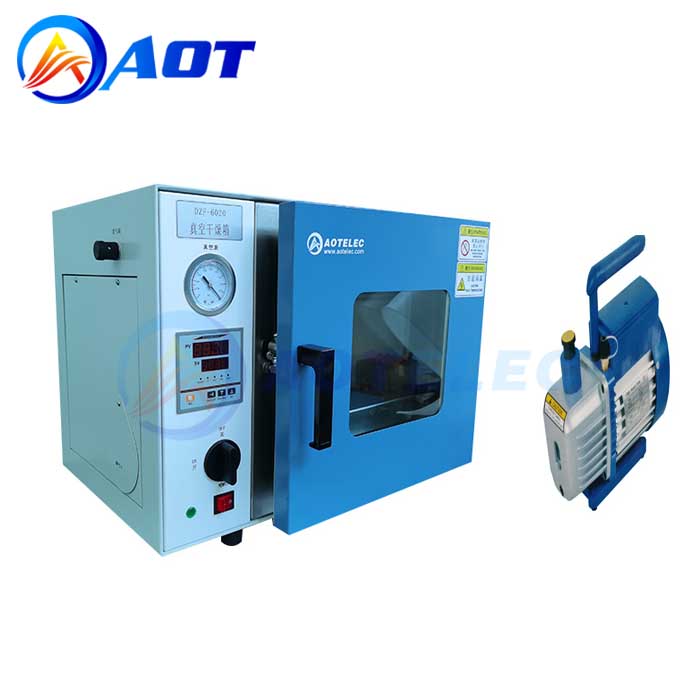

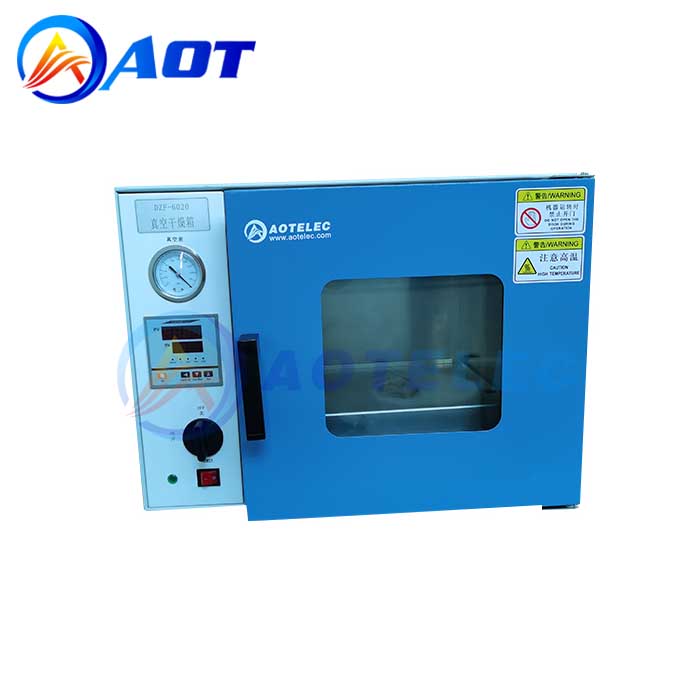

The Vacuum Drying Oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing vacuum embedding, and plating applications.
This product is mainly used for scientific research units, specialty universities, laboratories, industrial mining enterprises etc. and production field for materials drying and heat treatment under the vacuum state.
The product is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers’disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.
This Vacuum Drying Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.
1. Vacuum environment greatly lowered the liquid’s boiling point which needs to be driven away; therefore the vacuum dry method can be applied into heat sensitivity material.
2. For the samples which can't be dried easily, such as powder or other pellet form sample, using vacuum dry method may effectively reduce drying time.·
3. Various complex structures of machinery ministry or other porous sample process use vacuum dry method after washing will not leave any residue
4. Safety guarantee: whether under vacuum or inertia condition, the possibility of oxide explodes when is heated will completely be eliminated.
5. Compared with the normal drying method depended on air circulation, powder samples will not be blown or moved away by air.
Model | DZF-6020 Vacuum Drying Oven |
Source voltage | AC220V 50HZ |
Power | 450W |
Warranty | One Year Limited Manufacture Warranty with Life Time Support |
Temperature range | RT+10-250℃ |
Temperature fluctuation | 0.1℃/±0.5℃ |
Vacuum degree | -0.1MPa |
Volume | 25L |
Inner box size(L*W*H) | 300*300*275mm |
Dimension(L*W*H) | 605*490*450mm |
Temperature controller | 1 High precision microcomputer temperature controller, accurate temperature control 2 Working temperature can be set and working time can be set for 0-9999min. 3 When time reach, sound alarm, and when any error, also alarm. function |

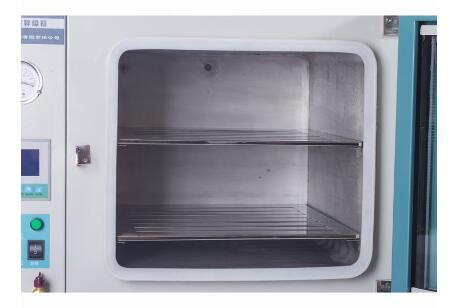

Inner box material | 304 stainless steel |
Outside shell material | High quality cold-rolled steel plate electrostatic spray |
Box door | Toughened bulletproof double glass door |
Safety device | With over temperature protection, grounding etc |
Shelf | 1pcs 1 Solid stainless steel shelf, guarantee the oven temperature 2 Mesh stainless steel shelf can be also chosen |
Ambient temperature | +5~40℃ |
