Roll to Roll Continuous Battery Coating Machine for Lab Electrodes Manufacturing

Model: AOT-CCM-300
Type: Roll to Roll Coating System
Coating width: 80mm-280mm
Coating Thickness: 30um-200um
Product description: AOT-CCM-300 roll to roll battery electrode coating machine is a small coater system for lithium battery lab assembling in university and factory. This system integrates the functions and features of r
INQUIRY

300mm width Roll to Roll Continuous Coating System for Lab Battery Assembling

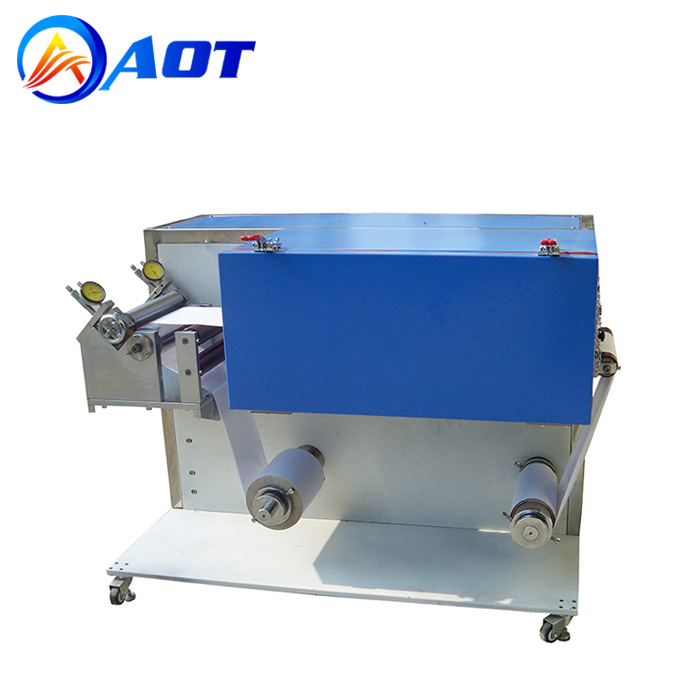

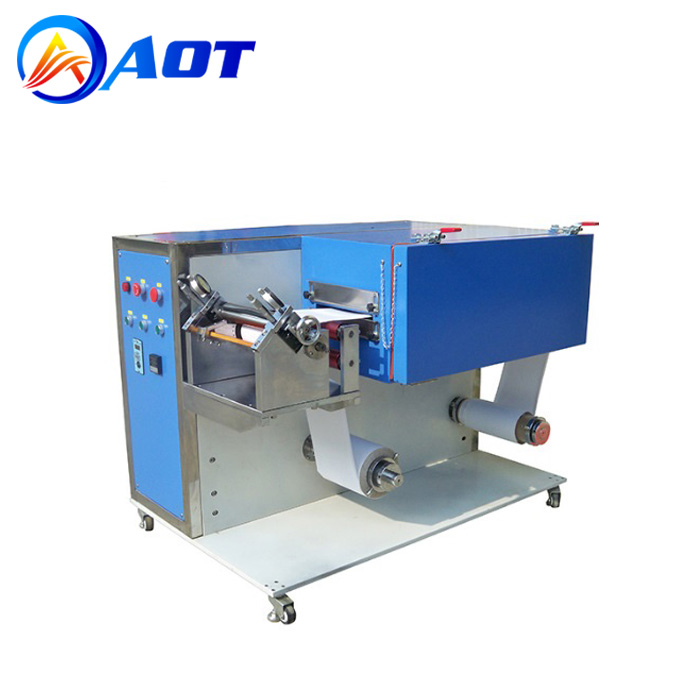

AOT-CCM-300 lab battery electrode coating system is a small Roll to Roll continuous coater for small size battery research in laboratory of university and factory.

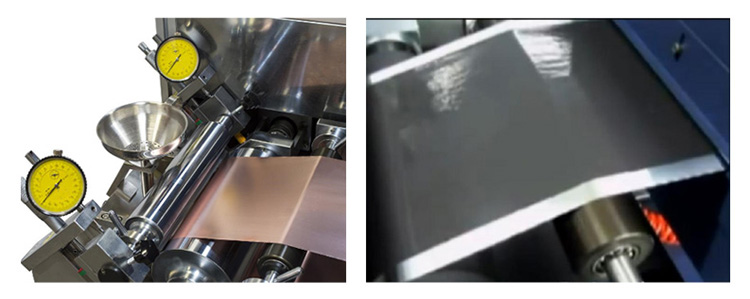

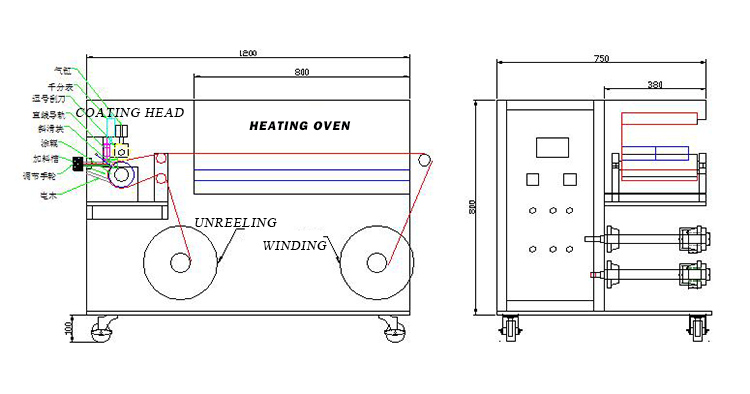

This coating system integrates the functions of reeling in and out, slurry feeder, coating blade, baking oven, and final electrode rewinding. It can coat electrode sheets up to 280mm width and 500 meter length automatically.

This lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery cathode and anode electrode continuous coating.

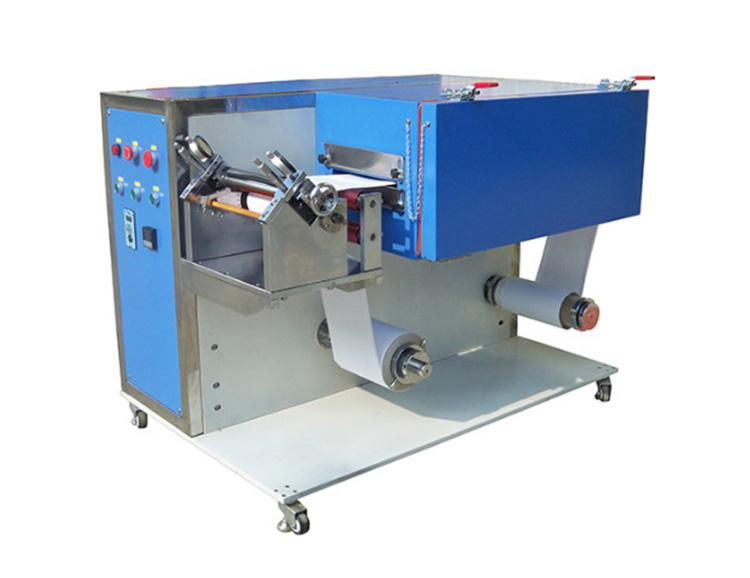

One convenient design is that it has four wheels on bottom of equipment, it can be removed easily for laboratory use.

Model	Roll to roll battery electrode coating system AOT-CCM-300
Source voltage	AC 220v 50Hz , 110V can be customized
Power	4500W
Warranty	One Year limited manufacture warranty with lifetime online support
Coating mode	Continuous coating
Max coating width	280mm
Applicable matrix thickness	Aluminum foil : 10-30um Copper foil : 6-30um
Mechanical tape speed	≤1800mm/min, with accuracy ±0.1m/min
Coating speed	0-1800 mm / minute, adjustable
Coating thickness	30-200um
Applicable slurry viscosity	1500-15000cps
Coating roller accuracy	≤ ± 2um
Coating accuracy	Double dry thickness accuracy error : <±4um
	Single side dry thickness accuracy error : <±2um
	Double coated alignment error : <±0.5mm
	Average length of error : <±0.5mm
Roller inner diameter	3 inches
Tension control	Low friction tension system
Struggle to control precision	<±0.3mm
Oven temperature	Max150℃ adjustable, with accuracy ±2℃, Independent PID adjustable
Oven length	Standard is 800mm, it can be customized.
Weight	500kg
Dimensions(LWH)	1100650950mm
