Split Test Cell with Beryllium Window for Battery Electrode

Split Test Cell with Beryllium Window for Battery Electrode

Product Name: Split Test Cell
Model Number:AOT-EQ-STC-BEW
Brand Name: AOT
Product Orgin:China
Product description: It is designed for simple and rapid assembly testing of rechargeable battery electrode materials. The characteristic of the detachable test cell is a diameter of 35mm. The beryllium (Be) window allows
INQUIRY

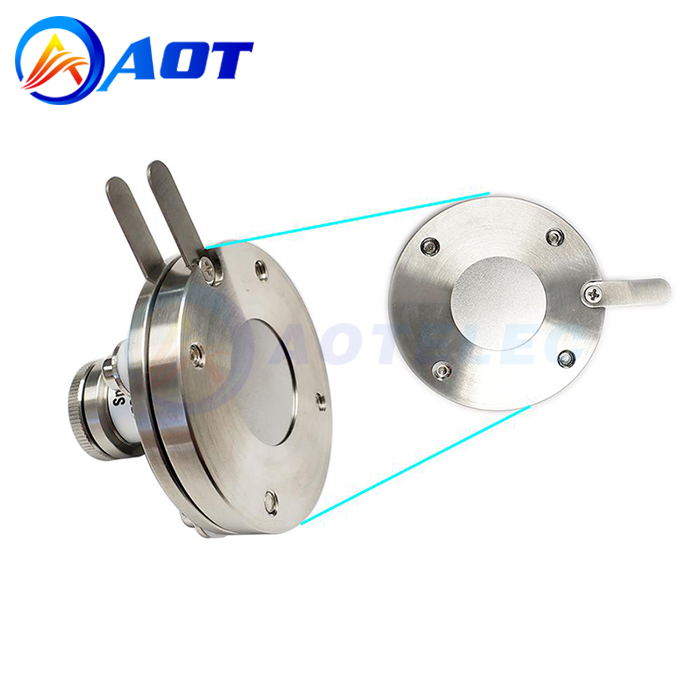

AOT-EQ-STC-BEW battery can accommodate electrodes and separators of various sizes (diameter 19, 20, and 24mm). It is designed for simple and rapid assembly testing of rechargeable battery electrode materials. The characteristic of the detachable test cell is a diameter of 35mm. The beryllium (Be) window allows for in-situ XRD analysis of the phase transition of battery materials during charging/discharging cycles.

Product Name	Split Test Cell with Be Window
Thickness	Max. Cell Cathode + Separator + Anode: 5mm
Working Temperature	Max.250°C

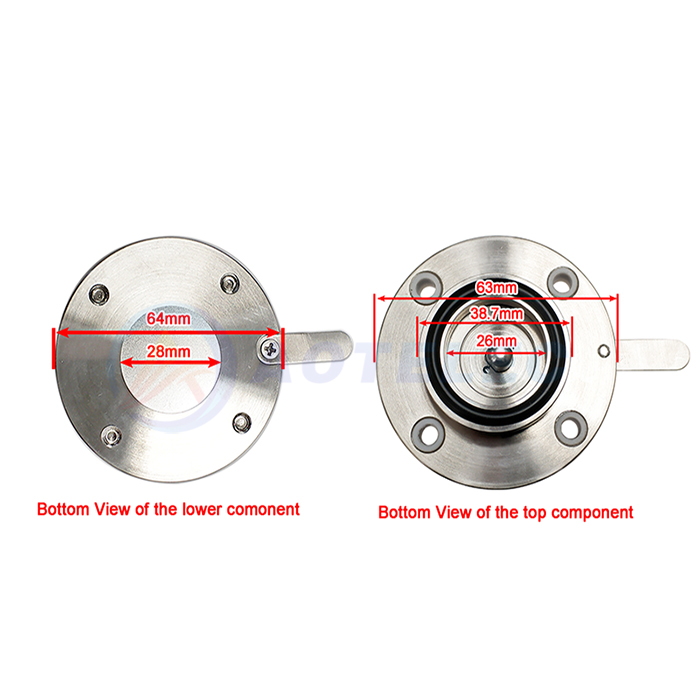

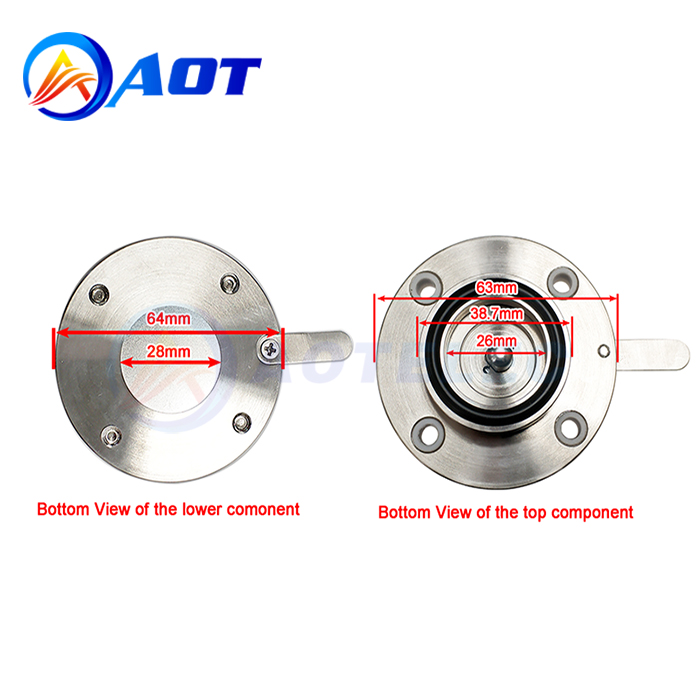

Dimension	Height: 47mm min. without load Diameter: 64mm (widest diameter without lead) Lead-exposed length: 12.6mm Beryllium (BE) Window: 35mm Dia. x 0.15mm thick

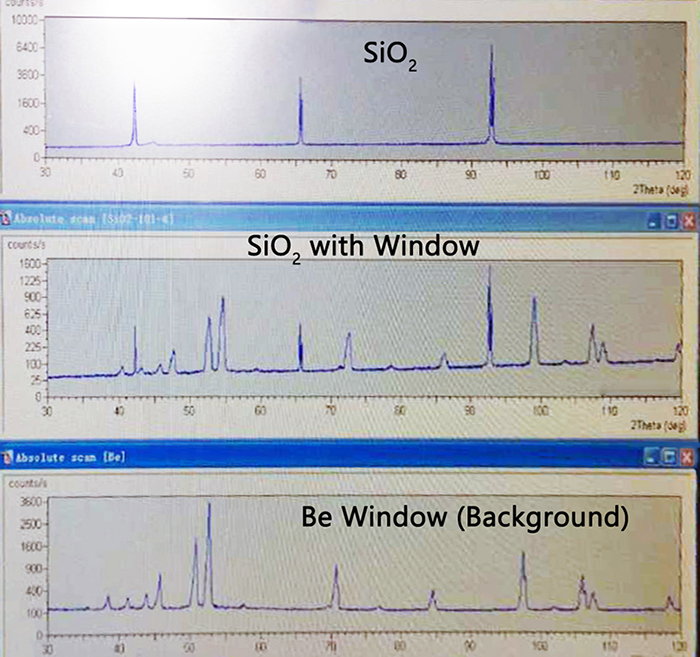

Be Observation Window	Beryllium (BE) Observation Window allows the X-Ray beam penetration XRD Diffraction Angle (2θ) for 20 & 24 mm I.D. Sleeves: 5°~170°

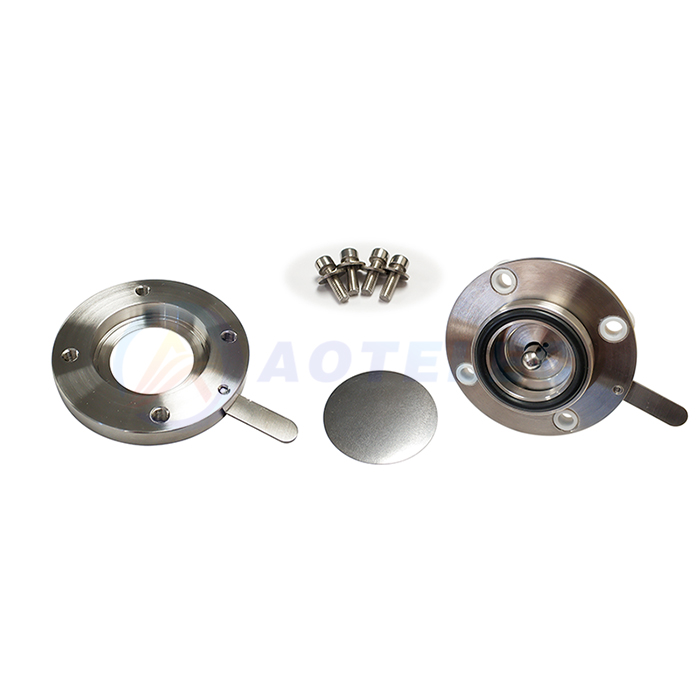

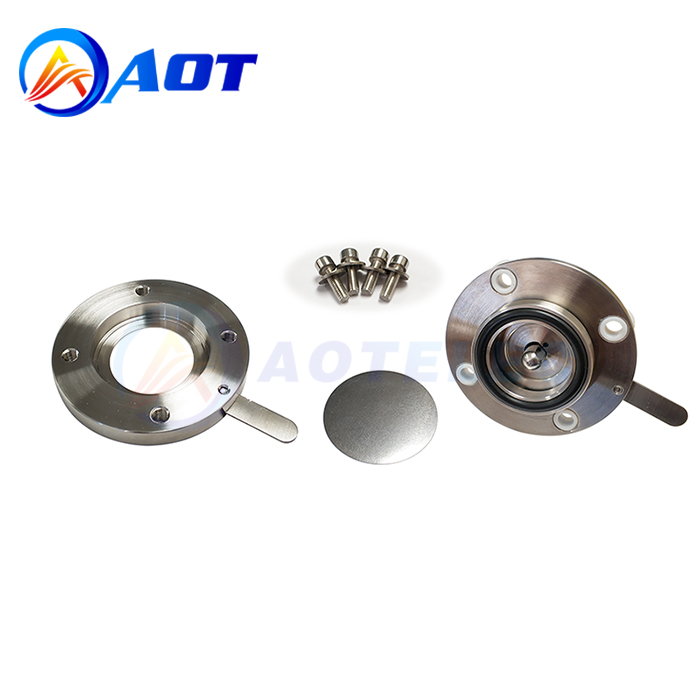

Materials	Stainless Steel constructed body and pressing plate Beryllium (Be) Window PTFE Sleeve PTFE O-rings SS Hex Screws
PTFE Sleeve Size Option	PTFE (white) sleeve around a stainless steel pressing pad. PTFE sleeve I.D.: 19, 20, and 24 mm PTFE sleeve O.D.: 29 mm
Main Features	1.Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC 2.Sealed by electrolyte corrosion-resistant PTFE O-rings 3.Slim design allows the operation inside of the glove box 4.Easy to assemble, separate or clean after the completion of each experiment 5.Same functionality as "Swagelok Coin Cell" but with more size options for electrodes
