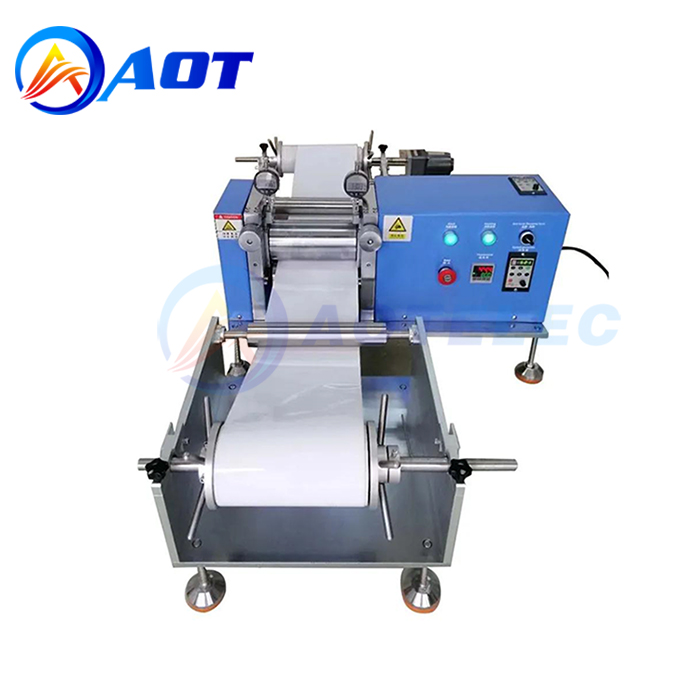

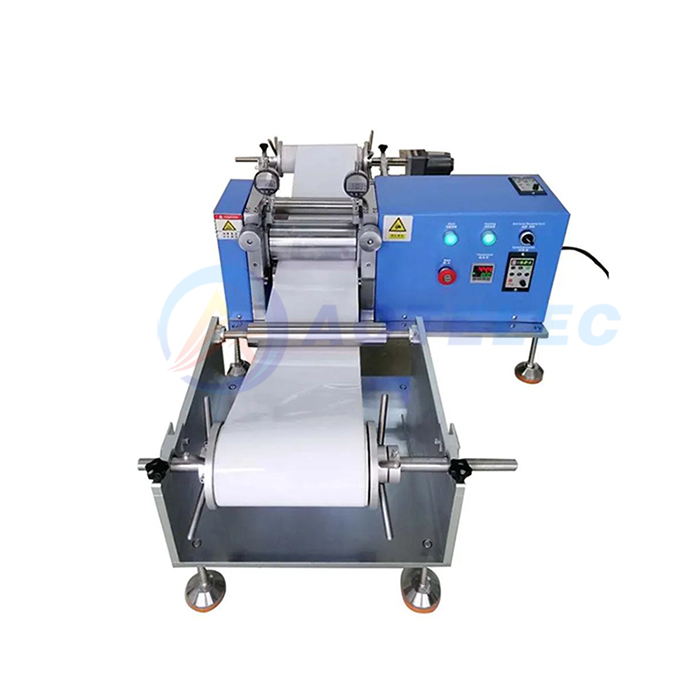

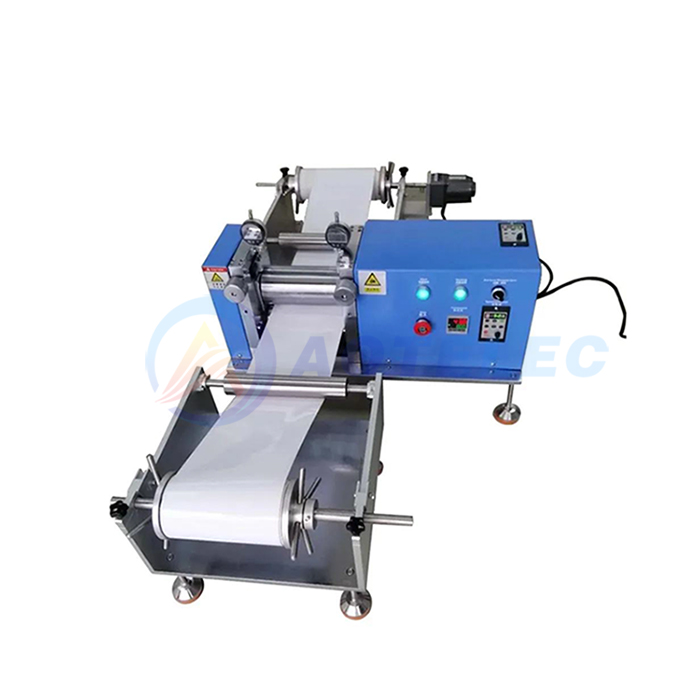

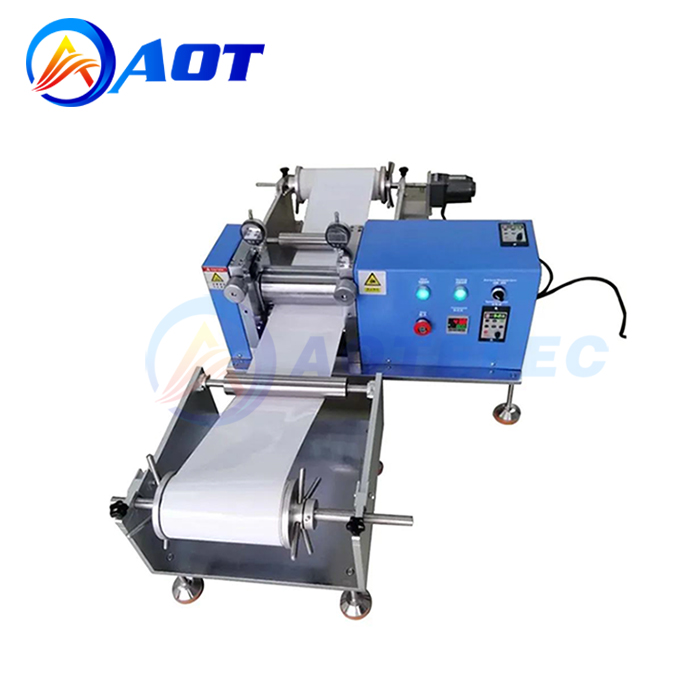

Battery Electrode Heat Calender Rolling Press Machine With Winding and Unwinding System For Battery Lab

Product Name: Rolling Press Machine
Working pressure：Maximum5KN
Brand Name: AOT
Product Orgin:China
Product description: AOT-GYJ-100C All rolls are made of high-strength and high hardness rolls, with a hardness of HRC62-63. The roll material is 9Cr2Mo high hardness and high performance roll material, which is subjected
INQUIRY

AOT-GYJ-100C All rolls are made of high-strength and high hardness rolls, with a hardness of HRC62-63. The roll material is 9Cr2Mo high hardness and high performance roll material, which is subjected to freezing treatment after heat treatment. The surface quenching layer is deep and the performance is stable.

By using a constant pressure and limited gap pressing method, intermittent coated battery electrodes can be continuously pressed. Stable pressure, high cylindricity of the rolling roller, uniform rolling sheet, and small deformation. Greatly improve production efficiency and reduce personnel workload;

Product Name	Rolling Press Machine With Winding and Unwinding System
Voltage	220V/50Hz
Power	3KW
Working pressure	Maximum5KN
Roll size	φ 100mm × 200mm
Roll temperature	130 ° C
Hardness of roller surface	HRC60-62
Effective clearance	0-3mm adjustable
Roller speed	0-4rpm, continuously variable and adjustable
Rolling force	Maximum 5T
Roll surface finish	0.8um
Roller transmission mode	High precision gear transmission
Rolling method	Continuous rolling method with gaps and pre pressure
Performance indicators of the winding and unwinding machine:	Pole parameters: The cylinder core is φ 76 mm, maximum straight diameter for unwinding φ 200 mm Maximum width of pole piece 180 mm
Weight	150KG
