Application: use in lab coin cell battery research

SPECIFICATIONS

Packing: 400pcs/bottle (200pcs/bag optional)

Thickness: 15.6*0.45mm (PS: 1.include 420um Na metal sheet and 30um Al metal for support and current collector;

                                         2.include 430um Na metal sheet and 20um copper metal for support and current collector;

                                         3.Pure sodium, without aluminum or copper .

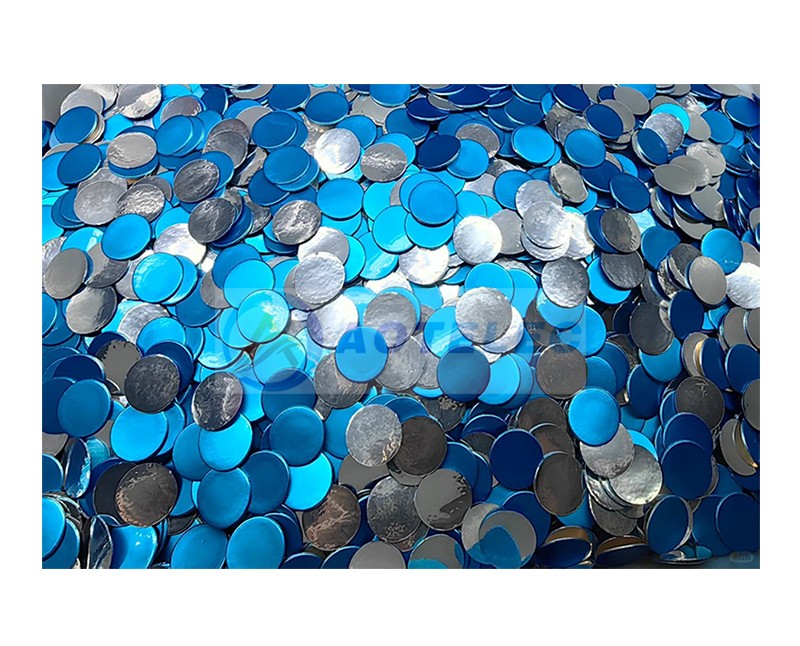

Material Name：Sodium chips, Sodium metal sheet, Na metal chips,Na chips.

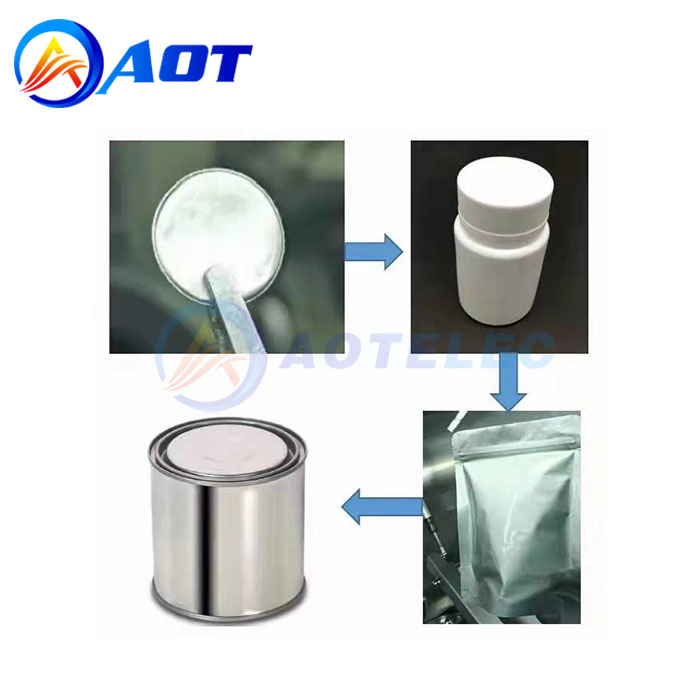

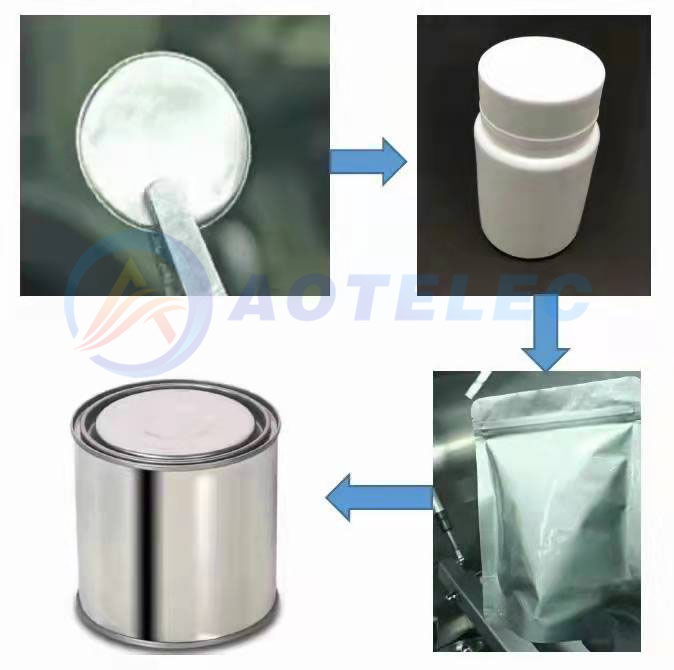

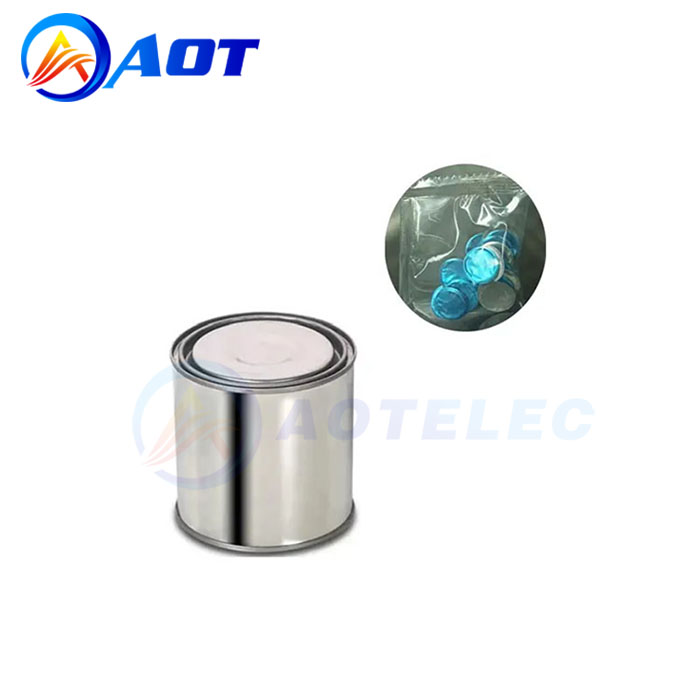

It is specially designed for button batteries (2032, 2025, 2016) to use composite sodium sheets, with a diameter of 15.6mm, a thickness of 0.45 mm, and a purity of more than 99.7%. It adopts quadruple protection packaging technology, which can be stored for a long time and can be used as needed.

Operation instruction:

1、Open the aluminum-plastic bag in the glove box, take out the white plastic jar, tear open the Aluminum Foil seal, take out the required number of composite sodium electrode chips, and then tighten the lid for storage;

2、A hand holding a widened flat-tip tweezers clamped sodium electrode chips, a hand with pointed stainless steel tweezers to remove the protective film (best not to use rubber tweezers to remove the film), the aluminum foil side is blue protective film, the side of the sodium piece is transparent protective film, tearing off the film first remove the blue protective film, and then the transparent protective film, in the edge of the edge of the gently pick to be uncovered;

3、When installing the battery, aluminum foil to the battery case, sodium chips to the separator to assemble the button cell;
