Lab Single-Channel Potentiostat /Galvanostat

Lab Single-Channel Potentiostat /Galvanostat

product name:Single-channel potentiostat /Galvanostat
AOT- CS350M
Brand Name. AOT
Product Orgin:China
Product description: Potentiostat/Galvanostat/FRA/ZRA Maximum Current: ±2A Current range: ±2nA ~2A, 10 ranges Applied Potential: ±10V(can be customized to ±12V) Compliance voltage: ±21V Built-in EIS/FRA, EIS range: 10μHz~
INQUIRY

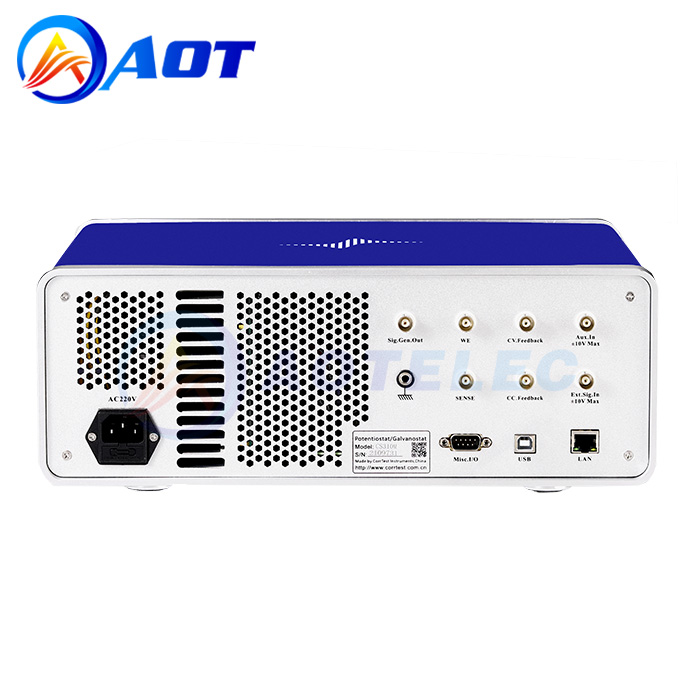

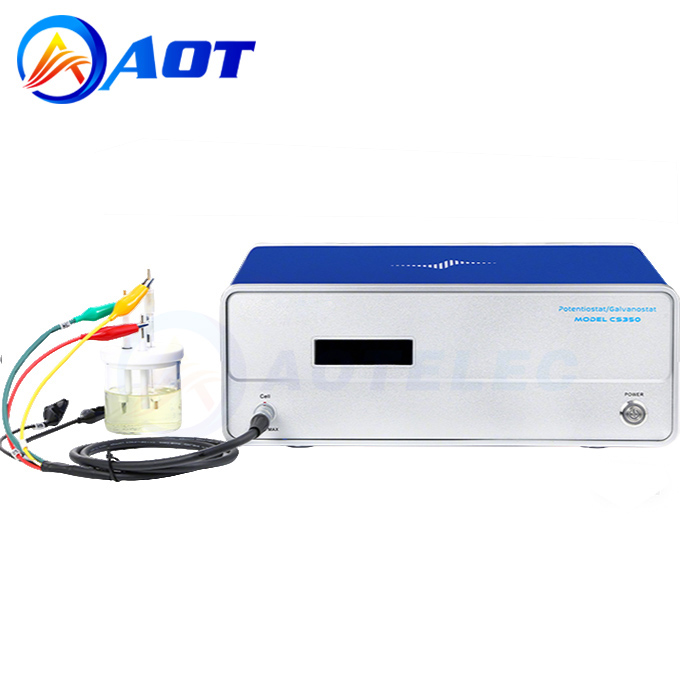

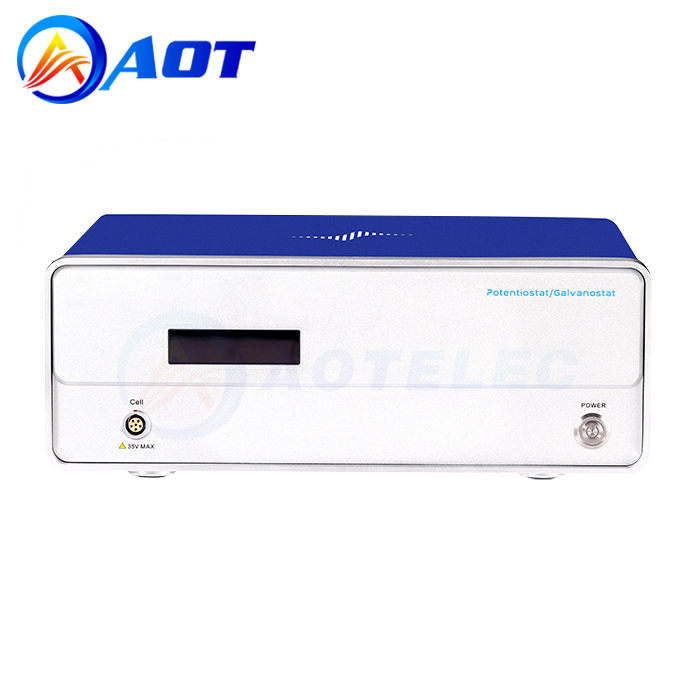

Model CS350M single-channel potentiostat/galvanostat consists of a DDS arbitrary function generator, a potentiostat/galvanostat and an FRA. With the help of built-in dual 24-bit Delta-sigma AD converters, it achieves excellent stability and high potential (1mV) and current(1pA) resolutions. CS350M has been widely applied in corrosion, energy, material and analysis electrochemistry. In addition, via current booster. CS350M can increase its output current up to 20A/40A/100A.\

Specifications

Specifications
Support 2-, 3- or 4-electrode system	Potential and current range: Automatic
Potential control range: ±10V(can be customized to ±12V)	Current control range: ±2A
Potential control accuracy: 0.1%×full range±1mV	Current control accuracy: 0.1%×full range
Potential resolution: 10μV (>100Hz),3μV (<10Hz)	Current sensitivity:1pA
Rise time: <1μS (<10mA), <10μS (<2A)	Reference electrode input impedance:10¹²Ω\|\|20pF
Current range: 2nA~2A, 10 ranges	Compliance voltage: ±21V
Maximum current output: 2A	CV and LSV scan rate: 0.001mV~10,000V/s
CA and CC pulse width: 0.0001~65,000s	Current increment during scan: 1mA@1A/ms
Potential increment during scan: 0.076mV@1V/ms	SWV frequency: 0.001~100 kHz
DPV and NPV pulse width: 0.0001~1000s	AD data acquisition:16bit@1 MHz,20bit@1 kHz
DA Resolution:16bit, setup time:1μs	Minimum potential increment in CV: 0.075mV
IMP frequency: 10μHz~1MHz	Low-pass filters: covering 8-decade
Operating System: Windows 10/11	Interface: USB 2.0
Weight / Measurements: 6.5kg, 36.5 x 30.5 x16 cm
