Battery Slurry Filtering Machine Compact Filtration System

Battery Slurry Filtering Machine Compact Filtration System

Product Name:Battery Electrode Slurry Filtration
Capacity:500ML
Model:AOT-SF-500M
Origin:China
Product description: AOT-SF-500M battery slurry filtration device is an essential key equipment in the battery production process, mainly used to remove impurities and particles from the slurry, ensuring the consistency a
INQUIRY

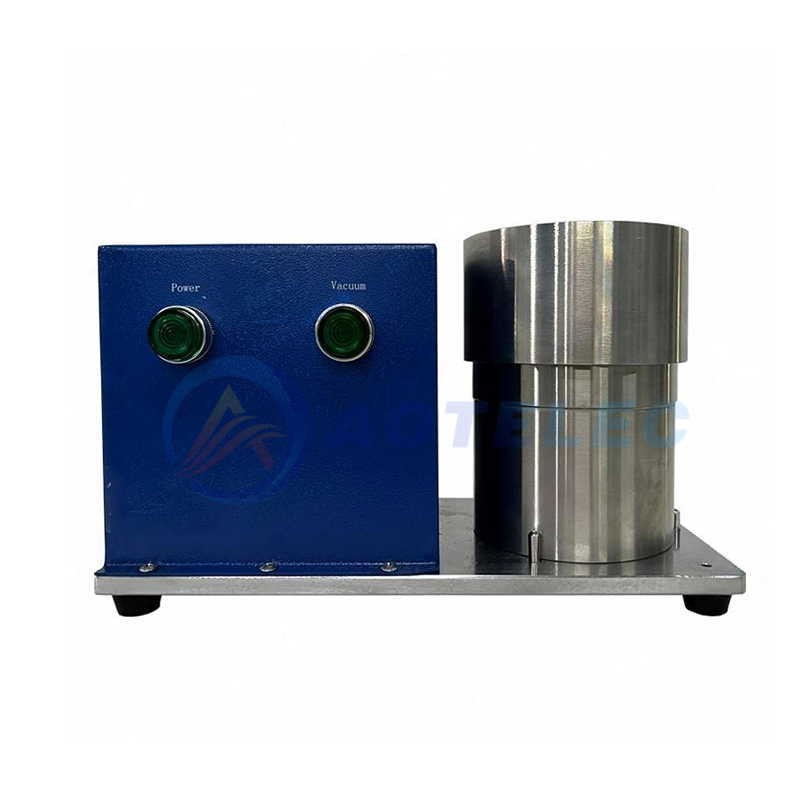

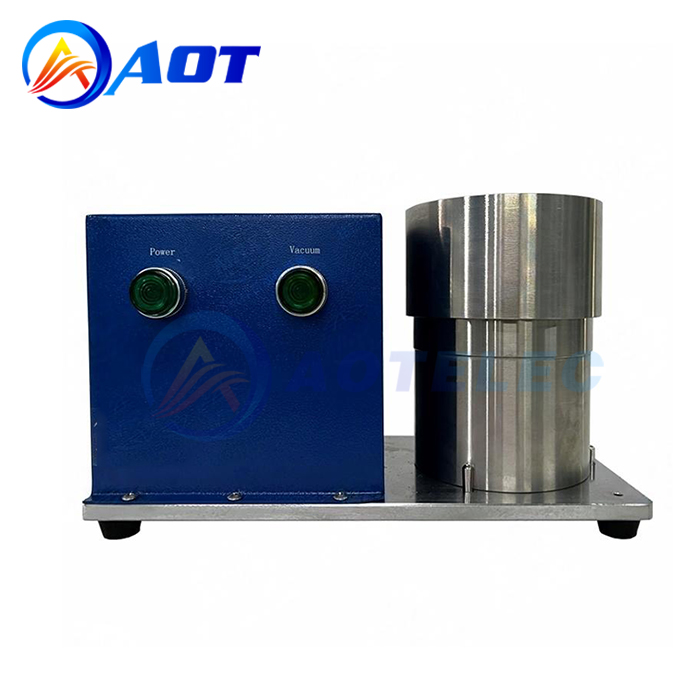

AOT-SF-500M battery slurry filtration device is an essential key equipment in the battery production process, mainly used to remove impurities and particles from the slurry, ensuring the consistency and performance of the battery.

Equipment advantages:

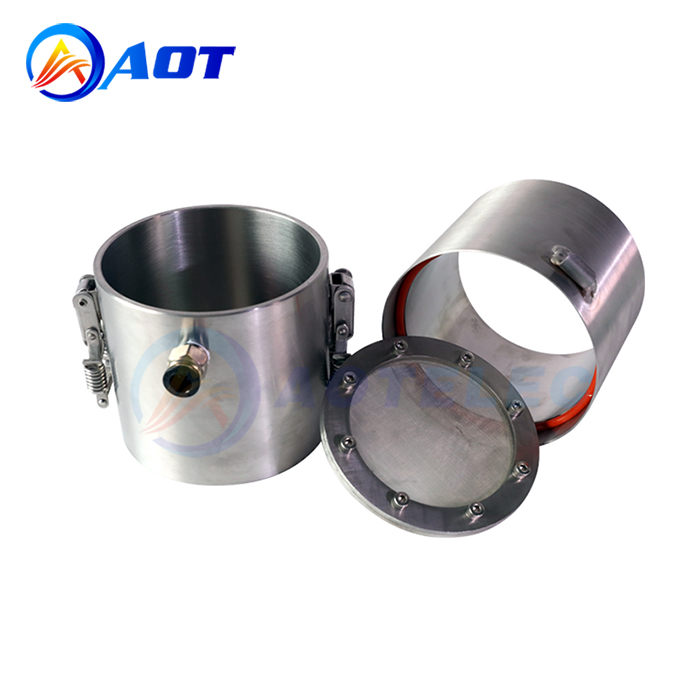

1.Equipped with two types of particle filters, positive and negative, with high filtration accuracy of up to 124 microns,

2.Designed with SUS304 stainless steel, it has good anti-corrosion performance;

3.Small size, easy to operate;

4.Optimize the fine particle size of the slurry to enhance the performance of coating products.

Product Name	Battery Electrode Slurry Filtration
Power Supply	AC 220V±10% 50HZ
Absolute vacuum degree	65KPa
Air pump flow rate	3L/Min
Capacity	500ml
Filter screen	80,100,120,150 mesh optional
Type	Vacuum adsorption filtration
Slurry	Suggestion: ≤ 20000cp, solid content ≤ 80%
Weight	8kg
Size	320mmLx150mm Wx190mm H
