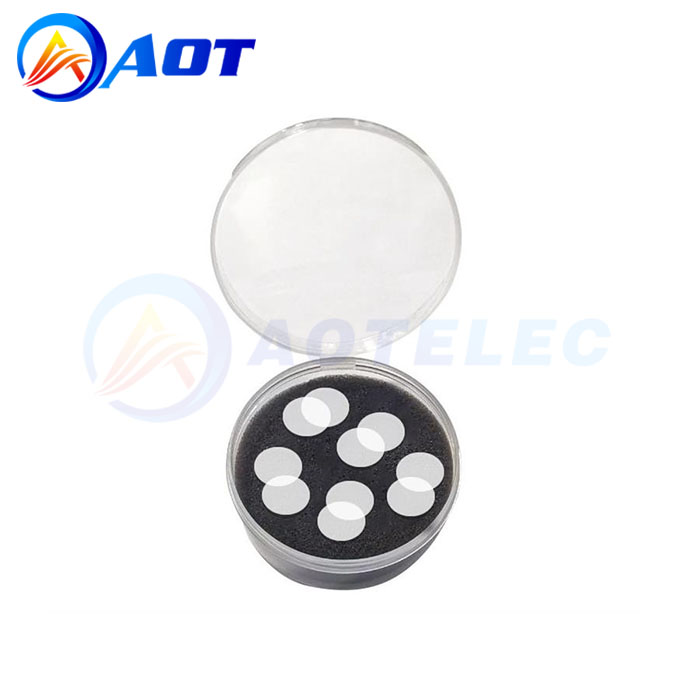

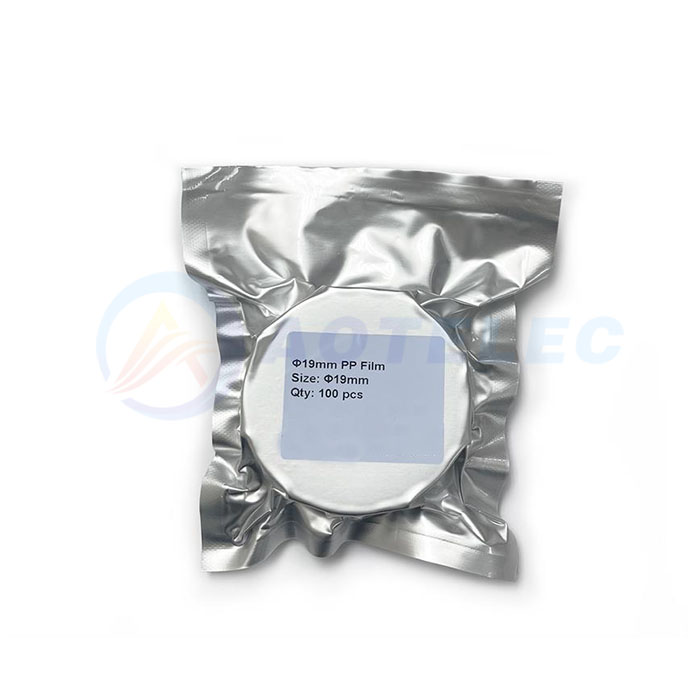

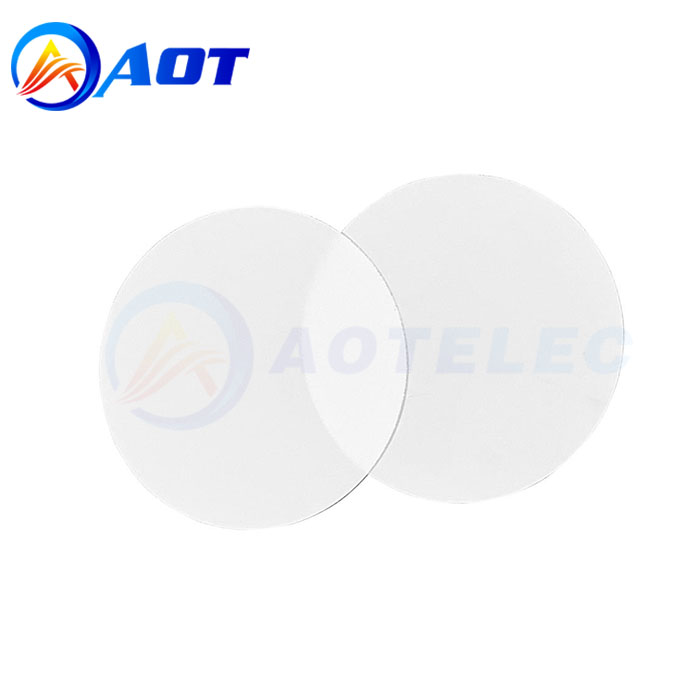

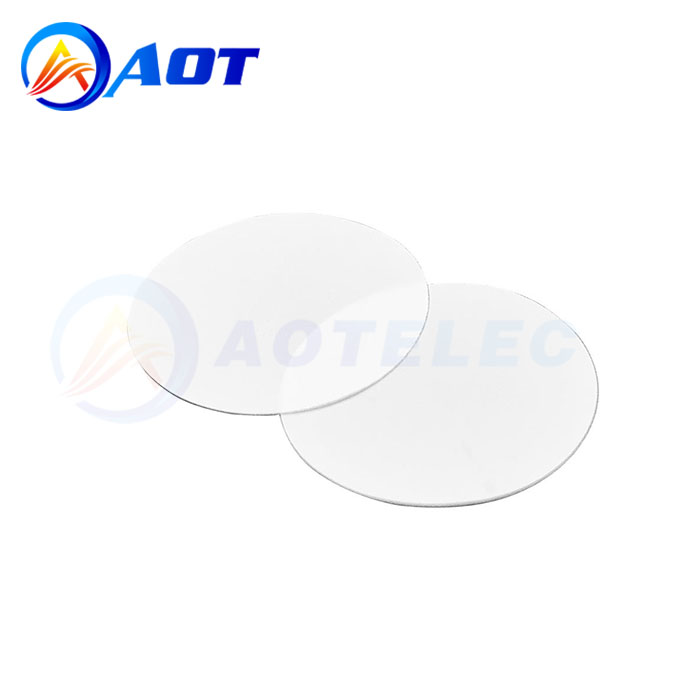

Polypropylene (PP) Film Disk for CR20XX Coin Cells

  • Product name: PP Film Disk
  • Material: Polypropylene
  • Diameter:19um
  • Thickness:16um
  • Product description: AOT-Lib-PP19 is a pre-cut Polypropylene PP thin film for CR20XX coin cell battery R&D and split testing cells.
  • INQUIRY

AOT-Lib-PP19 is a pre-cut Polypropylene PP thin film for CR20XX coin cell battery R&D and split testing cells.


SPECIFICATIONS:

Material

Polypropylene (PP)

Diameter

19 mm

Thickness

16 +/- 1.5 um

Air Permeability

310 +/- 50 s / 100 ml

Porosity

35 +/- 4 %

TD Shrinkage

<= 0.5% at 120 Celcius degrees / 1 H

MD Shrinkage

<= 8.0% at 120 Celcius degrees / 1 H

Puncture strength

>= 220 G

MD Tensile Strength

>= 1,200 kgf/ cm^2

TD Tensile Strength

>= 100 kgf/ cm^2

Operation

The package must be open inside a glove box with Argon Gas and moisture less than 2%RH.


Polypropylene Film Disk for CR20XX Coin Cells
