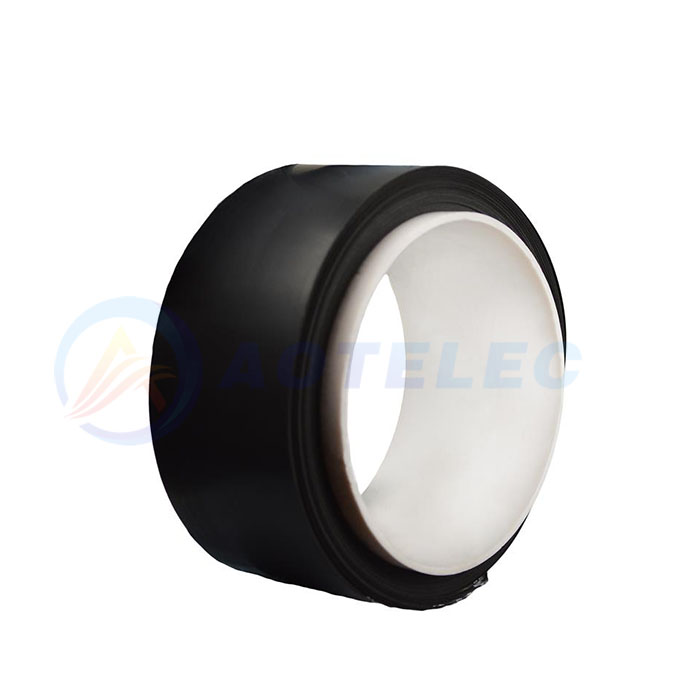

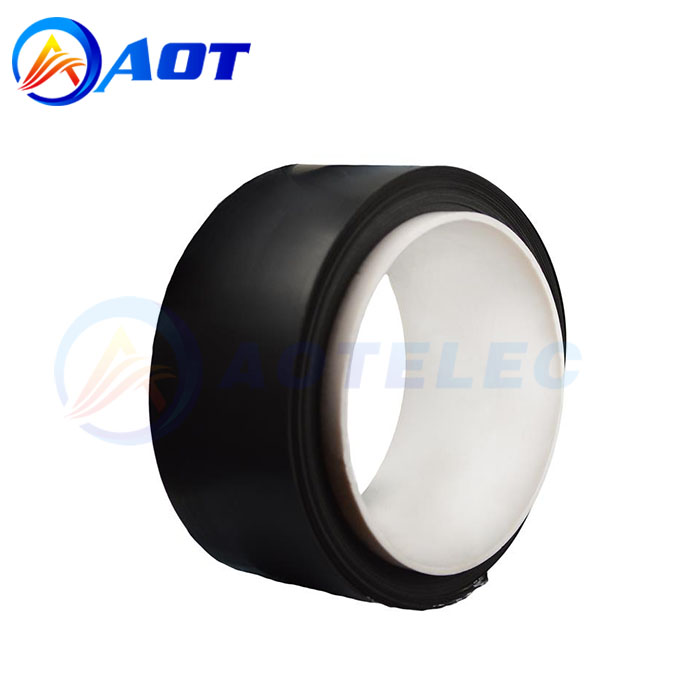

  • 18650 Li-Ion Battery Cathode Strips - Aluminum Foil Double Side Coated by LiNiCoMnO2
18650 Li-Ion Battery Cathode Strips - Aluminum Foil Double Side Coated by LiNiCoMnO2

18650 Li-Ion Battery Cathode Strips - Aluminum Foil Double Side Coated by LiNiCoMnO2

  • Brand Name: AOT
  • Size: 670mm L x 56mm W x 0.12mm T
  • Certification: CE
  • Cathode material: LiNiCoMnO2
  • Product description: This electrode strip is composed by coating LiNiCoMnO2 on double sides of Aluminum foil. It is used as the cathode of 18650 Li-Ion battery.
  • INQUIRY

Specifications：


This electrode strip is composed by coating LiNiCoMnO2 on double sides of Aluminum Foil. It is used as the cathode of 18650 Li-Ion battery.


Current Collector (Substrate)

Aluminum foil

Cathode material

LiNiCoMnO2

Dimensions

670mm(L) x 56mm(W) x 0.12mm(T)

Active Material Proportion in Powder

94.5%

Specific Capacity

110 mAh/g

Coating

Double sided

Double Side Density

430-440 g/m^2

18650 Li-Ion Battery Cathode Strips
