In-situ Analytical Split Test Cell for Lithium/Zinc Air Battery

In-situ Analytical Split Test Cell for Lithium/Zinc Air Battery

Model: AOT-STC-ZINCAIR-W
Origin: China
Electrode: 16 mm Diameter Cell
Usage: Battery Analyzing
Product description: It contains a quartz observation window on the bottom which allows in-situ X-Ray analysis of battery material phase transition during charging and discharging process. Two needle valves allow you con
INQUIRY

In-situ Analytical Split Test Cell for Lithium/Zinc Air Battery

It contains a quartz observation window on the bottom which allows in-situ X-Ray analysis of battery material phase transition during charging and discharging process. Two needle valves allow you control air flow pressure and its splittable design provides you the most convenient way to test various anode and cathode materials. It's an excellent tool for Lithium/Zinc Air Battery Research

model	AOT-STC-ZINCAIR-W

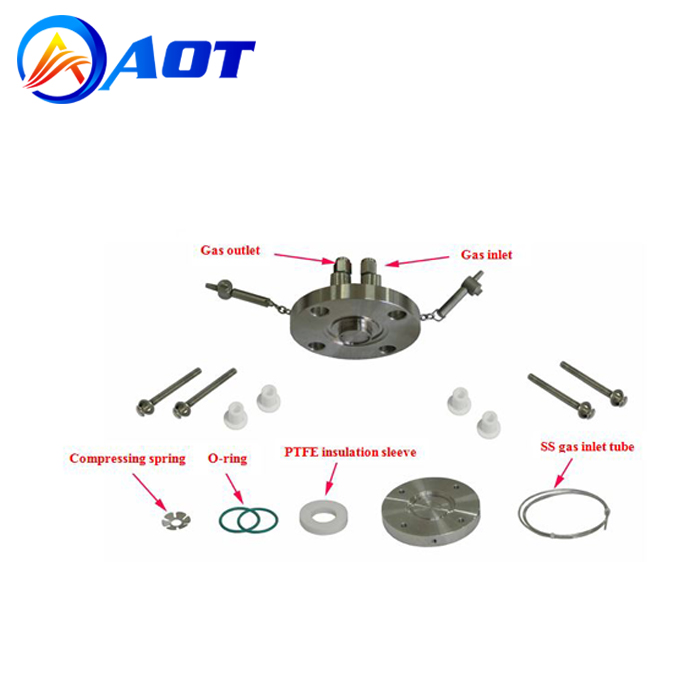

Structure	(1)316 Stainless Steel Structure ensures high electrical conductivity and good corrosion protection (2)Two electrodes design (3)Internal compress spring ensures a good metal contact of the electrodes
Bottom Recess Area	16mm Dia. (The recess area can accomodate the electrodes with size upto 16mm dia.)

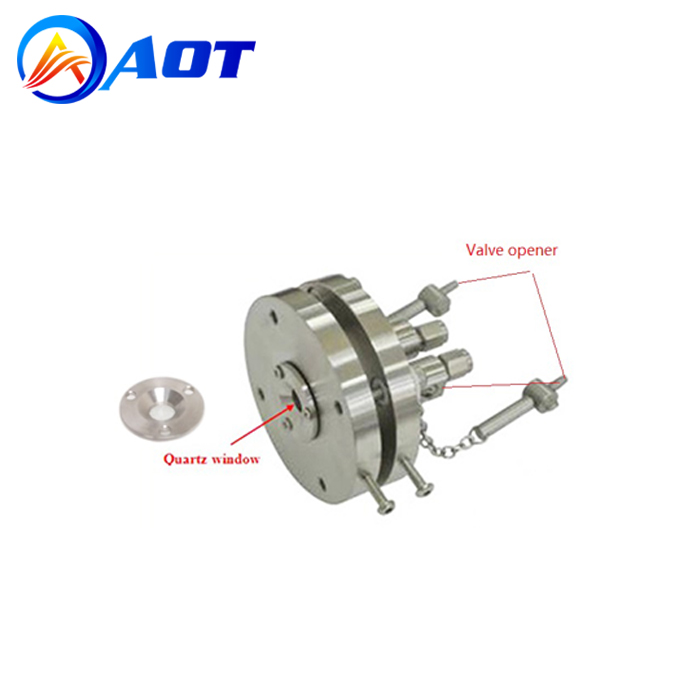

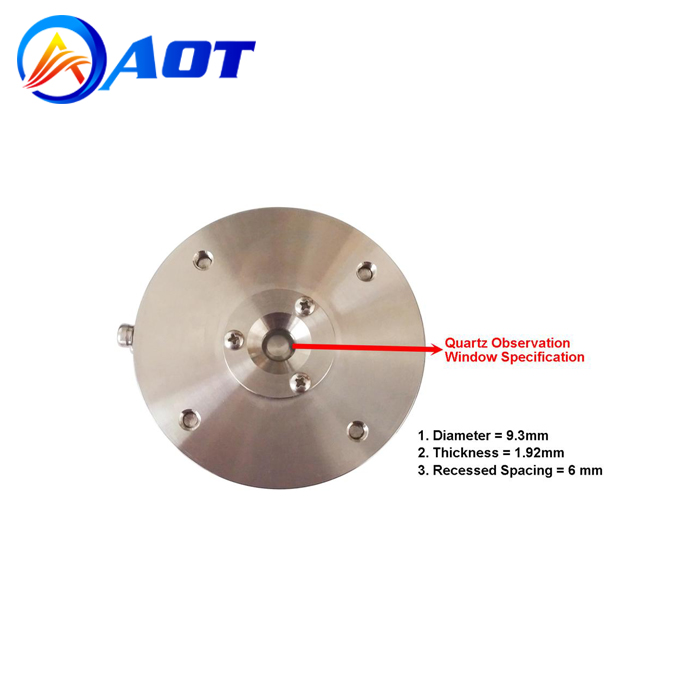

Quartz Observation Window	(1)Diameter = 9.3mm Quartz Observation Window allows the X-Ray beam penetration. (2)Thickness = 1.92mm (3)Recessed Spacing = 6.00 mm
Max. Working Temperature	200°C
Valves & Fittings	Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet

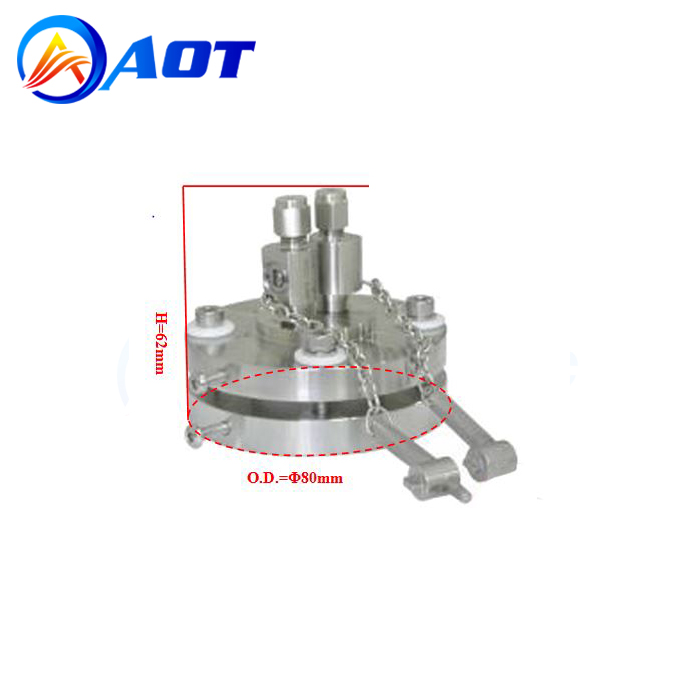

Dimensions	Φ80×62mm
Warranty	One Year limited manufacture warranty with lifetime support
