Two Electrode Split Test Cell for Lab Coin Cell Battery Reseach

Model: AOT-STC-2
Origin: China
Applicaton: Coin Cell Reseach
Max Working Temp: 200 degree centigrade
Product description: Stainless Steel Two-electrode Split Test Cell For Coin Cell Research
INQUIRY

Two Electrode Split Test Cell for Lab Coin Cell Battery Reseach

AOT-STC-2 split-able test cell is designed for R&D of rechargeable battery material. It can accept various sizes of (19, 20, and 24mm diameter) electrodes and separators and test the electrodes easily and quickly.

SPECIFICATIONS

Structure	Full stainless steel

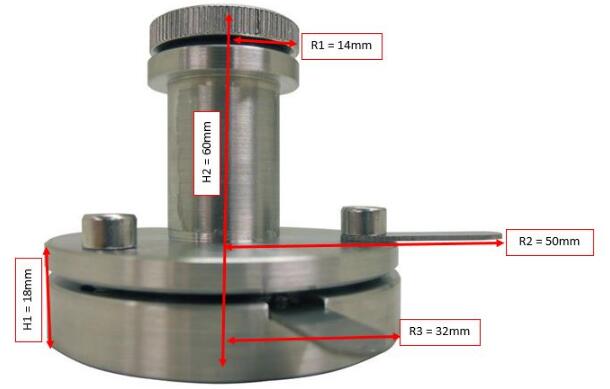

Max. Cell Thickness	6mm (cathode+separator+anode)

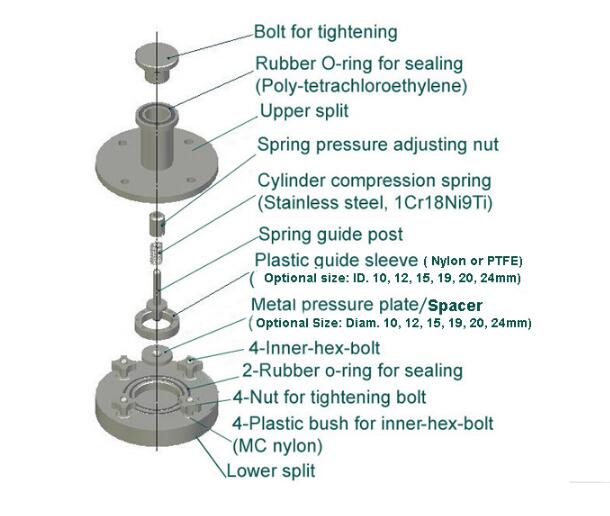

Features	1.A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling 2.Sealed by electrolyte corrosive-proof PTFE O-rings 3.Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 200 ºC 4.Easy to separate after testing 5.Small enough to be put in and taken out from a glove box 6.Same functionality to "Swagelok Coin Cell" but with more size options for electrode and separator and also the proper dimensions for glove box compatibility
Max. Working Temperature	200 ºC ( continuous ) 280ºC ( for < 1 minute )
Optional	Please select the insert size in the Product Options. 19, 20, and 24 mm diameter inserts are available.
