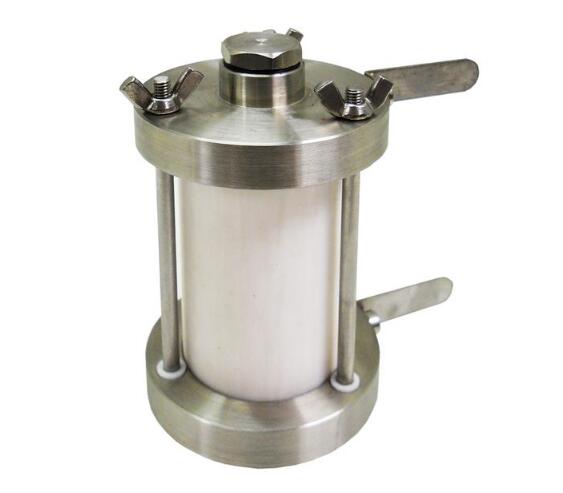

Lab Split Test Cell for 18650 Cylindrical Cell

Model: AOT-STC-18650
Origin: China
Liner Material: Nylon/PTFE
Application: 18650 Battery Cell
Product description: Lab Split Test Cell for 18650 Cylindrical Cell
INQUIRY

Split Type Test Cell is designed for testing 18650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrode easily and quickly.

Note: The default is Nylon body

Specifications
Dimensions (Dia x Height)	ID of PTFE Body: 18mm Height of PTFE Body: 65mm
Material	Caps: Full Stainless steel end caps Body: Electrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings
Design	Easy assembling by only four cap mounting screws Easy to separate after test Space saving, compact design allows you put it into the glove box
