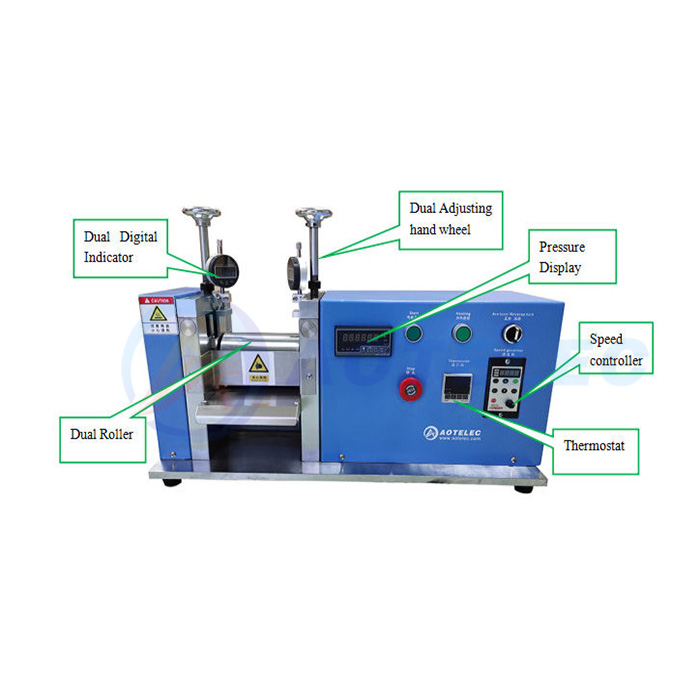

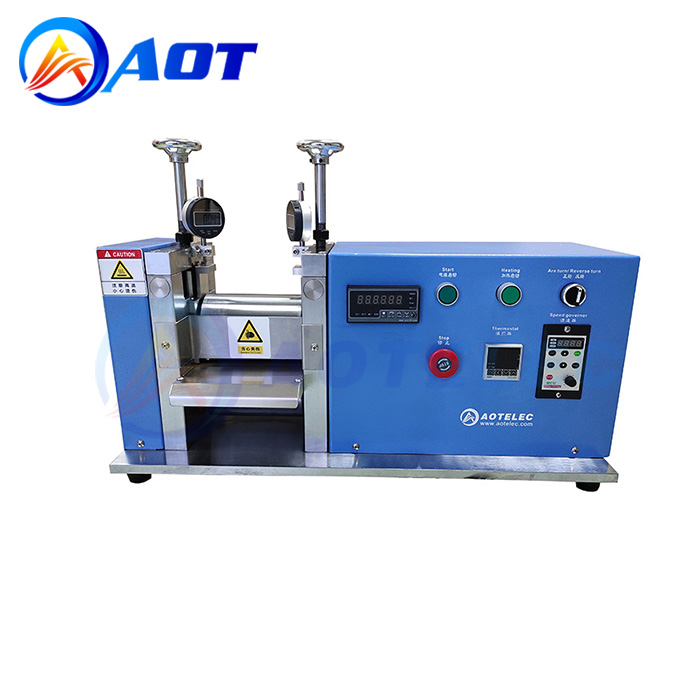

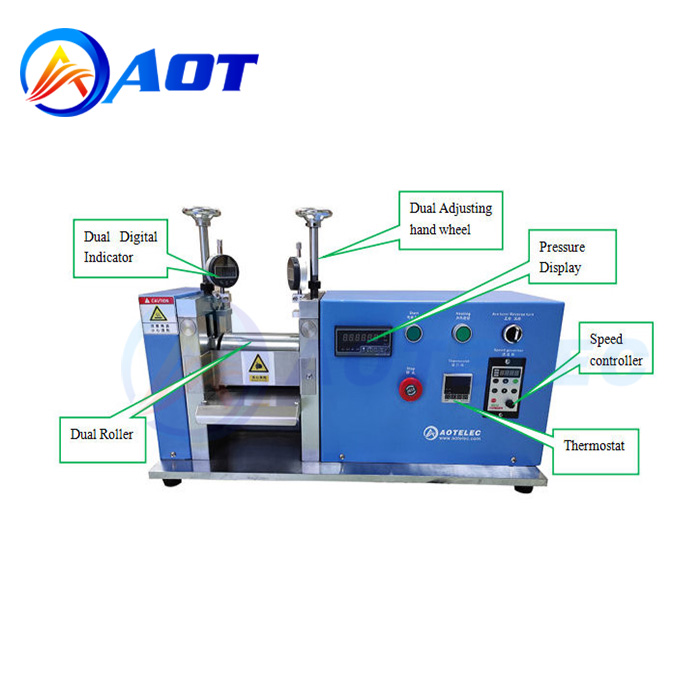

Hot Roller Heat Press Machine With Pressure Display For Lithium Battery

Product Name;Hot Roller Heat Press Machine
Model:AOT-HRP-150L
Power:200W
Origin:China
Product description: Hot roller heat press machine is mainly suitable for the electric rolling of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and non-ferrous ma
INQUIRY

Hot Roller Heat Press Machine is mainly suitable for the electric rolling of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum at a certain temperature. The rolling thickness is adjustable and the operation is simple. It is especially suitable for thinning and increasing the density of lithium battery electrode.

Specification:

Product name	Hot Roller Heat Press Machine
Press roller size	Φ100mm×L150mm
The surface hardness of the pressure roller	HRC62
Cylindricity of roll	≤±2μm
Effective gap	0-3mm adjustable
Working speed	stepless frequency conversion speed regulation linear speed 0-4 m/min adjustable
Roll surface finish	chrome plated on the surface, above 0.8
Working width	150mm(other width can be customized);
Maximum pressure	3T
Motor working power	200W
Heating tube power	1.8 KW

Working principle:

By turning the hand wheel, the upper roller produces downward pressure, and the battery electrode sheets placed on the lower roller are flattened.

This equipment is driven by a geared motor to drive a high-hardness pressing roller, and the gap between the pressing rollers is mechanically adjusted, so that the electrode sheet is formed under pressure and the density of the battery electrode is increased.
