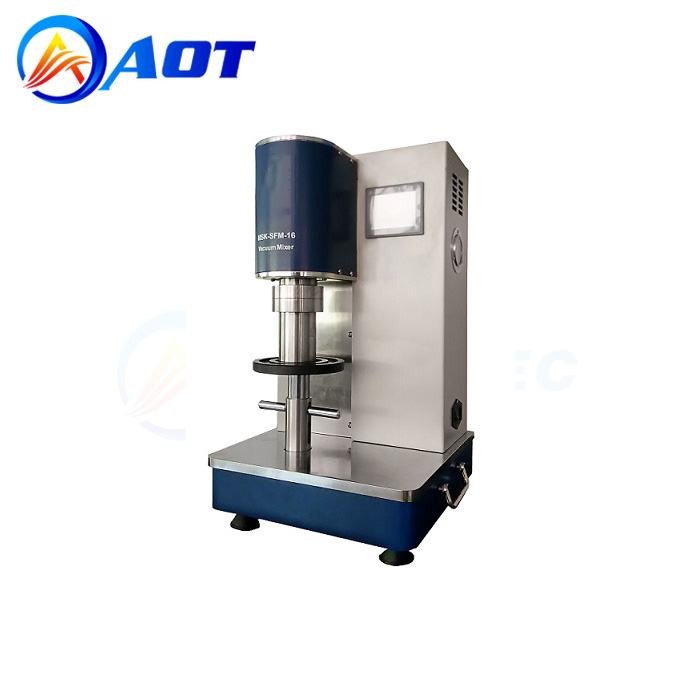

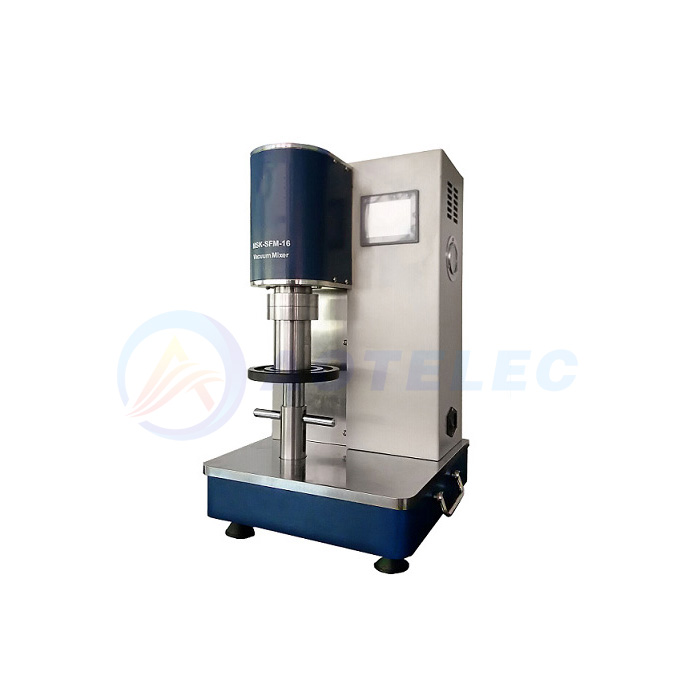

Desk-Top Dual-Shaft Planetary Vacuum Mixer

AOT-SFM-16 is a compact dual-shaft planetary vacuum mixer. Compared to single-shaft models, the dual-shaft mixer comes with three segments of programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing the gas bubble, which can vacuum the mixing container to -0.08 MPa.  One 150ml SS container is included and 50 and 500ml container is optional.  (heating container is optional up to 200oC).   It is compact to put in the glovebox with Ar and N2 atmosphere through an anti-chamber.


Voltage Input & Powe

(1)24 VDC input voltage

(2)One UL listed 100-240 VAC IN, 24 VDC OUT power adapter is included

(3)120W, 24VDC motor



Rotary Speed

0 - 600 rpm

Slurry Viscosity

Max. 10000 mPa·s (cps) @ 600 rpm

Mixing Containers

(1)One 150 mL stainless steel 304 vacuum-sealed container is included (minimum loading required is 50mL)

(2)Dual helical ribbon mixing blades are built on the lid of the container.



Vacuum Pump

(1)Built-in single-stage vacuum pump

(2)Vacuum Level: -0.08 ~ -0.09 MPa



Control Panel

(1)3.5" color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off

Mixing Time:    0 - 600 minutes

Mixing Speed:  0 - 600 RPM and 3 segments programmable

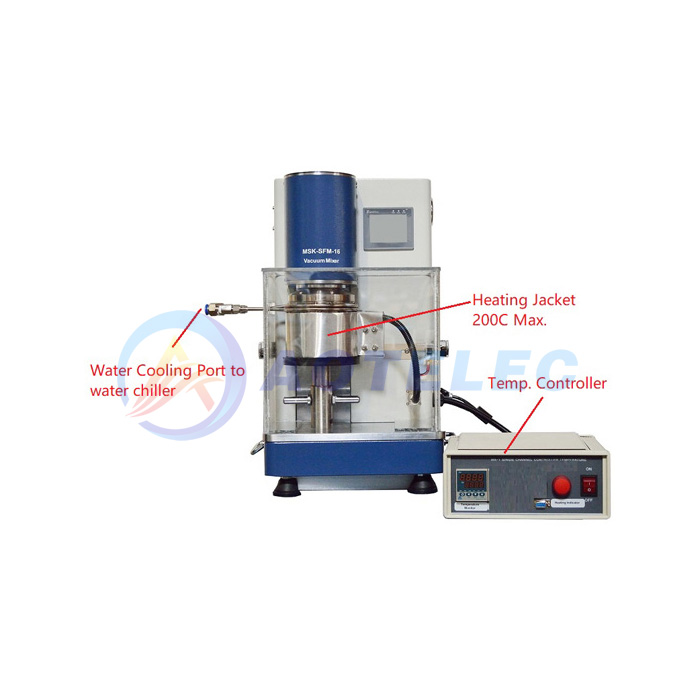

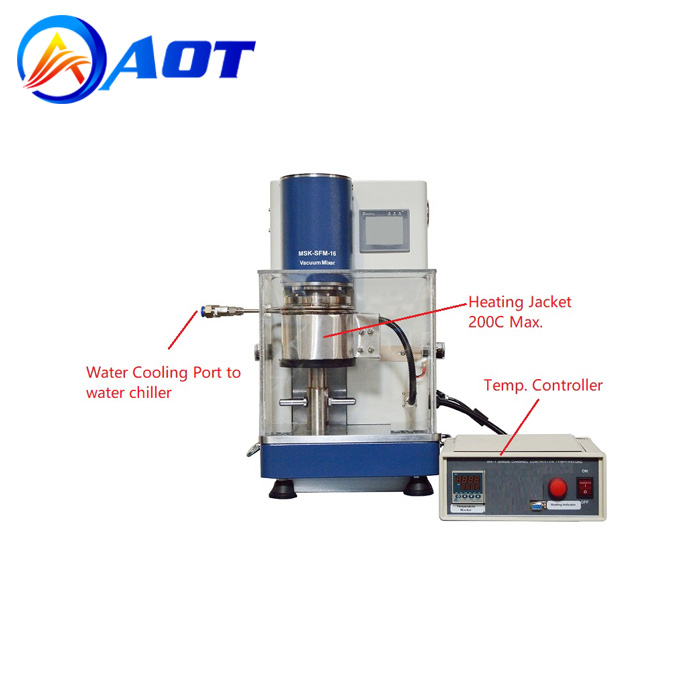

Heating Container with Temp.Control'  (Optional)

(1)The heating container is available at an additional cost. Please contact us for a quote.

(2)The heating container can be heated up to 200°C  with precision temperature control for heated vacuum mixing.

(3)The heating option ONLY comes with a 500ml heating container, please contact us if other sizes are needed.

Dimensions

330 mm x 320 mm × 570 mm (L x W x H)

Shipping Dimensions

18'' x 18'' x 24'' (L x W x H)

Net Weight

70 lbs

Warranty

One year limited with lifetime technical support
