  • Lithium battery coaxial double cylinder structure SSR viscometer (special for small samples) is suitable for 7ml-13ml
  • Lithium battery coaxial double cylinder structure SSR viscometer (special for small samples) is suitable for 7ml-13ml
  • Lithium battery coaxial double cylinder structure SSR viscometer (special for small samples) is suitable for 7ml-13ml
Lithium battery coaxial double cylinder structure SSR viscometer (special for small samples) is suitable for 7ml-13mlLithium battery coaxial double cylinder structure SSR viscometer (special for small samples) is suitable for 7ml-13mlLithium battery coaxial double cylinder structure SSR viscometer (special for small samples) is suitable for 7ml-13ml

Lithium battery coaxial double cylinder structure SSR viscometer (special for small samples) is suitable for 7ml-13ml

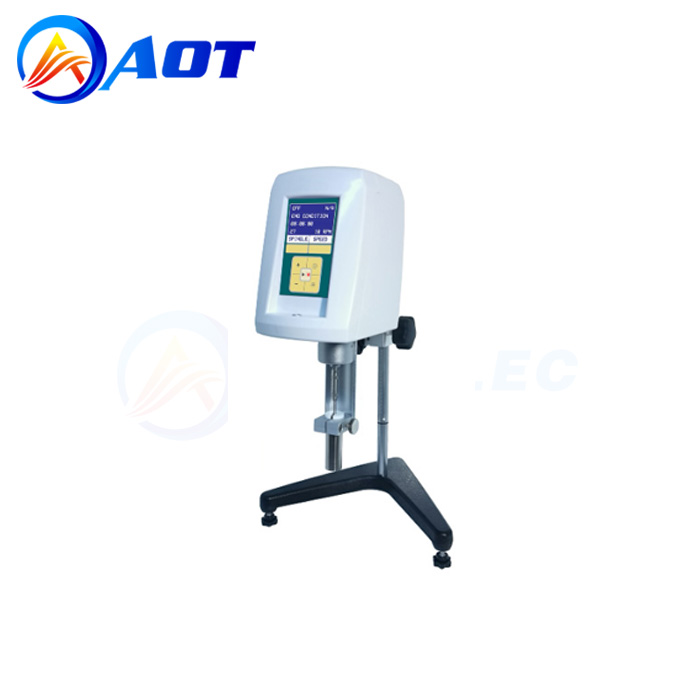

  • Product Name:Lithium battery SSR viscometer
  • AOT-LV-SSR
  • Brand Name. AOT
  • Product Orgin:China
  • Product description: A new LV-SSR Brinell rotary viscometer adopts high performance stepping motor and driver, which runs accurately and smoothly according to the program setting, and the motor runs through the torque se
  • INQUIRY

A new LV-SSR Brinell rotary viscometer adopts high performance stepping motor and driver, which runs accurately and smoothly according to the program setting, and the motor runs through the torque sensor to drive the rotor to rotate at constant speed. When the rotor is subjected to viscous resistance in the measured liquid, the force is fed back to the torque sensor, and then the viscosity data of the measured liquid can be displayed on the LCD screen after the corresponding internal processing and operation.

In the operation of the instrument, this series of instruments has the function of 100% full range value of measured value, range overflow alarm display, automatic scanning function, relying on these, users can intuitively, quickly and accurately select the appropriate available rotor and speed combination, and can save the test conditions determined to facilitate the rapid transfer and use in the future production and testing process.

model
LV-SSR
display mode
digital display
speed(r/min)
0.3/0.6/1.5/3/6/10/12/15/20/25/30/40/50/60/70/80/90/100
Total 18
rotor
18#,25#,31#,34# (standard configuration)
ULR (0#) (apolegamy)
measuring range
1- 160000 (mPa﹒s)
Sample size
ULR(0# rotor): 1-1000; 21ml
18# rotor:3 –10K; 7ml
25# rotor:480 –1.6M; 9ml
31# rotor:30 –100K; 10.5ml
34# rotor:60 –200K; 11ml
measurement error
±2% (Newtonian liquid)
repetitive error
±2% (Newtonian liquid)
output interface
Two RS232 interfaces to connect printer and computer
Temperature Probe Interface
standard configuration
outline dimension
300 × 300 × 450(mm)

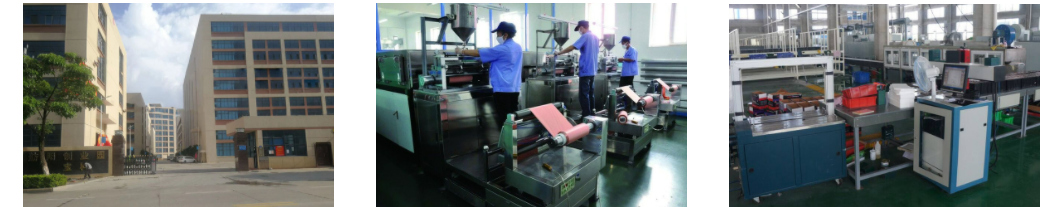

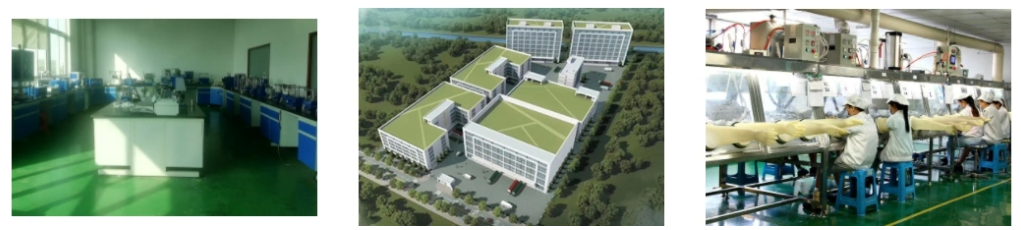

company profile
