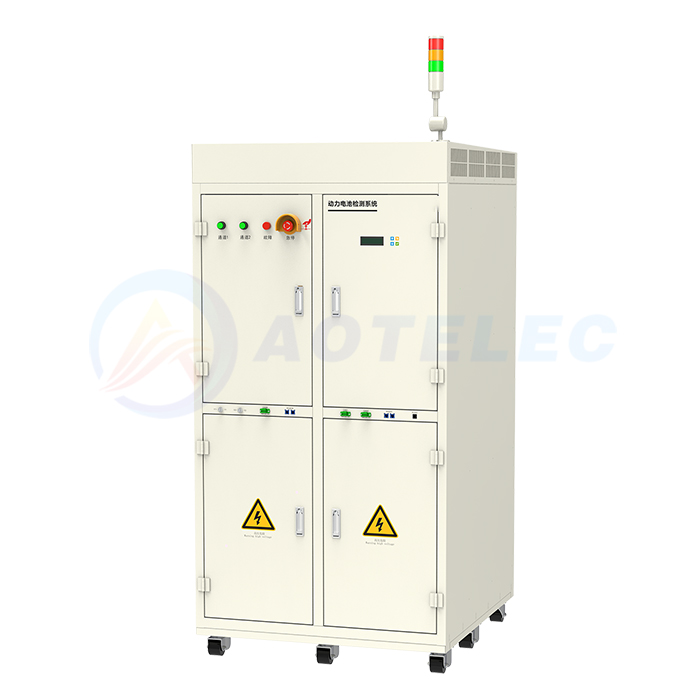

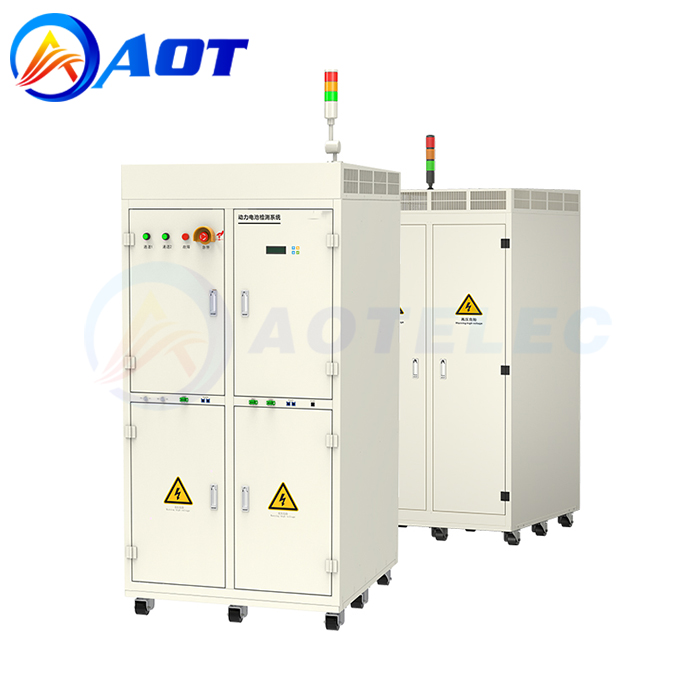

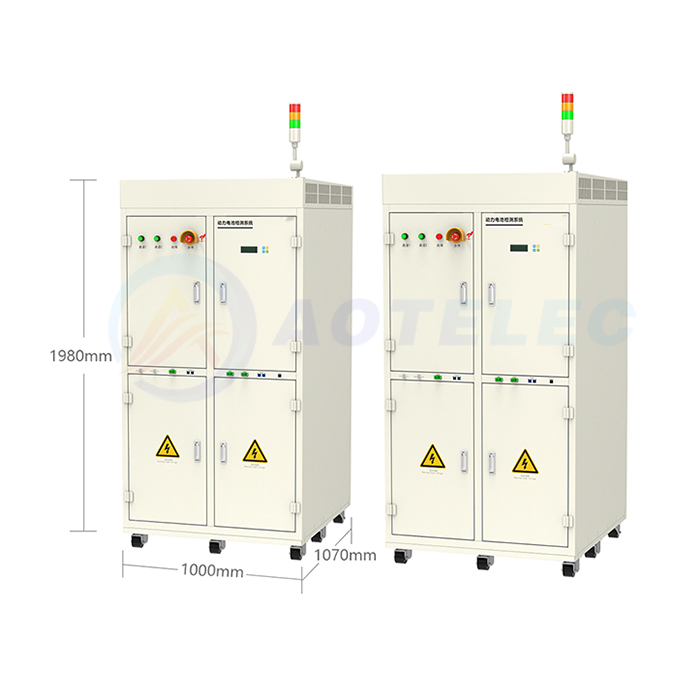

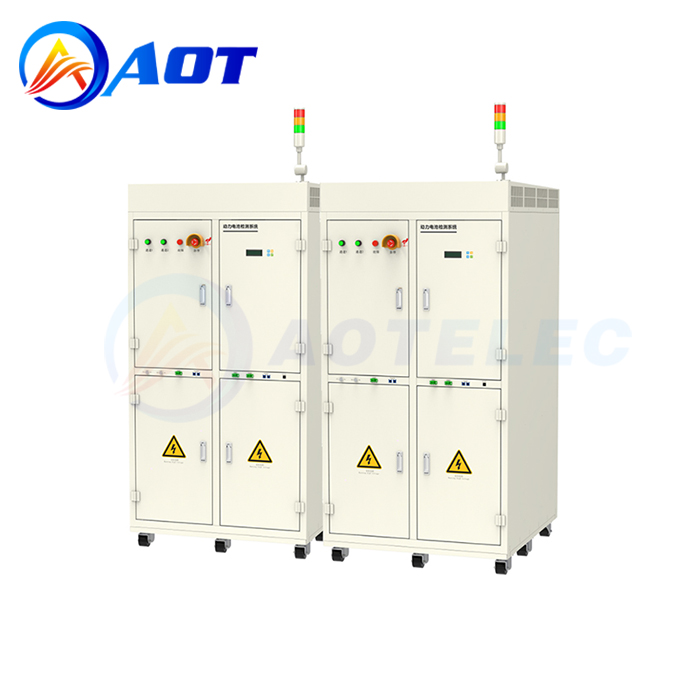

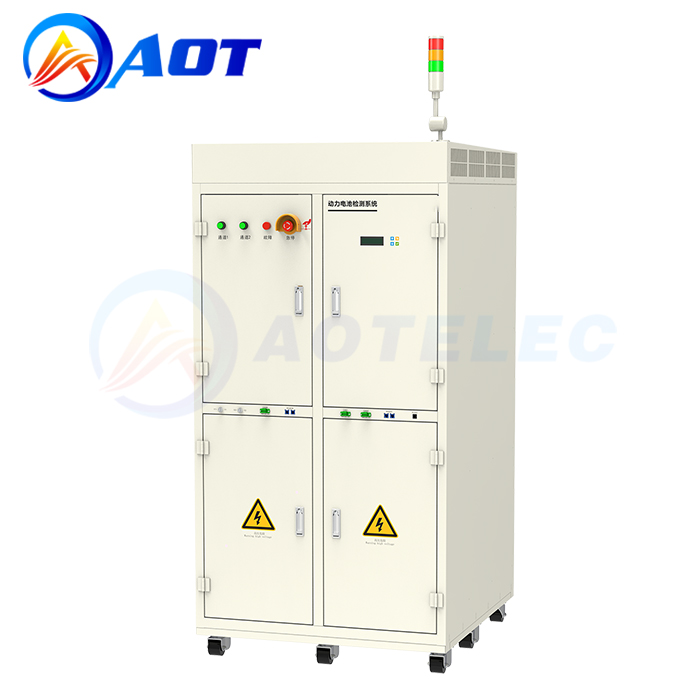

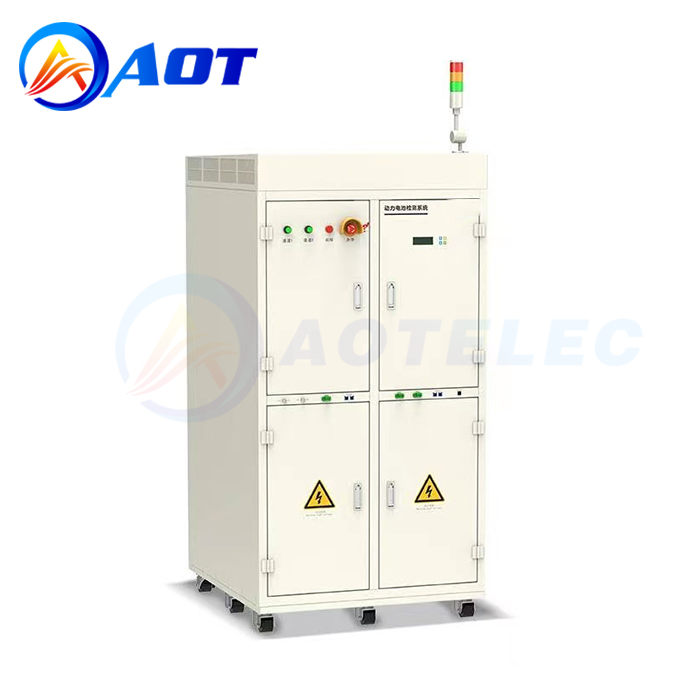

Pack Battery Charging And Discharging Tester System

Pack Battery Charging And Discharging Tester System

Product Name:Battery Charging And Discharging Tester
Model:AOT-BCD-01
Power:400KW
Origin:China
Product description: This series products have the characteristics of high precision, multi-range, parallel channels, modularization, etc.A single cabinet can support up to 2 channels, and up to 8 cabinets can be connecte
INQUIRY

This series products have the characteristics of high precision, multi-range, parallel channels, modularization, etc.A single cabinet can support up to 2 channels, and up to 8 cabinets can be connected in parallel.

It is suitable for high-voltage and high-power applications, with a voltage range of 60V to 1200V and a current range of 0~4800A.

Specifications

Input power	AC 380V ±10% / 50Hz ±5%
Power	400KW
Channel Features	The constant current and constant voltage source adopts independent double closed-loop structure
Number of main channels	2 channels
Channel control mode	Independent control
Sampling bits	24bit
Voltage setting range	Charge: 0V~100V, Discharge: 1V~100V
Range	4 ranges (1000V, 500V, 300V, 150V)
Minimum discharge voltage	1V
precision	±0.05% of FS
Output Voltage Resolution	±0.01% of FS
Output voltage ripple	≤0.5%F.S
Independent Channel Current Range	-200A～200A
Combined Channel Current Range	-400A～400A
Range	4 ranges (200A, 100A, 60A, 30A)
Precision	±0.05% of FS
Output current resolution	±0.01% of FS
Constant voltage minimum cut-off current	0.04A
Current response time	current (10% to 90% Load) hardware response time is less than 10ms
Charge and discharge conversion time	current (-90% to 90% Load) hardware response time is less than 20ms
Working step time range	≤ (365*24) hours/working step
Resolution	10ms
Range of working temperature	-10℃~45℃
Database	Centrally manage test data with MySQL database
