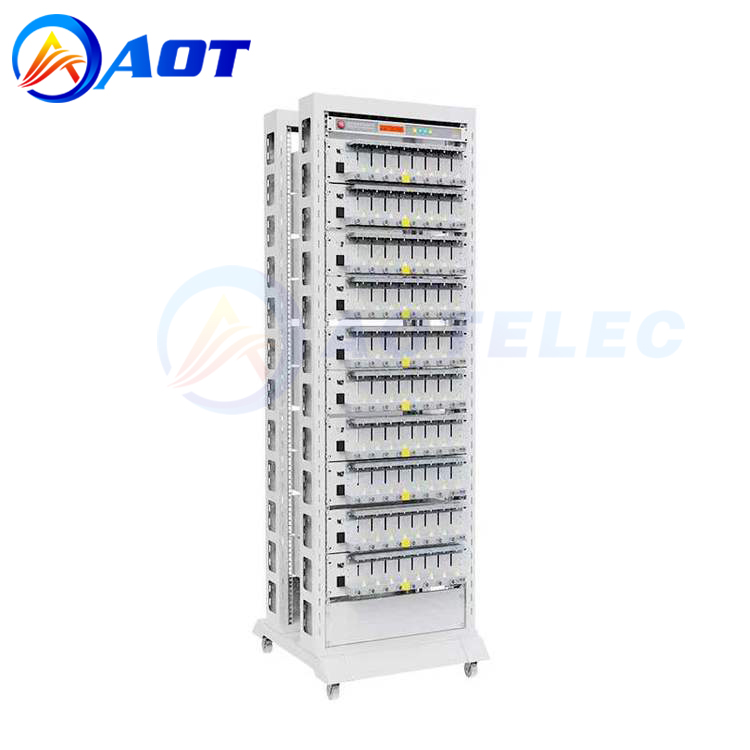

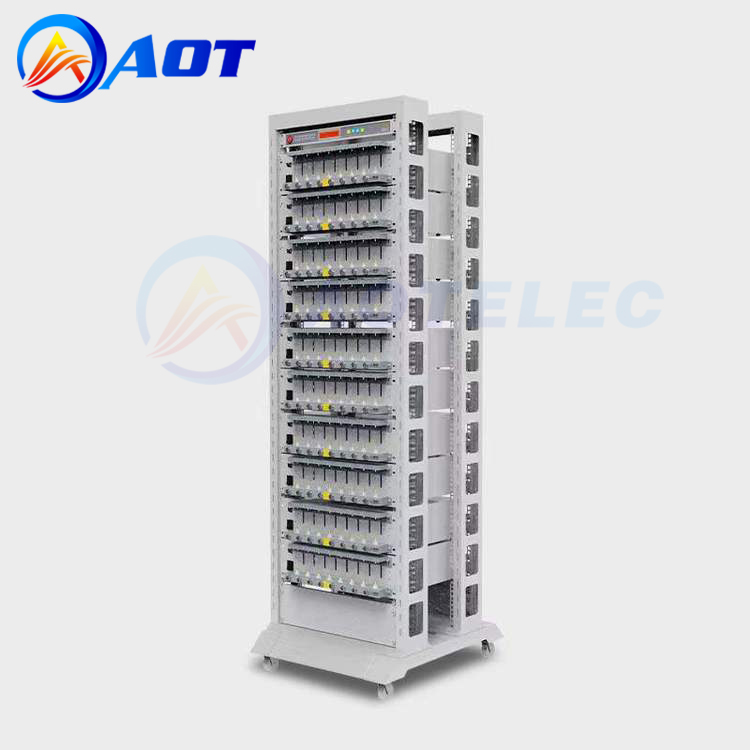

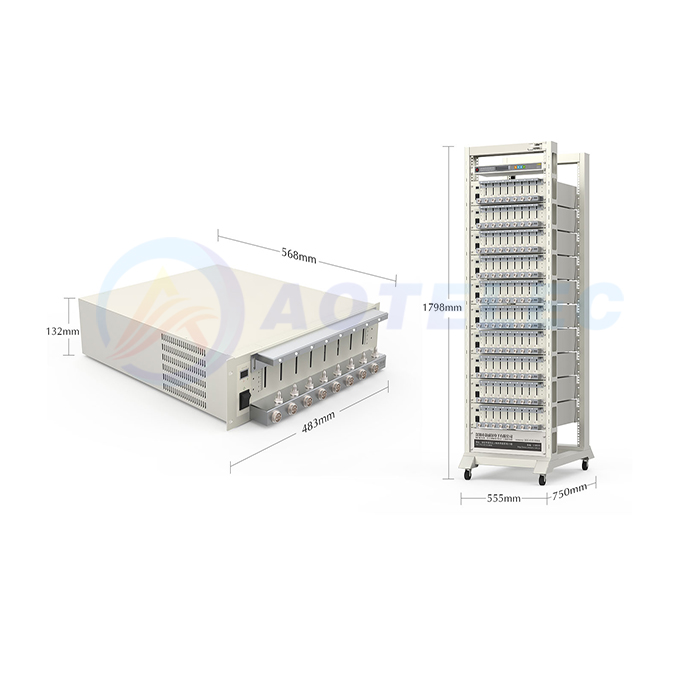

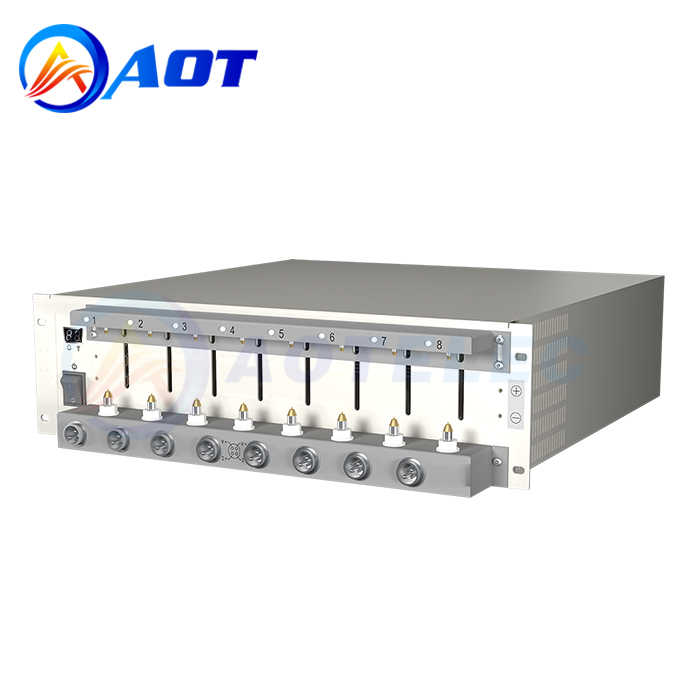

The star product in the 3C class tester, with multi-range, high response, high precision, high sampling and other performance characteristics, simple structure, modular, a single test equipment is designed for 8 channels, each channel is independently programmed, and supports a maximum of 254 Each step, the step time error does not exceed 50ms. Test mode support: constant current, constant voltage, constant current and constant voltage, constant power, constant resistance, pulse. The minimum pulse width is 500ms, each pulse step supports 32 different pulse currents, and the error of the pulse mode step time control does not exceed 1ms.
Specification:
Product Name | Battery testing system BTS-5V12A | |
Input AC | AC 220V/110V ±10% / 50Hz | |
Input power | 826 W | |
Resolution | AD：16bit；DA：16bit | |
Input impendence | ≥1MΩ | |
Voltage
| CV output range | 25mV~5V |
Min discharge voltage | the upper and lower clamps can be discharged to 2V, and the 2m line can be discharged to 2.5V | |
Accuracy | ± 0.05% of FS | |
Stability | ± 0.05% of FS | |
Output range/channel | Range1: 5mA-1A; Range2：1A-6A; Range3： :6A~12A | |
Accuracy | ± 0.05% of FS | |
Current
| Constant voltage cut-off current | 2mA; 12mA; 24mA; |
Stability | ± 0.05% of FS | |
Single channel maximum output power | 60w | |
Power | Stability | ± 0.1% of FS |
server operating system | Windows 7 or Windows 10
| |
Data output method | EXCEL2003, 2010, TXT
| |
Server Disk Configuration | 500GB
| |
Communication Interface | network port
| |
leakage current | <5μA | |
The number of channels | 8channels | |
Range of working temperature | 0°C~40°C (within the range of 25±10°C, the measurement accuracy is guaranteed: the accuracy drift is 0.005% of FS /°C) | |
