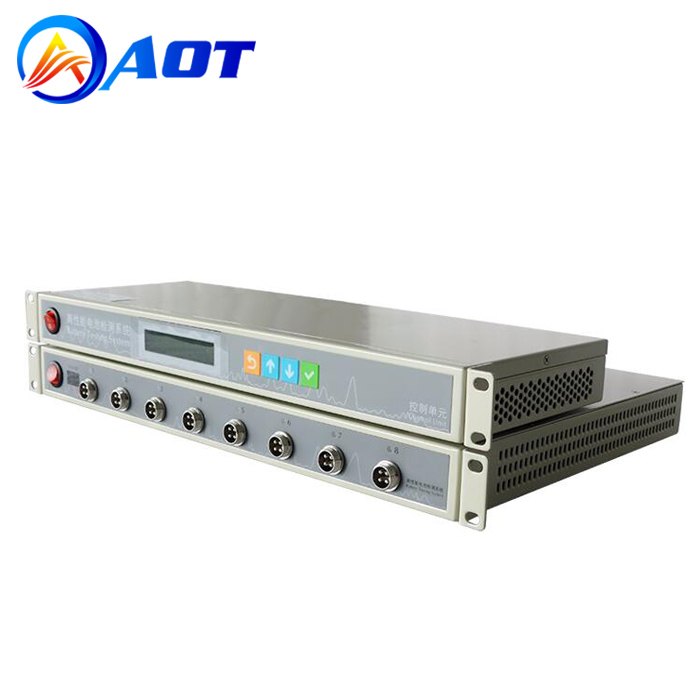

8-Channel 5V50mA Battery Analyzer for Coin Cell Testing

Model: AOT-BTS-5V50mA
Origin: China
Type: Dual Range Testing
Application: Small Battery Testing
Product description: 5V50mA dual range coin cell battery tester 8-channel battery analyzer for lab lithium ion battery research.
INQUIRY

8 Channel Battery Analyzer for Coin Cell Battery Testing

1. The battery tester is according to the international standard design, battery tester each channel has an independent constant-current source and constant-voltage source. It is used to test rechargeable( Lithium-ion battery,Ni-MH battery, Ni-CD battery and polymer battery, etc.).

2. Battery tester's internal electrical power supply uses the high efficiency switching power supply, the energy conservation effect remarkable, each power tube has the independent protection circuit, guarantees the Equipment works with safety and reliability.

3. Measure adopts four wire method, decrease contact error, increase measure precision.

4. Battery tester each channel is independent; With high efficient cooling system, Equipment can work 24 hours with full load.

Item		Technology parameters
Model		AOT-BTS-5V50mA Coin cell tester
Input Power		AC 220V±10% 50Hz
resolution		AD：16bit；DA：16bit
Input Resistance		≥10 GΩ
Input Power		25W
Voltage	Constant Voltage Range	25mV~5V
	Discharge Min Voltage	0V
	Accuracy	±0.05% of FS
	Stability	±0.05% of FS
Current	Per Channel Current Range	Range1: 5μA~1mA; Range2: 1mA~25mA; Range3: 25mA~50mA
	Accuracy	±0.05% of FS
	Constant voltage cutoff current	Range1：10uA；Range2：0.1mA
	Stability	±0.05% of FS
Power	Per Channel Output Power	0.25W
Power	Stability	±0.1% of FS
Time	Current Response Time	1ms (0-Full Range)
Time	Step Time Range	≤(365*24 )hour/step， Time Form Support 00：00：00(h、min、s、ms)
Data Recording	Record Condition	Minimum Time Interval: 100ms
		Minimum Voltage Interval: 10mV
		Minimum current interval：Range1：10uA；Range 2：0.1mA
	Record Frequency	10Hz
Charge	Charge Mode	Constant Current Charge、Constant Voltage Charge、 Constant Current and Constant Voltage Charge、CPC
Charge	End Condition	Voltage, current, relative time, capacity -△V
Discharge	Discharge Mode	CCD、CPD、CRD
Discharge	End Condition	Voltage、Current、Relative Time、Capacity -△V
Pulse	charge	CCC, CPC
	Discharge	CCD, CPC
	Min Pulse Width	500ms
	Pulse number	A single pulse step supports 32 different pulses
	Automated Switch	Automated switch from charge to discharge for each pulse
	End Condition	Voltage, Test Time
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function，Max Support 3 Layers
Protection	Software Protection	Power-down Data Protection
		Off-line Testing Function
		Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
DCIR testing		Support
Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Data Output		EXCEL、TXT、Graph
Communication Interface		Ethernet Port
Per Unit Main Channels No.		8
Dimensions		25020060(mm)
