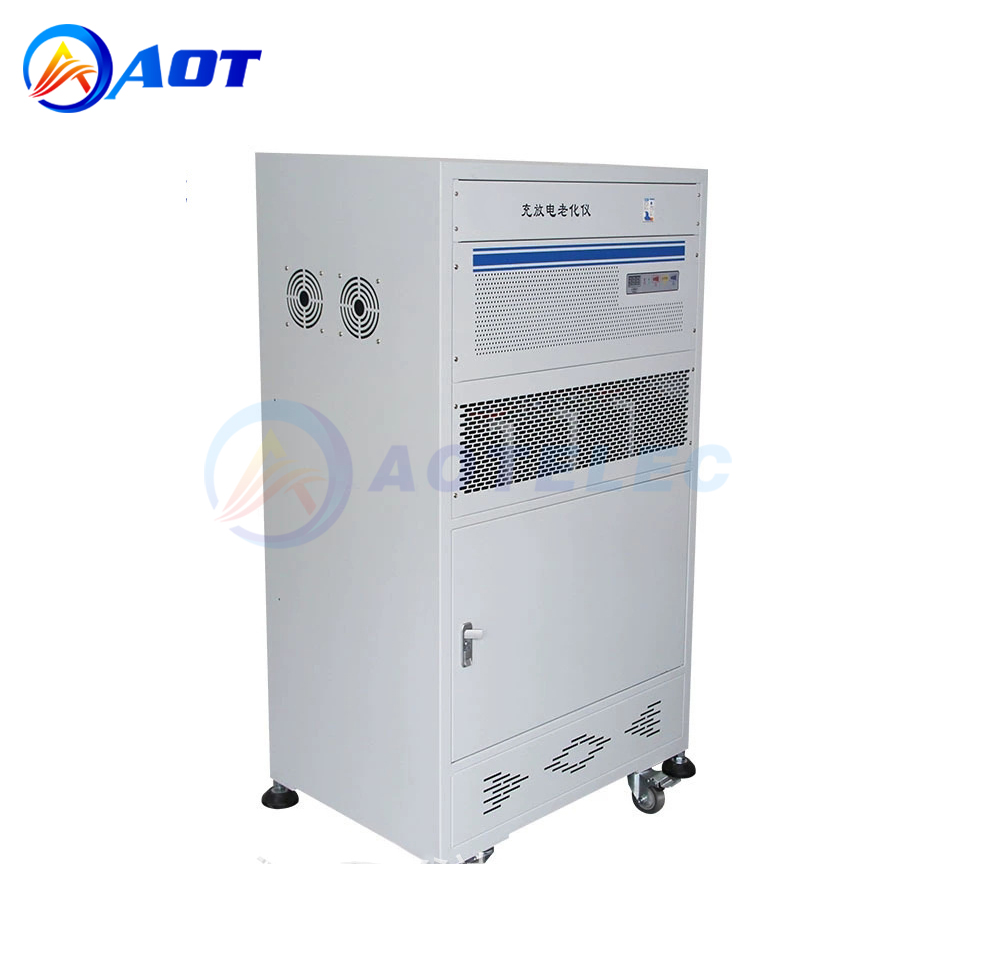

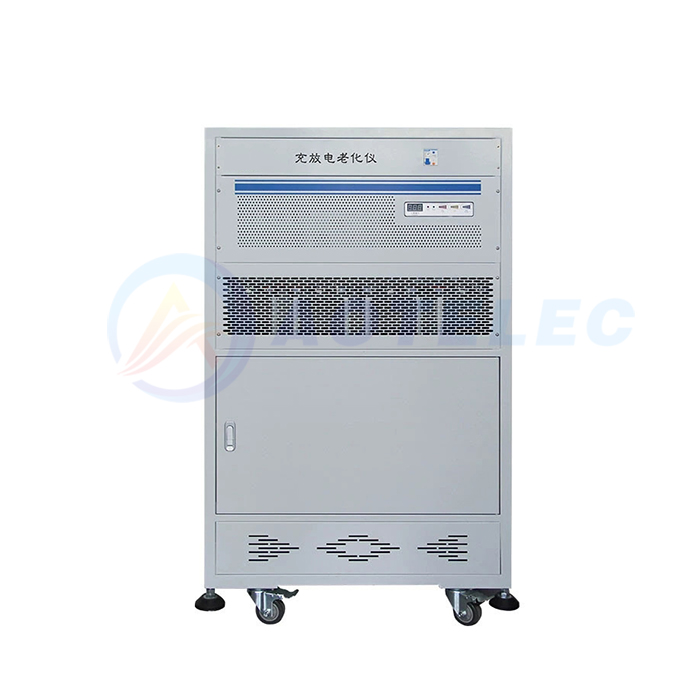

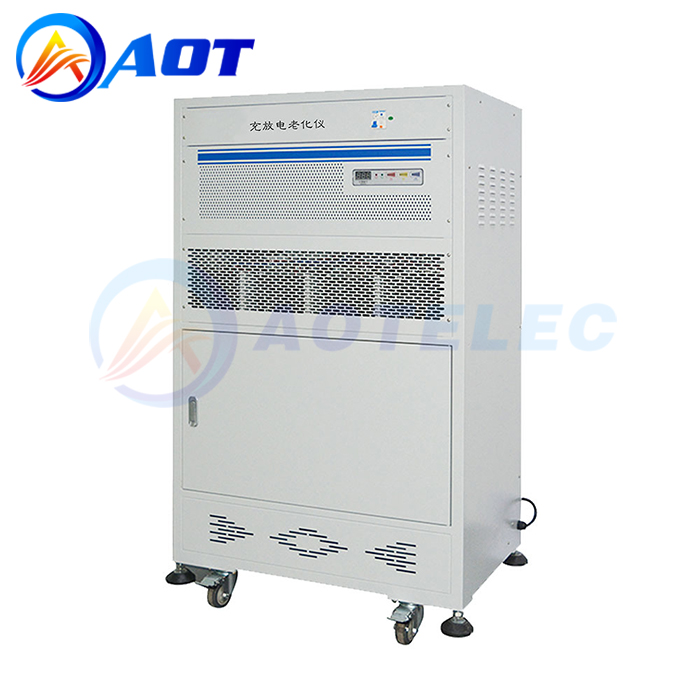

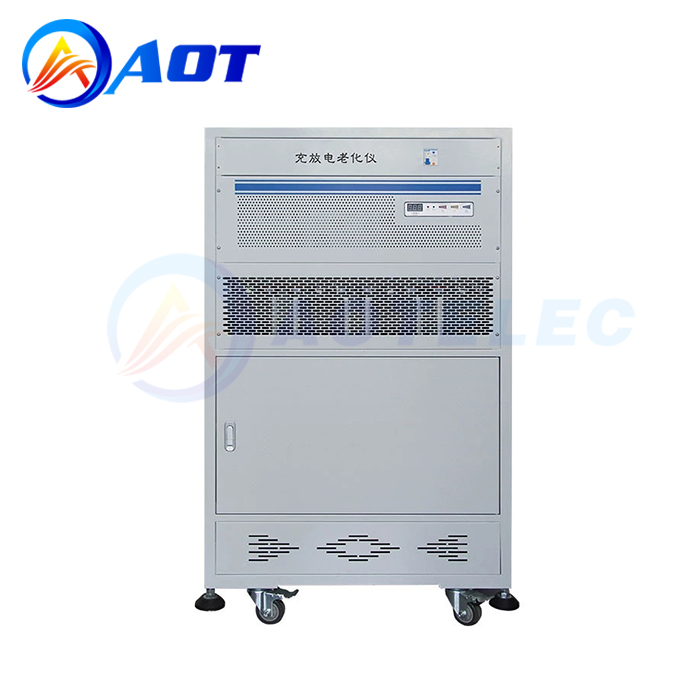

Charge Discharge Aging Cabinet For Battery Pack

  • Product Name:Charge Discharge Aging Cabinet
  • Model:AOT-BCDS100V
  • Input power:AC 220V ±10% 50Hz
  • Origin:China
  • Product description: AOT-BCDS100V aging cabinet is mainly used for charging and discharging cycle test of lithium battery, charging 20A and discharging 40A. Test items include: battery charging protection voltage, discha
  • INQUIRY


AOT-BCDS100V aging cabinet is mainly used for charging and discharging cycle test of lithium battery, charging 20A and discharging 40A.

Test items include: battery charging protection voltage, discharge protection voltage, capacity, etc.;


Main advantage:

1.Independent control of each channel

2.Automatic real-time data saving

3.With anti-backup protection function

4.Communication mode serial port and network


Specification

Product Name

Charge discharge aging cabinet

Input power

AC 220V ±10% 50Hz

Voltage

Testing range

0-100V

Accuracy

±(0.2% of reading +0.2% of range)

Electric current

Charging range

200-20000mA

Charging accuracy

±(0.2% of reading +0.2% of range)

Discharge range

200-40000mA

Accuracy

±(0.2% of reading +0.2% of range)

Charge

Constant voltage cut-off current

200mA minimum

Capacity

Accuracy

±1‰

Power

Discharge power

4000W

Time

Inspection time

Receive real time <2S

Timing range

0-999 hours/step

Data logging interval

≥5S

Number of cabinet channels

 single channel

Charge

Charging mode

Constant current and constant
voltage charging

Cut-off condition

Voltage, current, relative time,
overcharge protection.

Cycle

Cycle test range

1-999

Number of single cycle steps

100

Voltage and current
detection sampling

Four-wire sampling

Database

Use SQL database to manage test data

Host computer
communication method

Based on TCP/IP protocol, serial port

Data transmission mode

EXCEL,TXT,Chart

Communication interface

Network port

Cabinet size

L800*D520*H1370mm

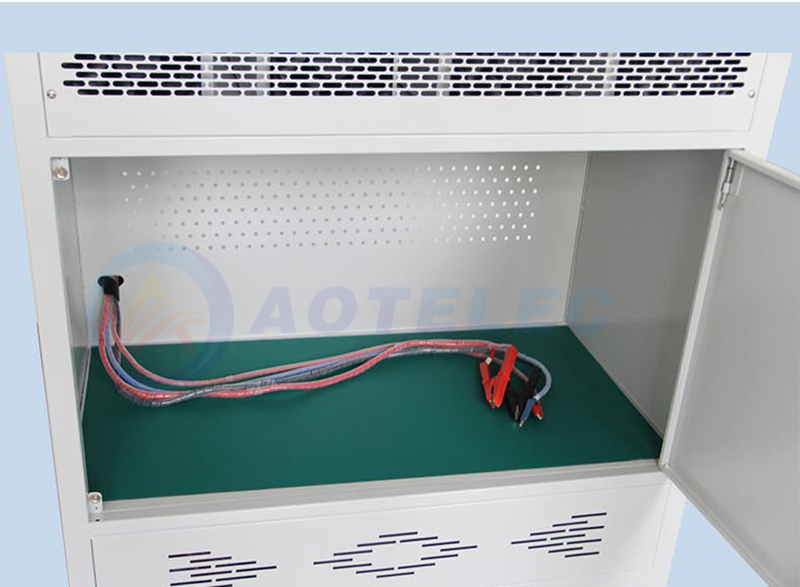

Battery space size

L720*D400*H420mm

Charge Discharge Aging Cabinet For Battery PackCharge Discharge Aging Cabinet For Battery Pack
