Home > Portable Energy Storage Battery

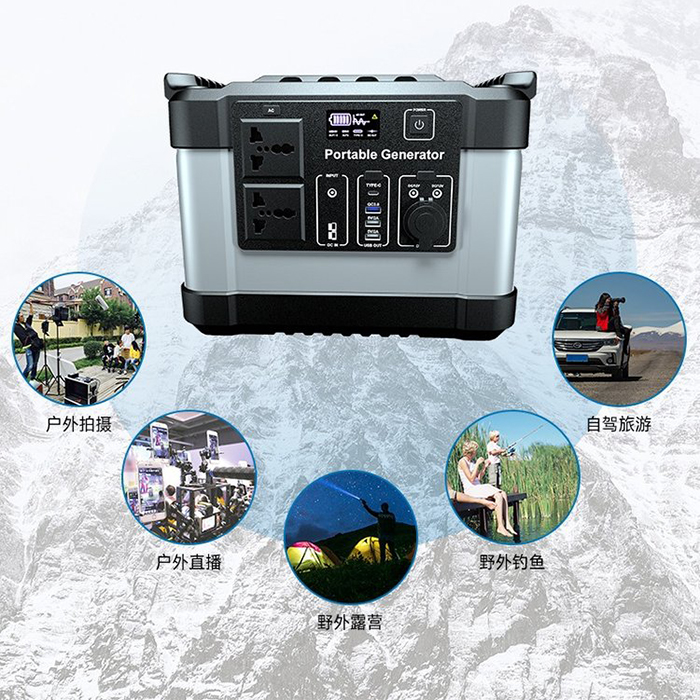

The main application fields of this portable energy storage battery are: outdoor camping, household emergency energy storage, sea fishing energy storage power supply, outdoor stalls, outdoor live broadcast activities, outdoor testing;
Main advantages:
1. The output conversion rate reaches more than 90%;
2. Good internal heat dissipation performance, fully intelligent heat dissipation and silent cooling system.
3. Stable performance, including overload, internal heating test
4. The surface of the aluminum alloy shell of the fuselage is treated with anodizing process, which is anti-burning, anti-explosion, corrosion-resistant and anti-extrusion protection products.

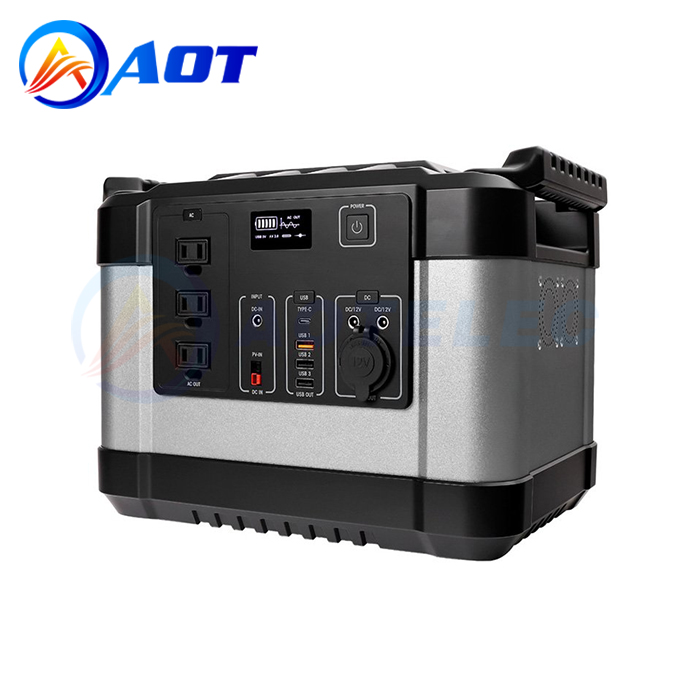

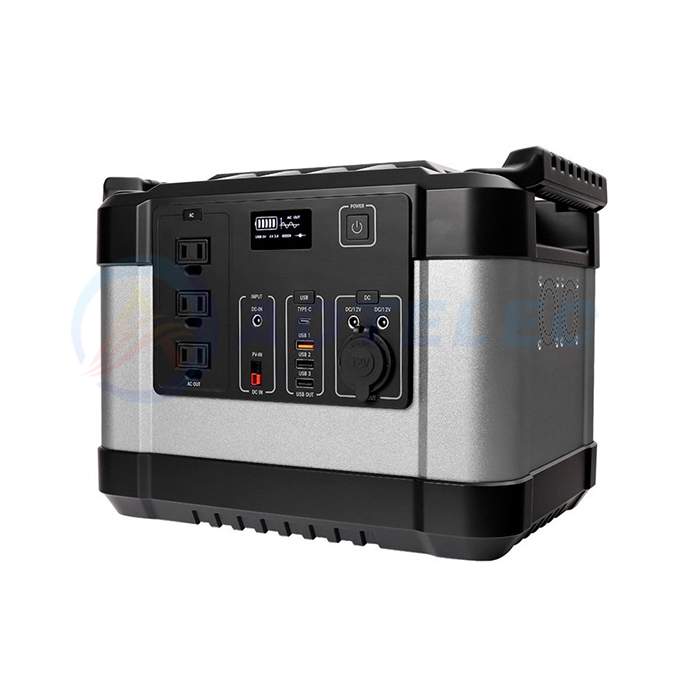

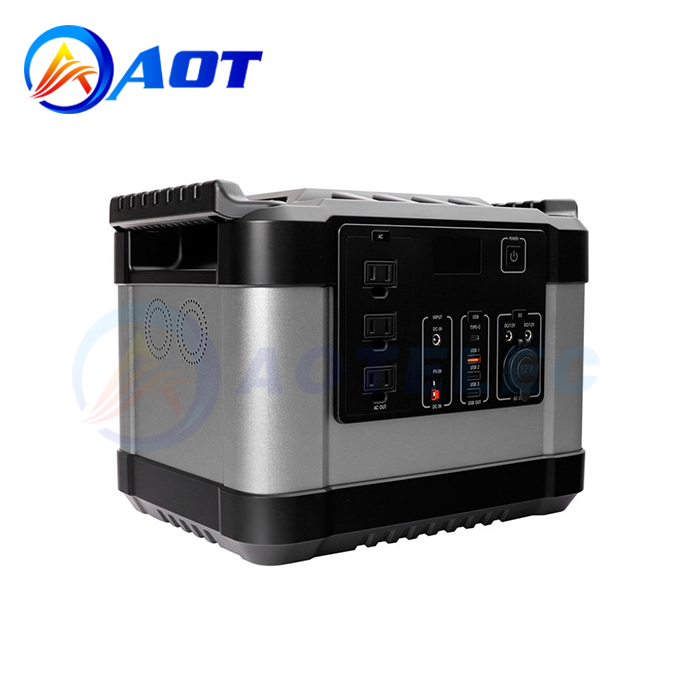

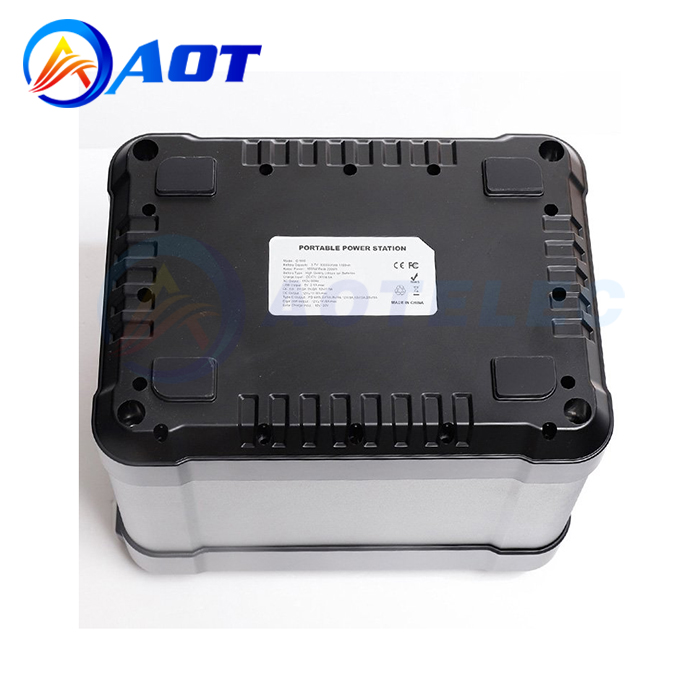

Product Name | Portable Energy Storage Battery |
Model | AOT-OD1000 |
Battery capacity | 1110Wh (300000mAh /3.7V |
Rated power | 1000W, peak 1110W |
Battery type | Lithium-ion battery |

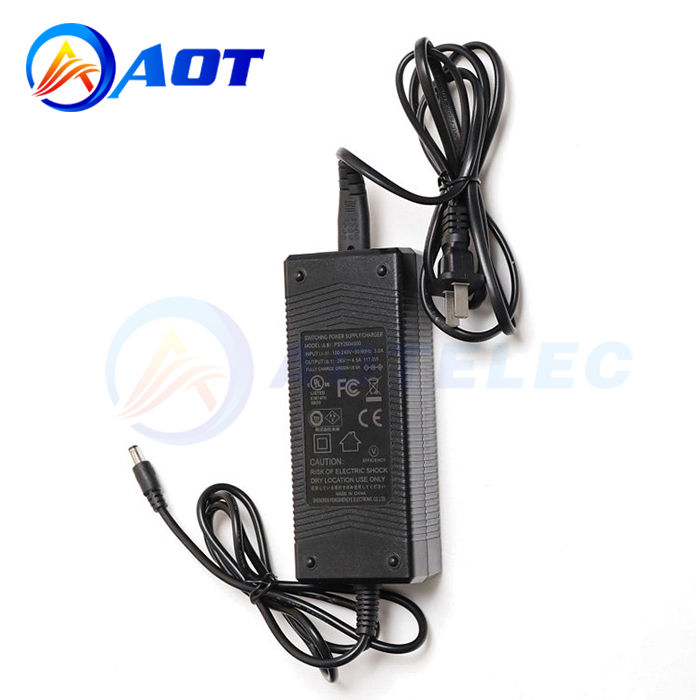

Adapter
| DC 26V/6A |
Charging input | DC 26V/6A about 7~8 hours |
AC Power | 100V~120V50Hz/60Hz or 220V~240V 50Hz |
DC 12V output | 2 x DC output 9~12V/15A Max |
AC continuous output | 1000W |
AC output | pure sine wave |
AC output | 2000W (2~3 seconds)
|
AC voltage | 110/120/220/230/240VAC±5% |
Output frequency | 50/60Hz±5% |
USB output | 3xUSB 5V/2.1A (QC 3.0: 9V 3A, 12V 2.8A)
|
Type-c output | 1x PD 60W 5V 3A, 9V 2A, 15V 3A, 20V 3A |
Working temperature | -10℃-40℃ |
Charging cycle | 500 times |
Multiple safety protection | a. Short circuit protection b. Over-current protection c. Overvoltage protection d. Low voltage protection e. Overload protection f. Over temperature protection
|
Size | L320*W230*T260mm |
Weight | 10.6kg |
Remark:
1. There is no car ignition function, for the sake of safety, the car point will generate a large current instantly and easily burn out;
2. The battery power of this model is: 1000Wh, the overall power: 1110Wh, which can be used for 120W air conditioners for nearly 8 hours;
3. Charging time: According to the built-in adapter 26V/6A, the estimated power is: 156Wh, and the charging time is 6.5 hours;
4. The solar light conversion rate is 85%, which is only 85W according to 100W conversion. G1000 can receive 150W, and it takes 13 hours to charge.
Application areas: outdoor camping, household emergency energy storage, sea fishing energy storage power supply, outdoor stalls, outdoor live broadcast activities, outdoor testing;
