Vertical Type Lab Manual Roller Press Machine for Battery ELectrode Calendering

Model: AOT-SG-100V
Rolling width: 100mm(Can be customized)
Origin: China
Warranty: 2 Years
Product description: AOT-SG-100V Small roller press machine is mainly for manual rolling of battery electrode sheet in the lab, use for small amount of metal sheet materials
INQUIRY

Vertical Type Lab Manual roller press Machine for Battery ELectrode Calendering

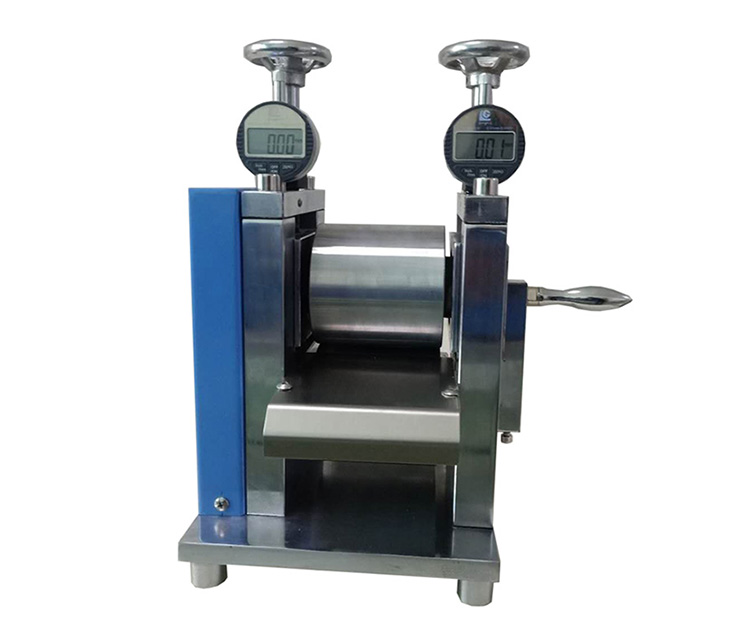

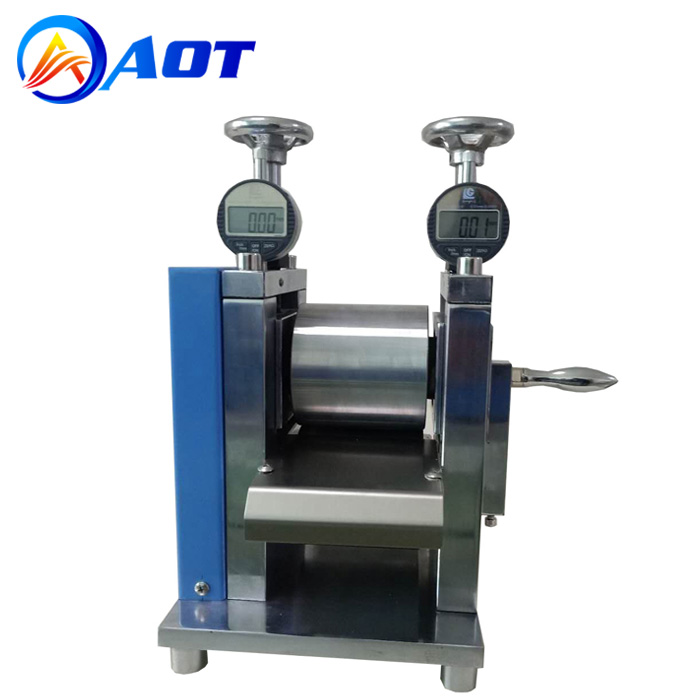

AOT-SG-100V Small roller press machine is mainly for manual rolling of battery electrode sheet in the lab, use for small amount of metal sheet materials such as gold, silver, and non-ferrous materials such as copper and aluminum, etc. It is especially suitable for thinning and increasing the density of lithium battery plates. This machine adopts gear transmission to realize the roll pressing, the rolling thickness can be adjusted, and the operation is esay.

Specification:

Model	Lab manual roller press machine AOT-SG-100V
Roller diameter	2~Φ100mm
Roller surface hardness	>HRC60
Rolling width	0~100mm / 0~200mm (can be designed according to your requirement)
Rolling thickness	0~3mm
Net weight	50KG
size	24(L) 27(W) 28(H)
Compliance	CE Certificate
Warranty	Two Years limited warranty with lifetime support
