Vertical Manual Rolling Press Machine for Battery Electrode Calendering

Vertical Manual Rolling Press Machine for Battery Electrode Calendering

Model: AOT-MRP-100V
Type: Manual
Max rolling width: 100mm
Application: Battery Electrode Calendering
Product description: This is manual rolling press machine which used for pressing battery materials, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum for lab .The rolling
INQUIRY

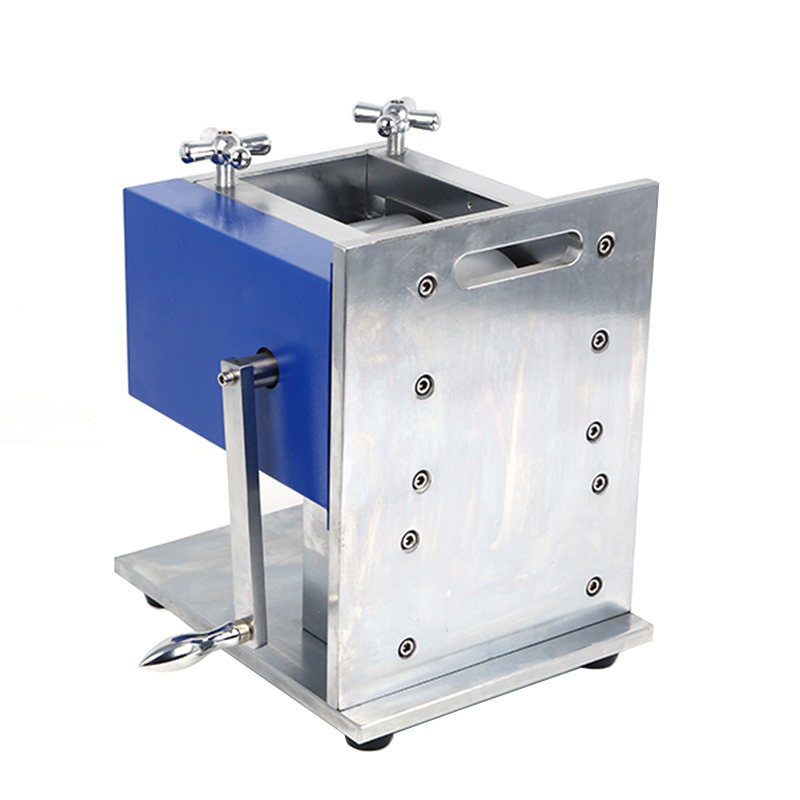

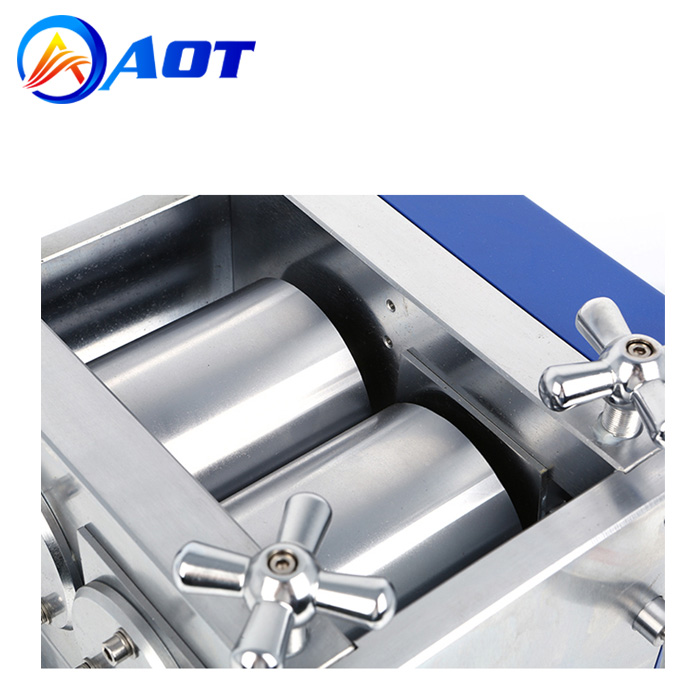

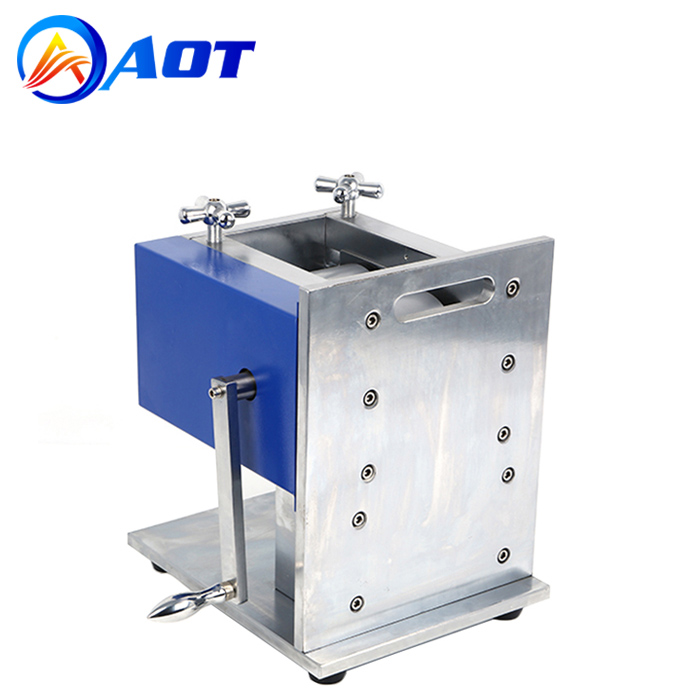

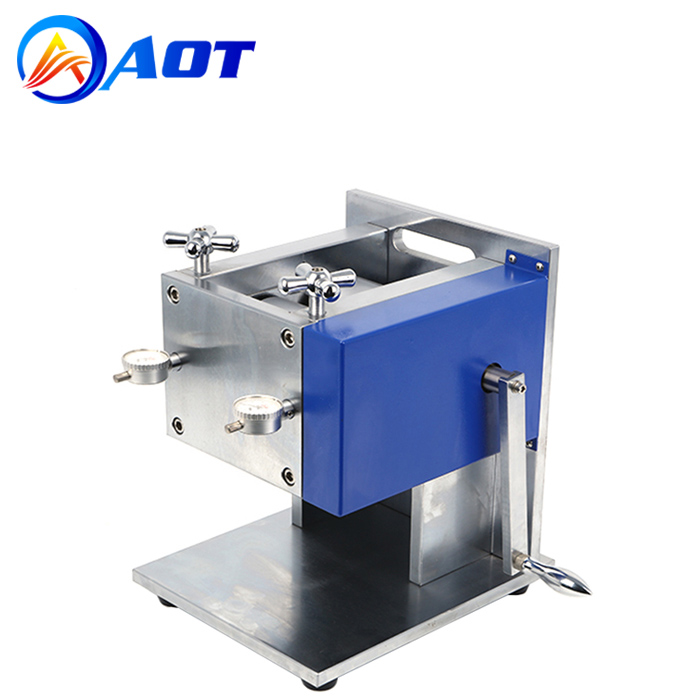

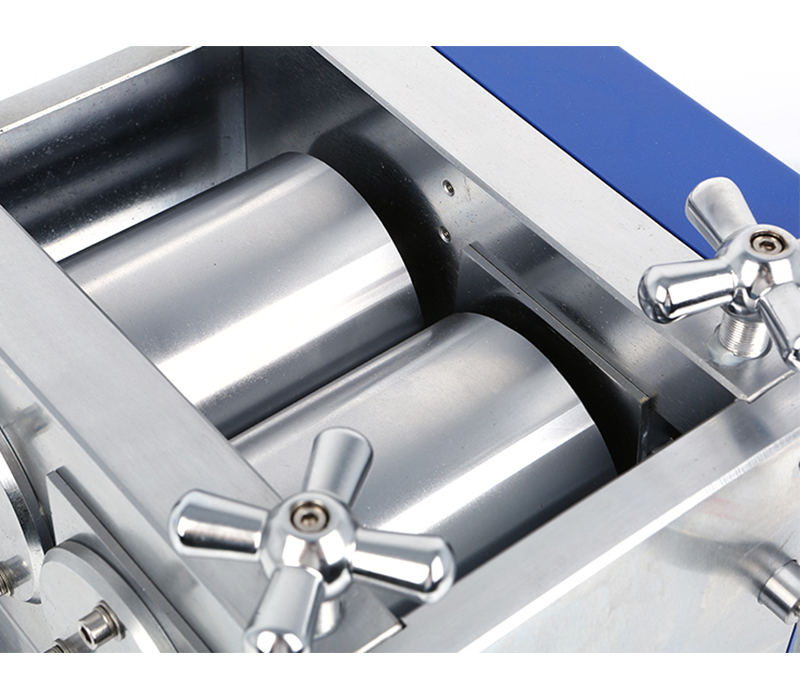

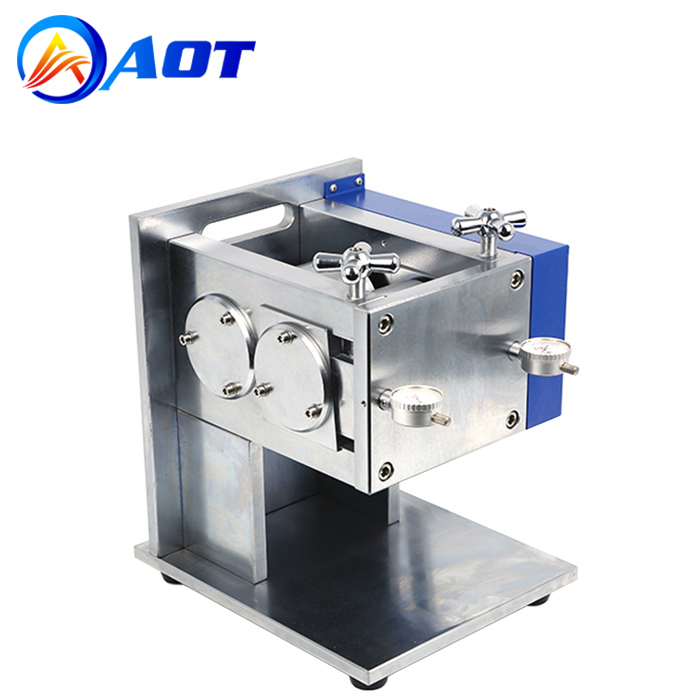

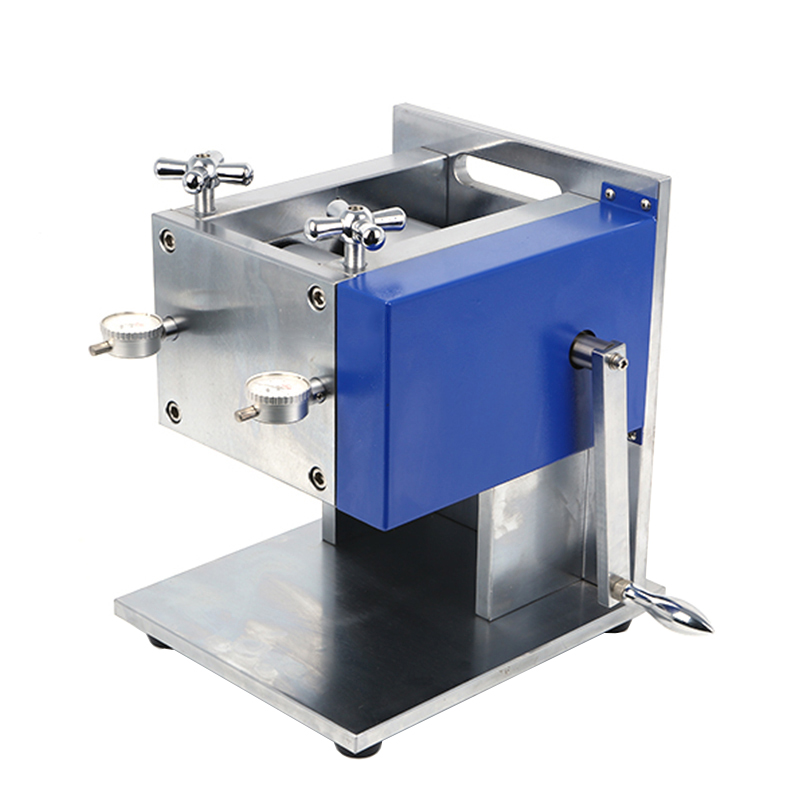

Coin cell lab equipment vertical manual roller press machine for electrode calendering

This is manual rolling press machine which used for pressing battery materials, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum for lab .The rolling thickness can be regulated, it is easy to operate.

Features :
1. Hard chrome plated on surface.Material HRC62.
2. Transparent protective plate is designed for safety operation .
3. Press gap is adjustable .
4. Rolling speed , press thickness is adjustable .

Application :

Battery lab

Battery research

Lithium ion battery lab

Material research

Trial-production

Lithium ion Battery Electrode Calendering Machine for Lab Coin Cell Research
Item Name	Rolling press machine
Roller diameter	96mm
Roller material	HRC62
Ra	>0.8um
Press gap	0-2mm adjusted
Rolling width	Max. 100mm
Rolling speed	0-50mm/s, adjusted
Weight	45KG
Dimension	About 16cm3523cm
