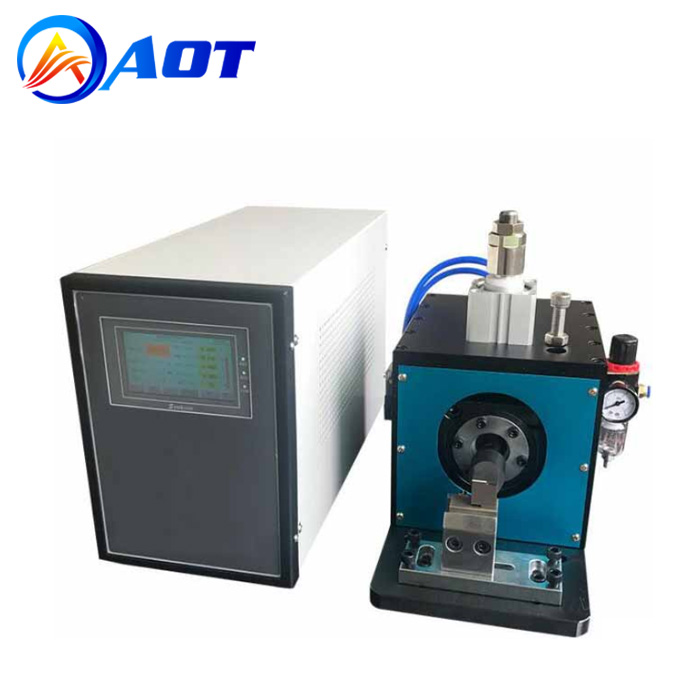

Ultrasonic Spot Welding Machine for Anode Copper Foil and Nickel Tab Welding

Model: AOT-VS-40A
Power: 1200W
Applicaton: Anode Copper Foil and Nickel Tab
Warranty: 1 year
Product description: AOT-VS-40A Ultrasonic welding machine with Automatic frequency tracking function, designed for welding Li ion battery anode electrode sheets copper foil and Ni tab onto current collectors.
INQUIRY

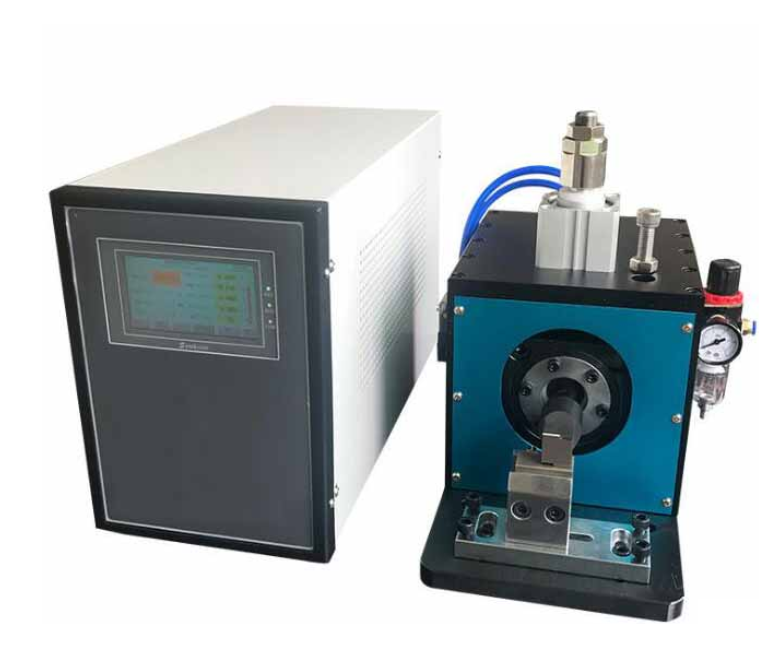

1200W Ultrasonic Spot Welding Machine for Anode Copper Foil and Nickel Tab Welding

1 AOT-VS-40A Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery anode electrode sheets copper foil and Ni tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.

2 AOT-VS-40A Ultrasonic welding machine is with Automatic frequency tracking function, you don’t need to setting frequency always, simple operation.

Model	AOT-VS-40A
Source voltage	AC220V, 50HZ, can be customized
Power	1200W
Warranty	One Year limited warranty with lifetime support
Type	Ultrasonic spot welding machine
Frequency	40KHZ
Welding time	0.05-9.99s
Air supply	0.2-0.8MPa
Welding effect	Single layer ofcopper foil andNickel Strip or Nickel-Cu strip welding , belt melt, welding firmly
Welding ability	1 Materials : Battery anode electrode. (single layer copper foil and single piece Nickel/Ni-Cu strip) 2 Copper foil thickness : 8-15um 3 Nickel/Ni-Cu strip thickness : 0.06-0.12mm 4 Welding mode : according to your requirements 5 Welding area : can be customized
Dimension (LWH)	Power box : 400170300mm Welding machine : 300200270mm
