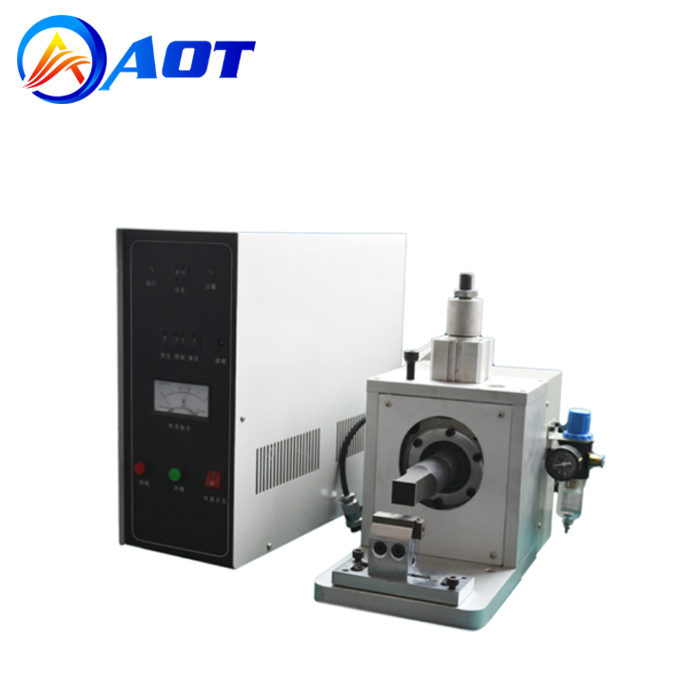

Ultrasonic Metal Spot Welder for Battery Cathode Electrode Sheets and Aluminum Tab

Model: AOT-VS-25
Name: Ultrasonic Spot Welding Machine
Applicaton: Al electrode sheet and Al tab
Warranty: 1 year
Product description: Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery cathode electrode sheets aluminum foil and Al tab onto current collectors to prepare Li-Ion pouch cell
INQUIRY

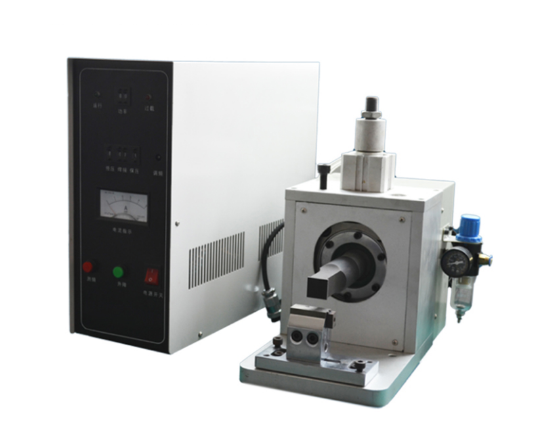

1500W Ultrasonic Metal Spot Welder for Battery Cathode Electrode Sheets and Aluminum Tab

1 AOT-VS-25 Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery cathode electrode sheets aluminum foil and Al tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.

2 AOT-VS-25 Ultrasonic welding machine is with semi-auto frequency tracking function, you don’t need to setting frequency always, simple operation.

Model	Ultrasonic Spot WelderAOT-VS-25
Source voltage	AC220V, 50HZ, can be customized
Power	1500W
Warranty	One Year limited warranty with lifetime support
Type	Ultrasonic spot welding machine
Frequency	25KHZ
Welding time	0.05-9.99s
Air supply	0.2-0.8MPa
Welding effect	Single layer of Aluminum Foil and aluminum strip welding , aluminum foil and aluminum belt melt, welding firmly
Welding ability	1 Materials : Battery cathode electrode. (single layer aluminum foil and single piece aluminum strip) 2 Aluminum foil thickness : 10-20um 3 Aluminum strip thickness : 0.08-0.12mm 4 Welding mode : according to your requirements 5 Welding area : can be customized
Dimension (LWH)	Power box : 400170300mm Welding machine : 300200270mm
