Compact Hydraulic Sealing Machine for 18650 26650 21700 32650 Cases

Compact Hydraulic Sealing Machine for 18650 26650 21700 32650 Cases

Model: AOT-HSM650
Origin: China
Suitable: 18650 21700 26650 32650
Pressure: 5Ton
Product description: AOT-H-SM650 is a compact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing con
INQUIRY

Hydraulic Sealing Machine For Cylindrical battery Cases

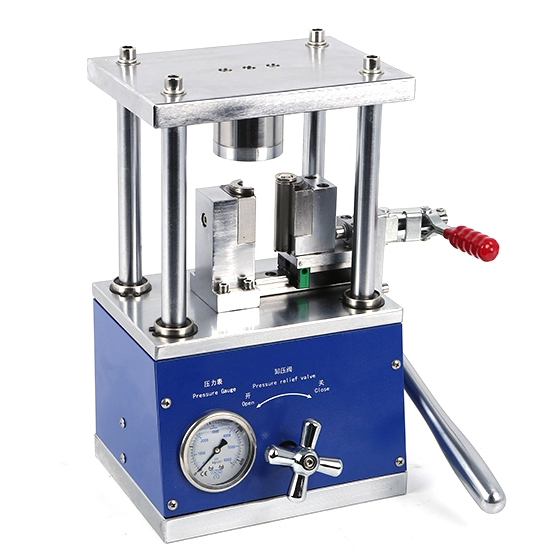

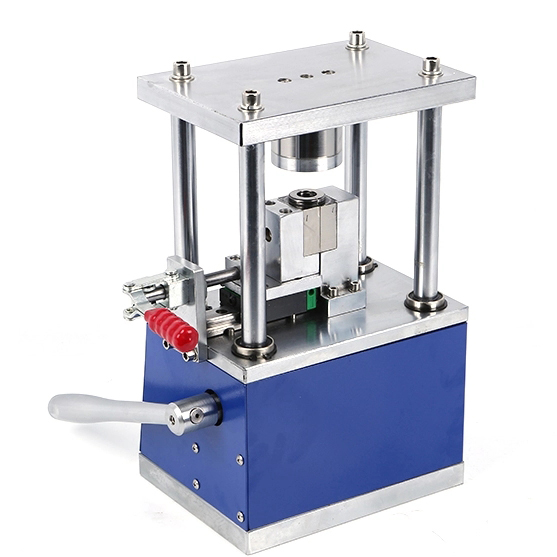

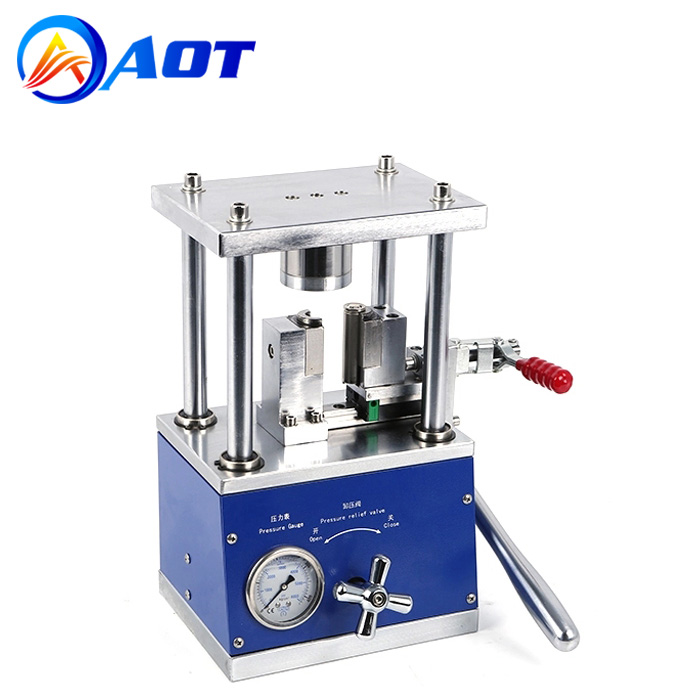

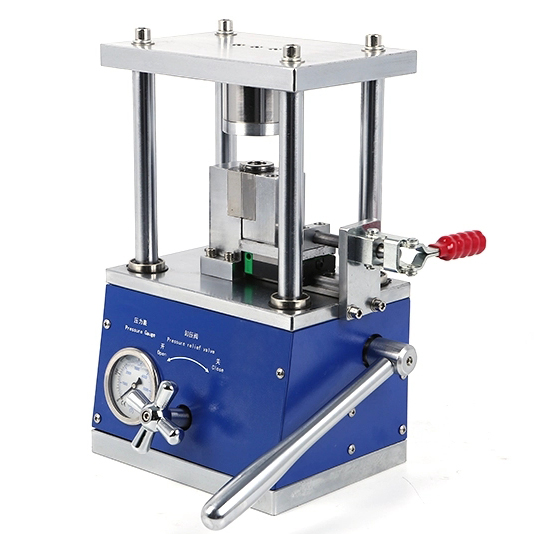

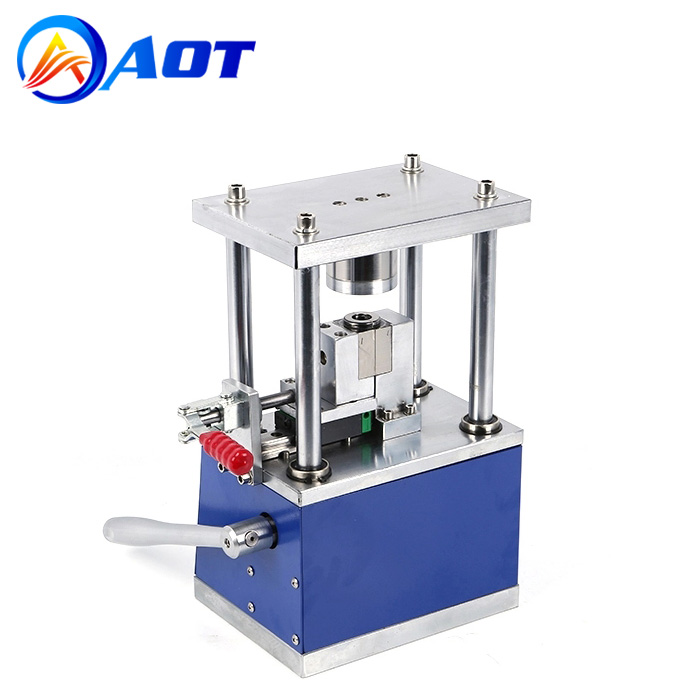

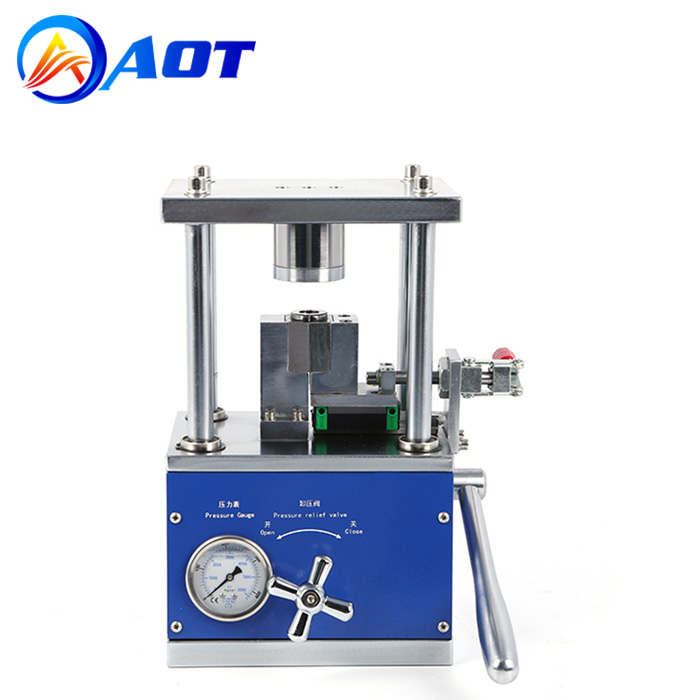

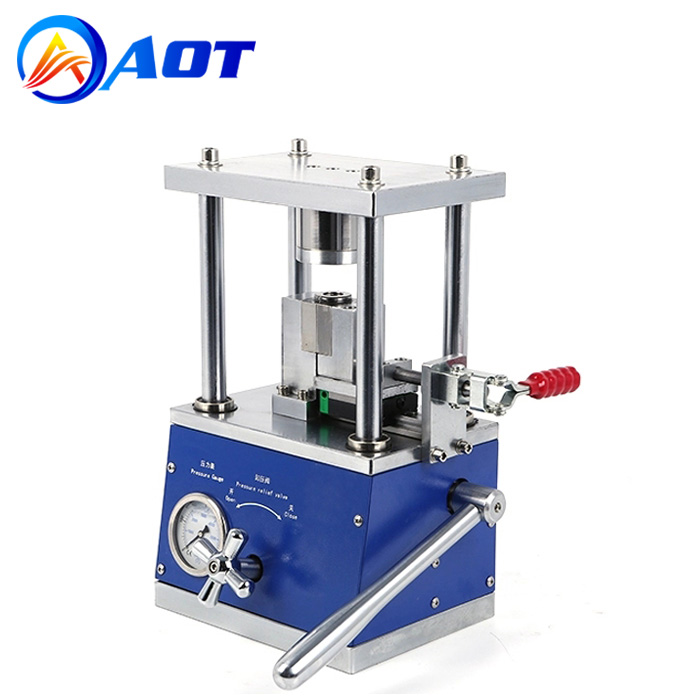

AOT-HSM650 is a compact hydraulic crimping machine for sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.

The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure

SPECIFICATIONS:

Model	Hydraulic Sealing Machine AOT-HSM650
Driving Force	Manual hydraulic pressing up to 5T

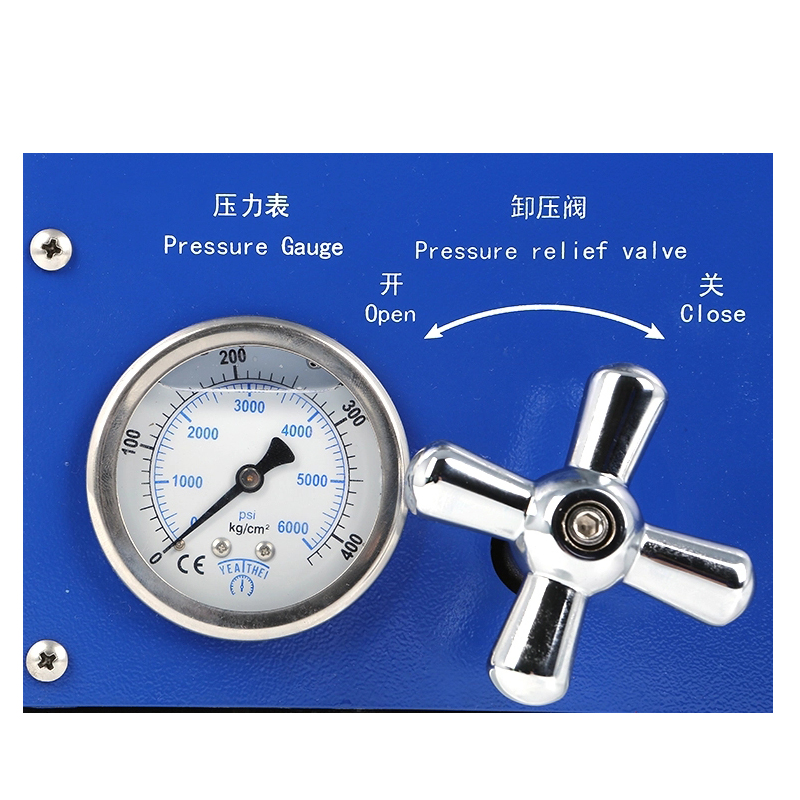

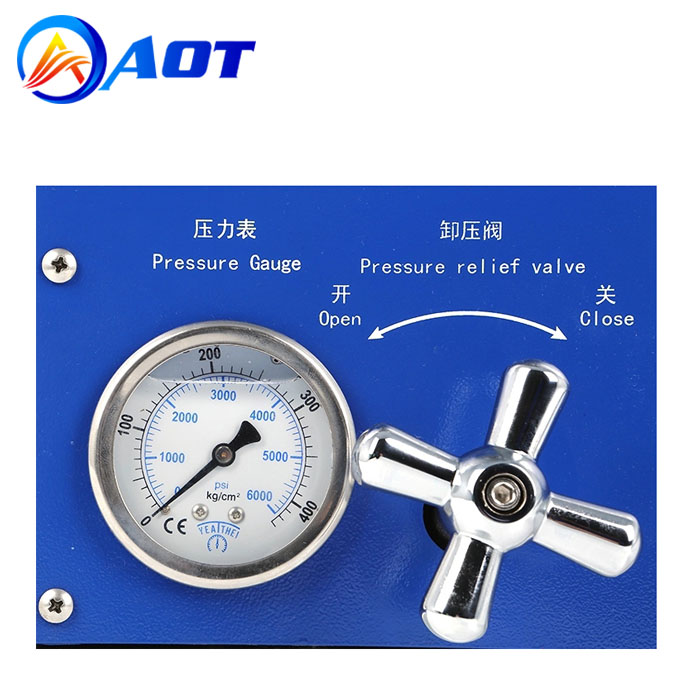

Pressure Gauge	0-3500 psi (0-250 kg/cm^2)
Body	Stainless Steel

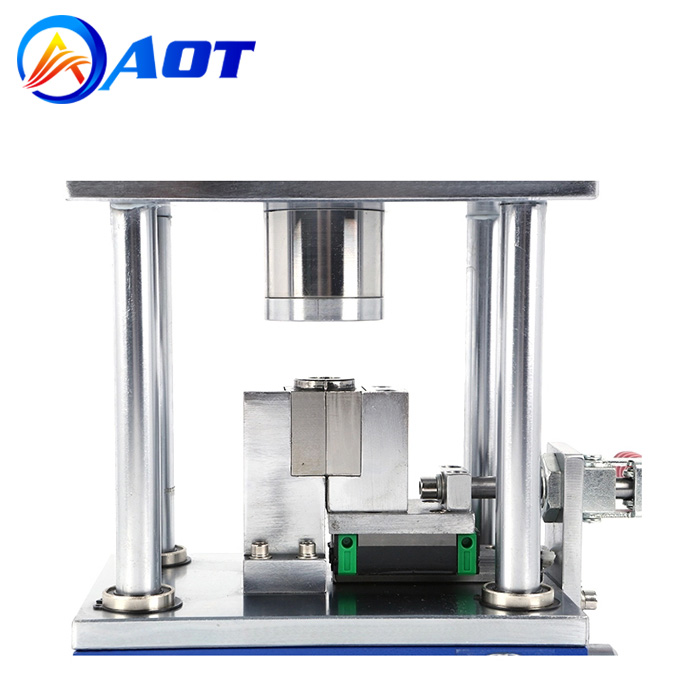

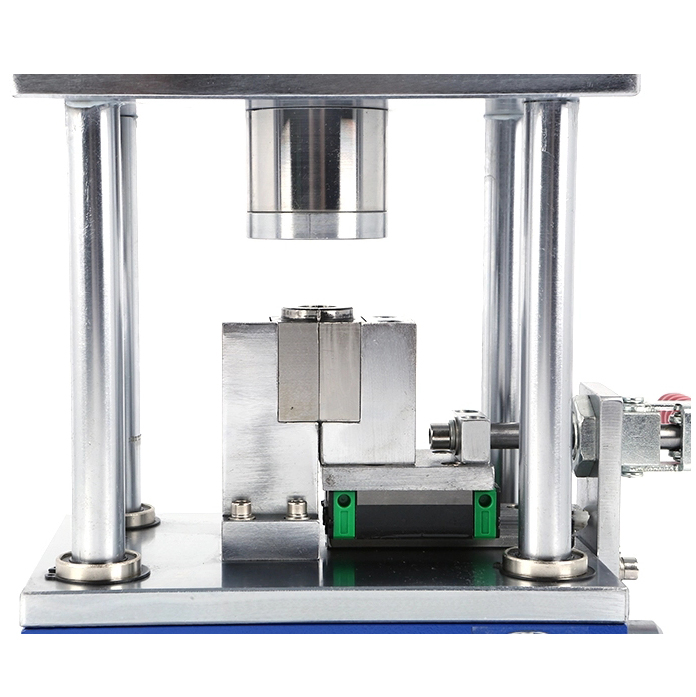

Crimping Dies	Six standard die for your choice: CR123 /18650 / 26650 / 32650 / AA /AAA
Warranty	One year limited with lifetime support
Product Dimensions	330mm(L) x 240mm(W) x 400mm(H)
Application Notes	Customized die for other cylindrical cell types is available upon request It is necessary to groove the opening end of the cylindrical case by using the grooving machine before sealing the cap Each type of cylinder cell can only be sealed specifically by certain model of equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type
Net Weight	28kg
