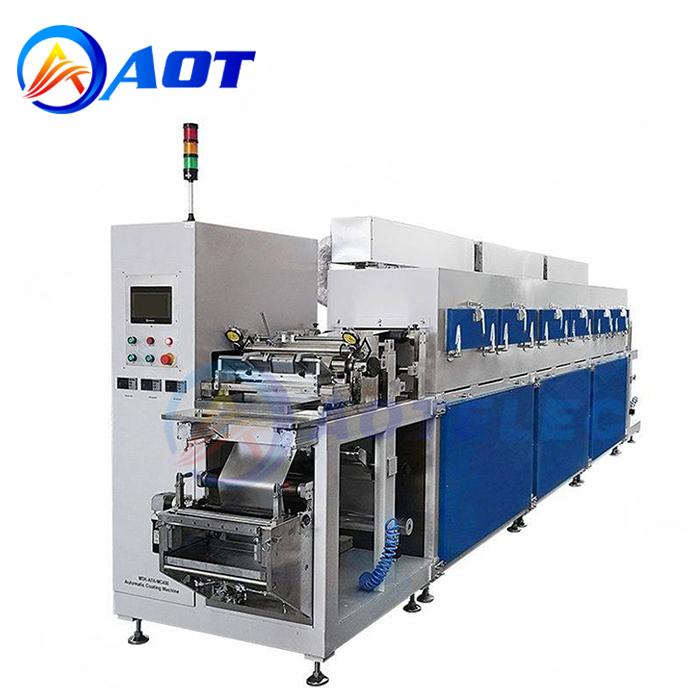

  • Product Name:versatile R2R coating Machine
  • Modle:AOT-MSK-AFA-MC400
  • Width of Guide Roller:400mm
  • Origin:China

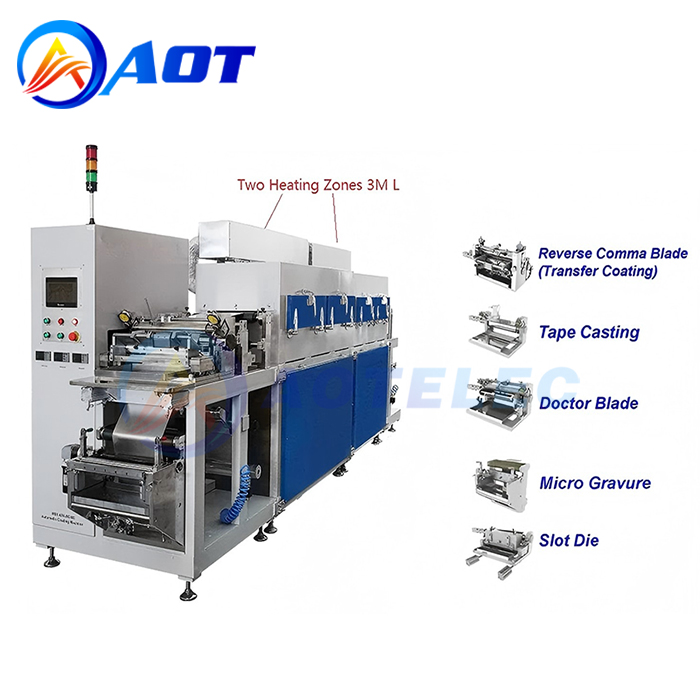

  • Product description: AOT-MSK-AFA-MC400 is a versatile R2R coating system that can adopt various coating heads such as reverse comma blade, Doctor Blade, Slot Die, and Micro Gravure and Tape Casting.
  • INQUIRY

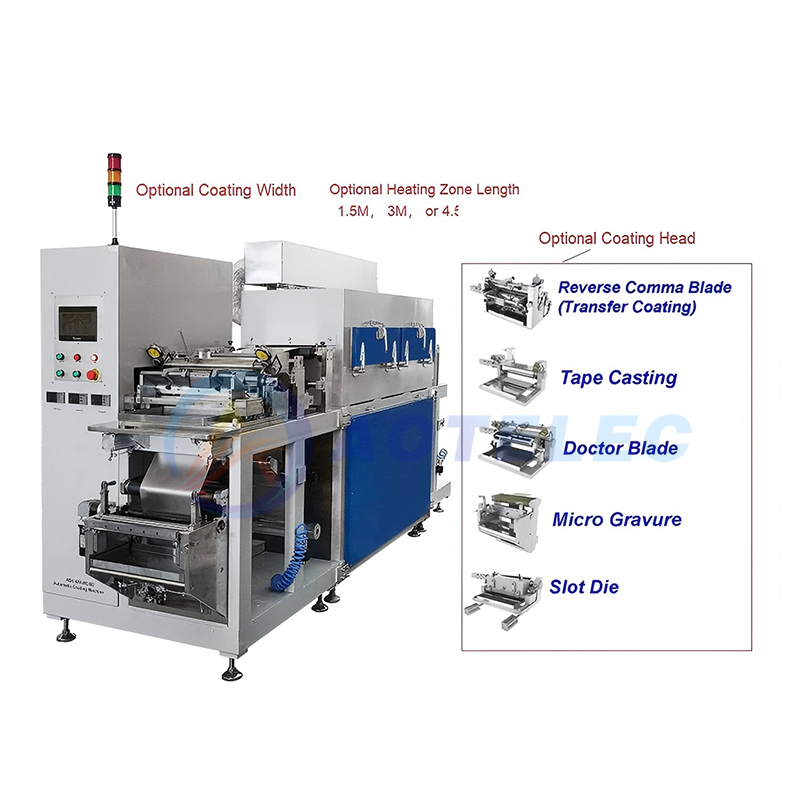

AOT-MSK-AFA-MC400 is a versatile R2R coating system that can adopt various coating heads such as reverse comma blade, Doctor Blade, Slot Die, and Micro Gravure and Tape Casting. An optional length, single or multiple zones convection drying oven with independent temperature programming is implemented for efficient slurry curing. Optional standard drying oven and curved drying oven length (1 meter, 1.5 meters, 2 meters) and quantity (1 section, 2 sections, 3 sections, etc.), feeding device, NMP monitoring, box pressure monitoring, NMP treatment, etc.



Functional Features

Series products can be equipped with coating methods, drying methods, and functional modules according to needs. This machine is equipped with extrusion coating and transfer coating functions;

Switching the coating function by changing the winding method is convenient to operate;

Extrusion coating:

1. Slot die extrusion coating has high coating accuracy and good consistency.

2. Multiple coating die heads can be configured to adapt to different coating parameters.

3. Closed loop adjustment of mold position, with good positioning accuracy.

4. The slurry operates in a closed manner without external parameter interference.

5. Continuous coating, intermittent coating, stripe coating, and grid coating can be achieved by configuring intermittent valve bodies and gaskets.

Transfer coating:

1. A wider coating window, suitable for various coating scenarios, especially in the early research and development stage.

2. It can achieve continuous and intermittent coating.

3. Measurement with comma scraper, electric adjustment of scraper height, high coating accuracy.

4. Manually adjust the coating width.

Substrate tension control, stable tape running, and roll correction during unwinding and unwinding;

Hot air oven, double-sided blowing on both sides, with high-quality drying effect;

Multiple independent temperature controls can be configured to achieve gradient temperature baking of coatings, effectively controlling cracking;

PLC control, HMI operation, convenient and easy to use;

Optional solvent treatment device;

Optional NMP concentration detection;

Configure the slurry feeding device MSK-156.



Technical Parameter:

Product Name

 Versatile R2R coating system

Power Supply

Three-phase five wire AC 380V ± 10%, frequency 50Hz, power 30KW

Air Source

0.5-0.8MPa compressed air

Coating Methods

Extrusion coating, transfer coating

Width of Guide Roller

400mm

Substrate Width

Max.380mm







Slot Die

Coating

Coating Type

Continuous coating, intermittent coating

Slurry System

Positive electrode oil-based slurry (lithium cobalt oxide, lithium iron phosphate, lithium manganese oxide, ternary), negative electrode water-based slurry (graphite, silicon-based negative electrode), supercapacitor slurry

Type

Micrometer adjustable type

Gasket

Comes standard with 1 set of gaskets (3 pieces), thickness and opening size specified by the customer

Coating Steel Roller

Ф120mmSurface chrome plating

Coating Length

Coating length 10-5000mm, blank length 10-500mm

Two Sided Alignment

± 0.5mm (length direction)

Intermittent Valve Body

Pneumatic control

Mold Head Movement

Motor adjustment







Reverse Comma Blade (Transfer Coating)

Coating Type

Continuous coating, intermittent coating

Slurry System

Positive electrode oil-based slurry (lithium cobalt oxide, lithium iron phosphate, lithium manganese oxide, ternary), negative electrode water-based slurry (graphite, silicon-based negative electrode), supercapacitor slurry

Coating Width

50-360mm,, adjustable through baffle

Coating Steel Roller

Ф120mmSurface chrome plating

Coating Roller

Ф120mmSurface EPDM rubber

Coating Scraper

Ф100mmSurface chrome plating

Scraper Adjustment

Motor adjustment

Coating Length

Coating length 10-5000mm, blank length 10-500mm

Two Sided Alignment

± 0.5mm (length direction)

Box Capacity

Approximately 2L (coating width 360mm)

 Guide Roller

Diameter of 60mm, aluminum roller surface hard oxidized

Drying Oven

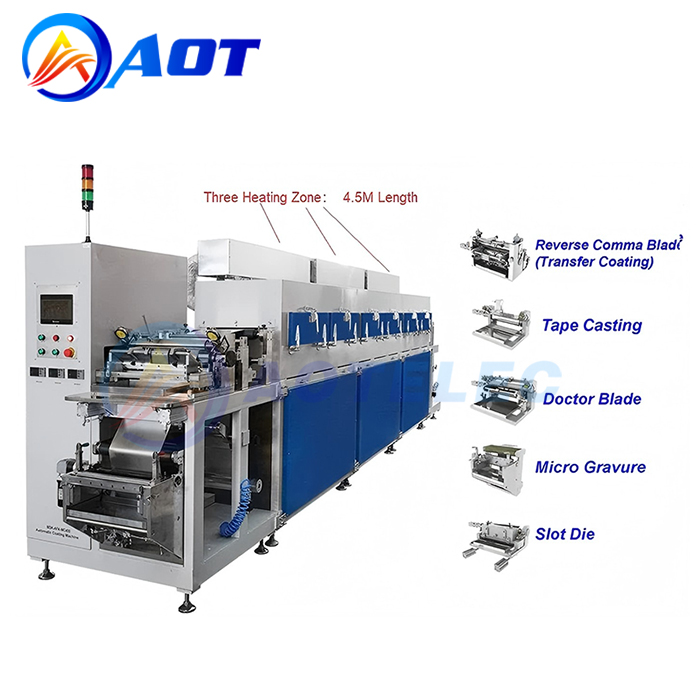

Single section 1.5m, total 3 sections (standard configuration includes hot air drying)

Drying Temperature

Max 150 ℃± 5 (excluding working position, head and tail, and oven connection), adjustable

Air Intake

1 unit per section, centrifugal fan, interface: Ø 120mm (5-inch Aluminum Foil duct)

Exhaust

1 unit in total, centrifugal fan, interface: Ø 145mm (6-inch aluminum foil duct)

Heating Box

Single section with 9 U-shaped heating tubes, each with 1KW

Tension Control

Max.80N

Roll Diameter

Max.Ф300mm

Retractable Core

3-inch expansion shaft

Operation Direction

Along the direction of foil transfer, the right side is the operation side

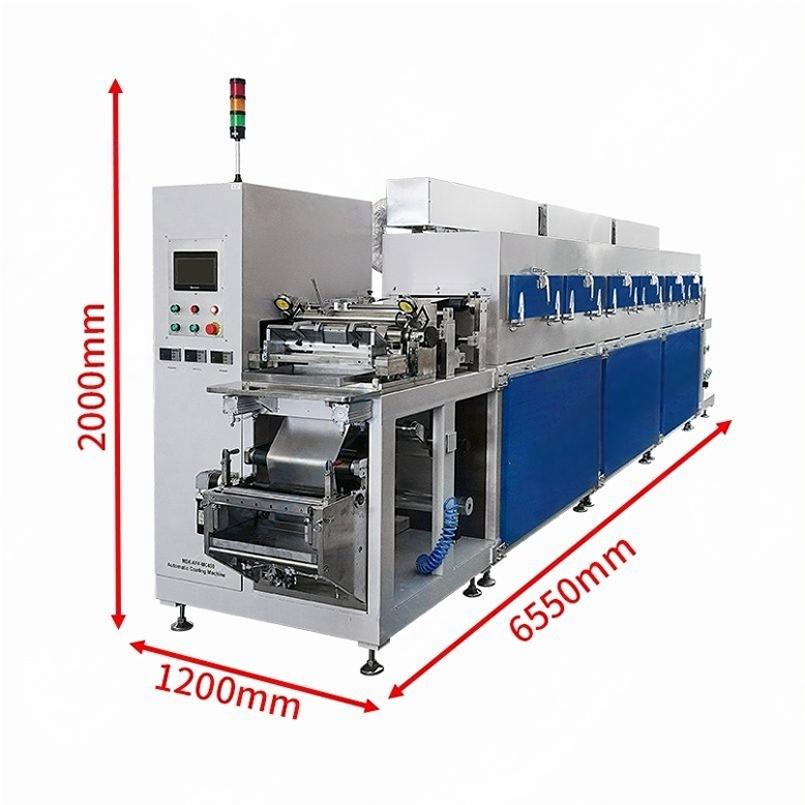

Coating Machine Size

L6550xW1200xH2000mm

Feeding Device Size

L780xW230xH810mm

Coating Machine Weight

2.4T

Feeding Device Weight

68kg
