Split Pouch Cell for Solid State Battery Research

  • Product Name;Split-able pouch cell
  • Model:AOT-EQ-PSPC
  • Pressures :10 MPa
  • Origin:China
  • Product description: AOT-EQ-PSPC is a split-able pouch cell with pressures up to 10 MPa. Can be customized in various sizes upon request. It mainly studies the effect of pressure on the performance of solid-state batterie
  • INQUIRY

AOT-EQ-PSPC is a split-able pouch cell with pressures up to 10 MPa. Can be customized in various sizes upon request. It mainly studies the effect of pressure on the performance of solid-state batteries, and can also be used to manufacture solid-state soft-pack batteries by compressing fixtures.

SPECIFICATIONS:

Product name

Split-able pouch cell

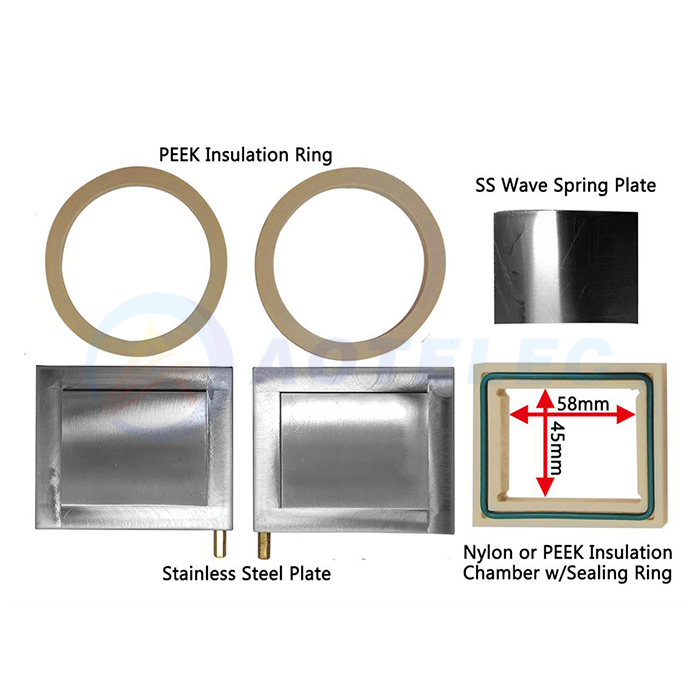

Material

Pushing plates (top and bottom) : stainless steel.

Pouch cell frame: Nylon.

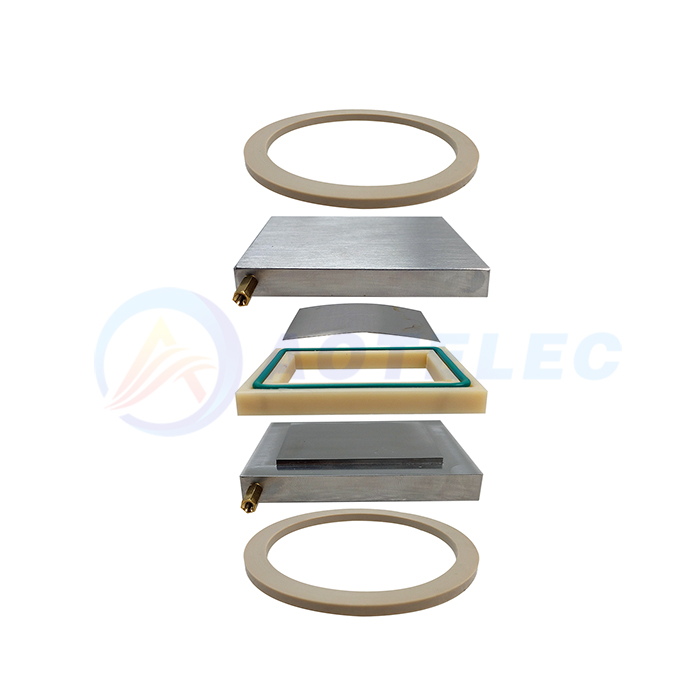

Structure

One stainless steel spring plate is included for single layer pouch cell assembling

Optional mechanical jig fixture and spacer are available from Product Options for sealing the O-rings and applying pressure to the battery assembly

Max. Working Pressure

20 MPa for Peek materials

10 MPa for Nylon materials

Product size

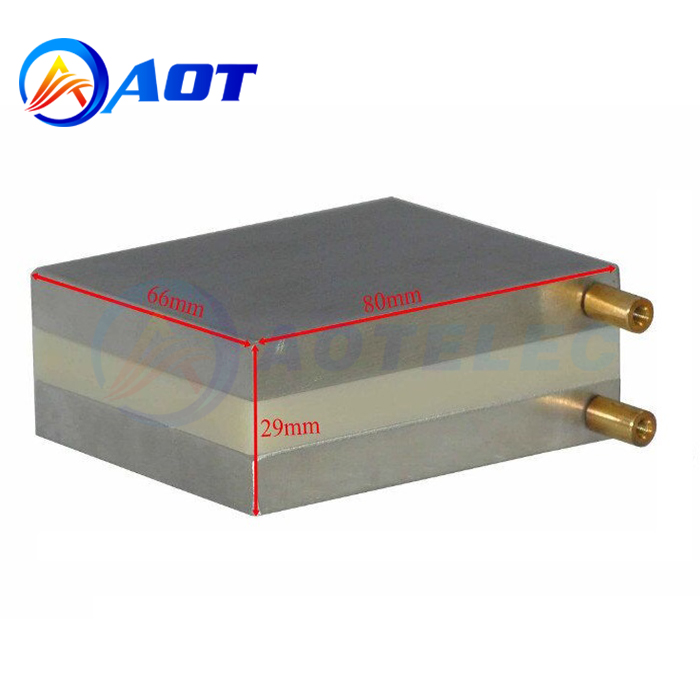

L80x W66 x H29 (mm)
Cell interior: L58 x W45 x H4 (mm)

Split-able pouch cell

Split-able pouch cell
