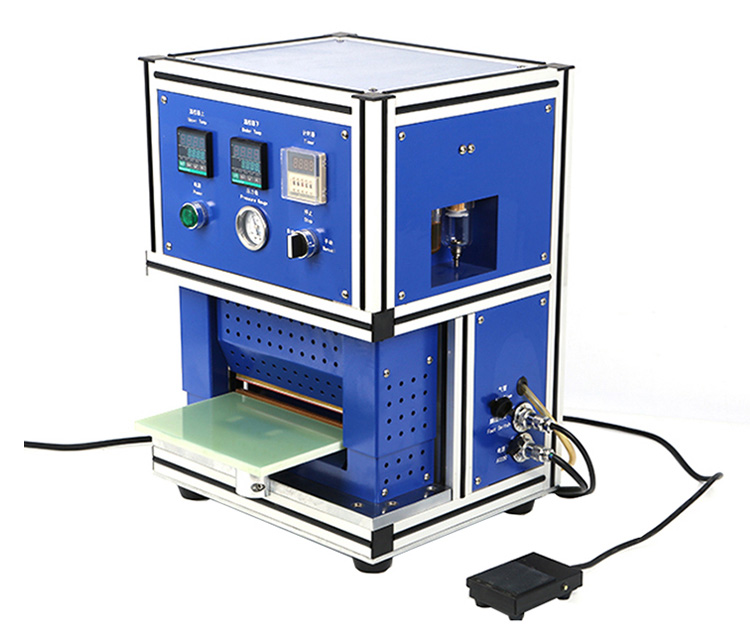

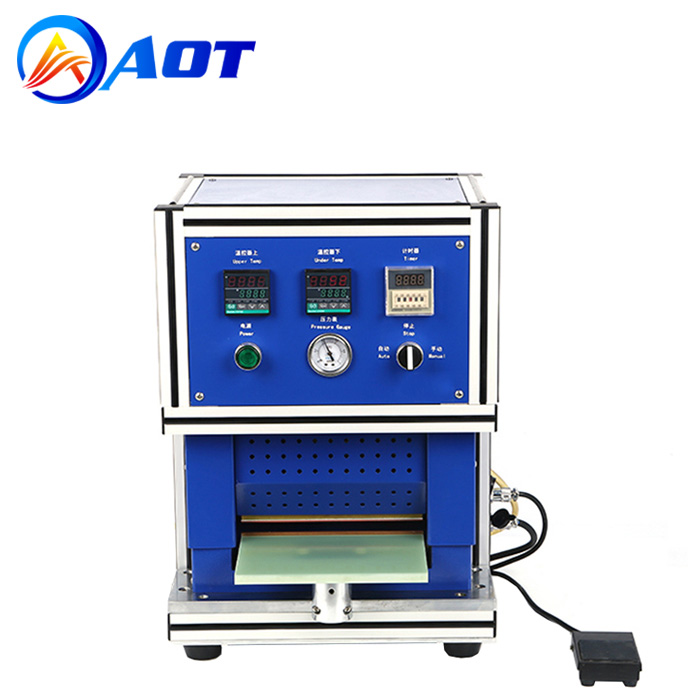

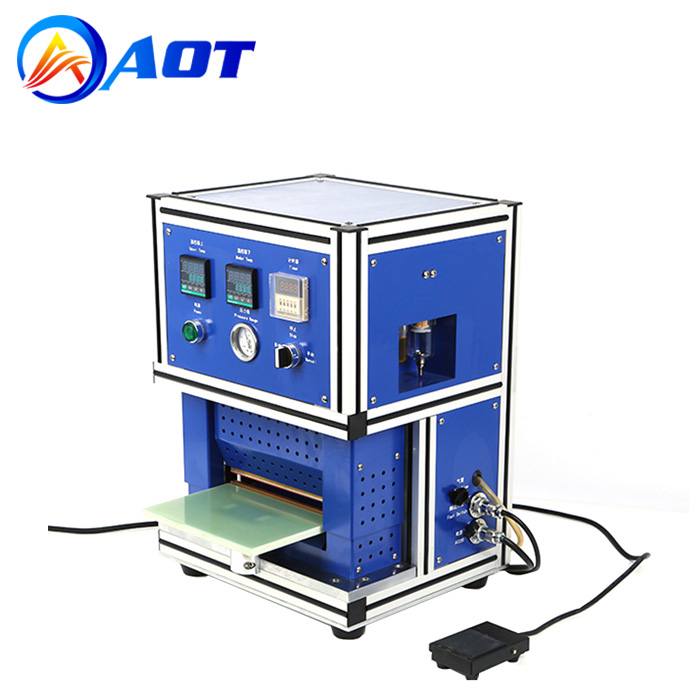

Compact Battery Heat Sealing Machine for Sealing Pouch Cell Case

Compact Battery Heat Sealing Machine for Sealing Pouch Cell Case

Model: AOT-TSS-200
Origin: China
Sealing Temp: RT-250 degree centigrade
Application: Battery Case Sealing
Product description: Compact Battery Heat Sealer Machine for Sealing Laminated Aluminum Film of Pouch Cell Case in Laboratory and Battery Factory.
INQUIRY

Battery Heat Sealing Machine for Pouch Cell Case of Laminated Aluminum Film

1. Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.

2. The battery heat sealing machine adopts soft sealing bar, The sealing is copper in bottom and aluminum and Silicone rubber piece on top. So it can be used for both top and side sealing for pouch cell.

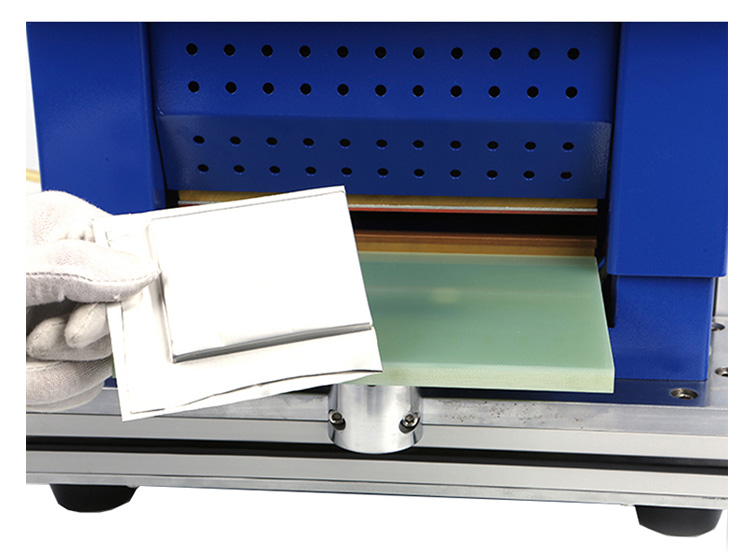

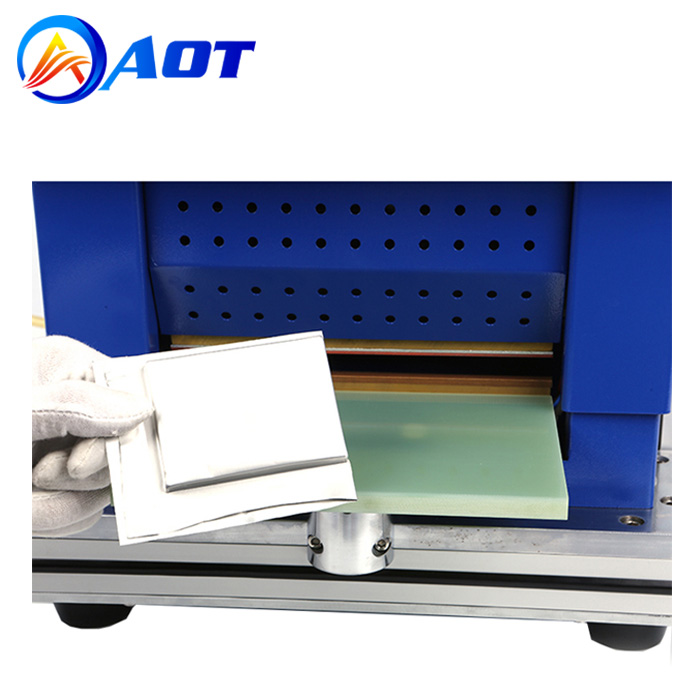

3. It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.

Model	Heat Sealing Machine AOT-TSS-200 for Lithium Polymer Battery

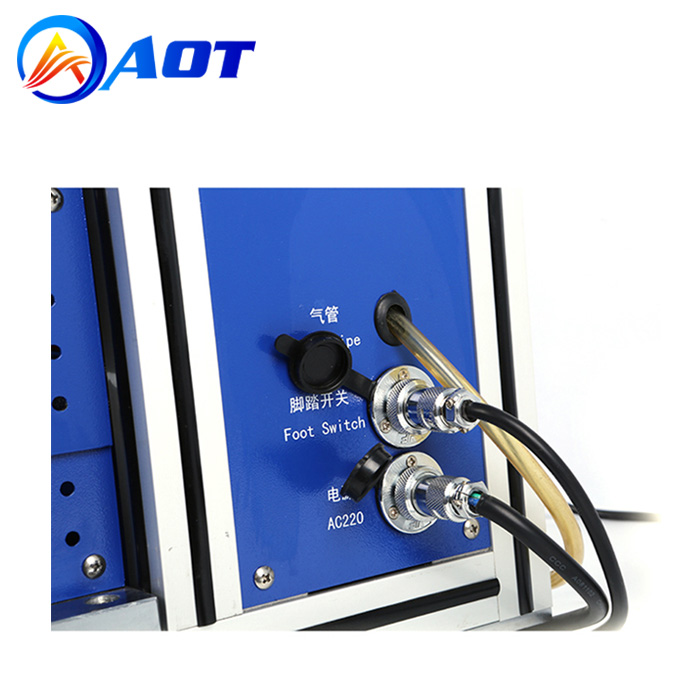

Power Supply	220V 50Hz ( 110V is available request )
Sealing Length	200 mm Max.
Sealing Width	5 mm (3-10mm)
Sealing Thickness	0.15 - 0.3 mm
Max. Power	500W
Sealing Pressure	0.5 - 0.7 MPa adjustable
Sealing Temperature	RT-250degree centigrade, adjustable
Heating Timer	0 - 99 Seconds Adjustable
Warranty	One Year limitedwarranty with lifetime support
Product Dimensions	430mm(L) x 330mm(W) x 480mm(H)
Net Weight	35kg
Sealing blade type	Soft sealing blade (Copper sealing blade with aluminum and Silicone rubber piece, good for Al film case sealing and case with tab in between, suitable for both top sealing and side sealing)
