Slot Die Sheet Coating Machine For Lab

Product Name: Coating Machine
Coating width:Max.200mm
Working Voltage; 110v
Origin:China
Product description: MSK-AFA-PD200 flatbed coating machine, equipped with extrusion coating mold, linear plunger feeding, minimum material loss of about 18ml, maximum coating size of 200x300mm, can be used in a glove box,
INQUIRY

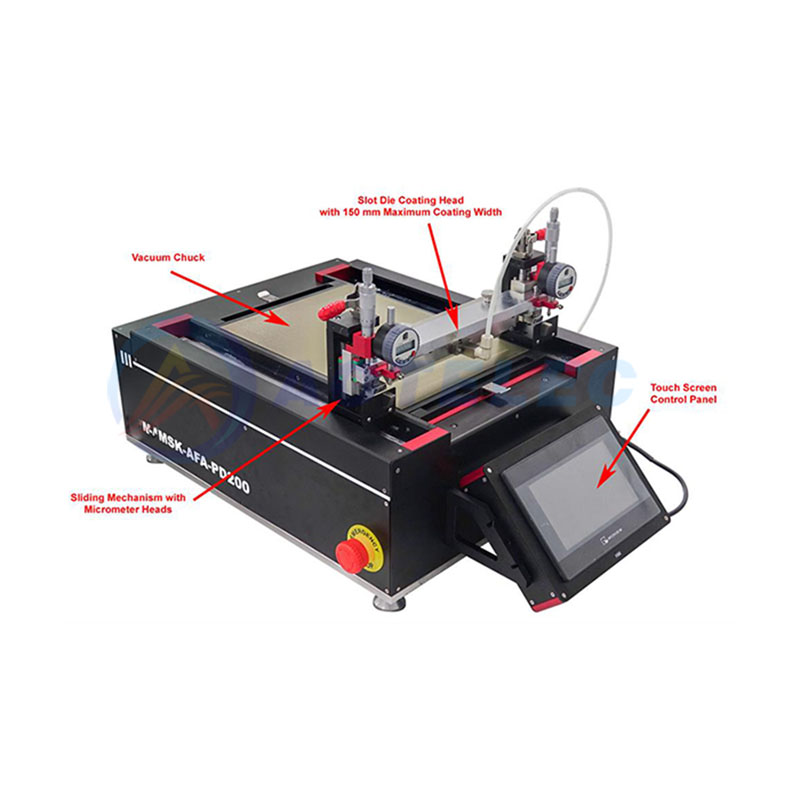

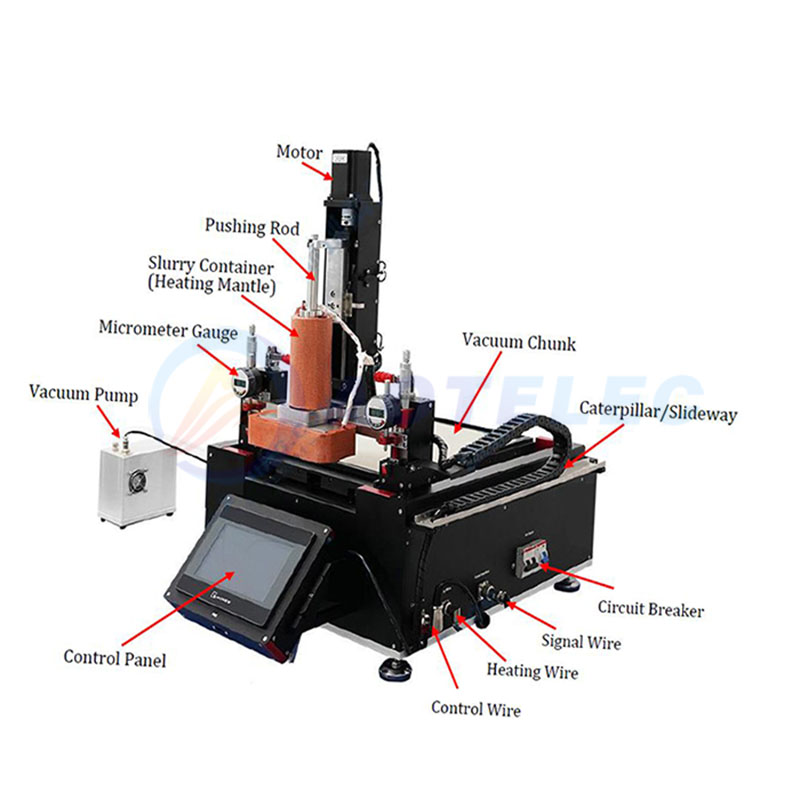

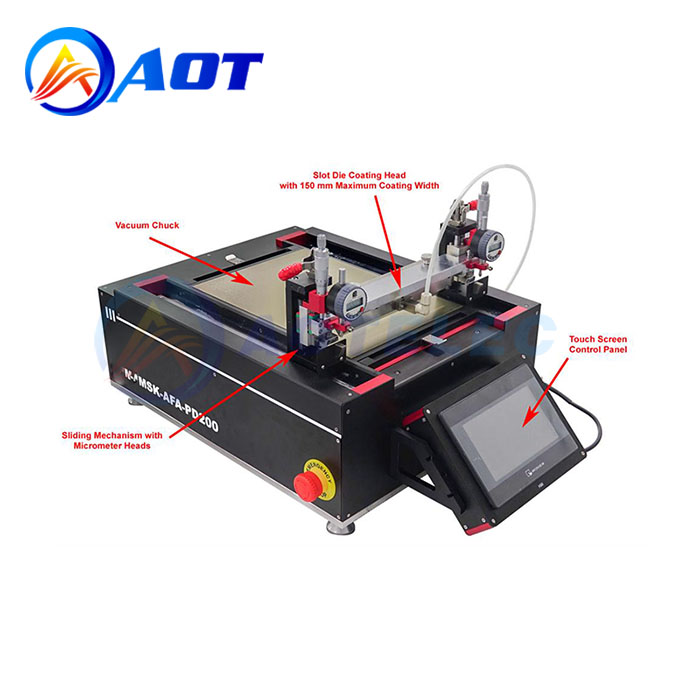

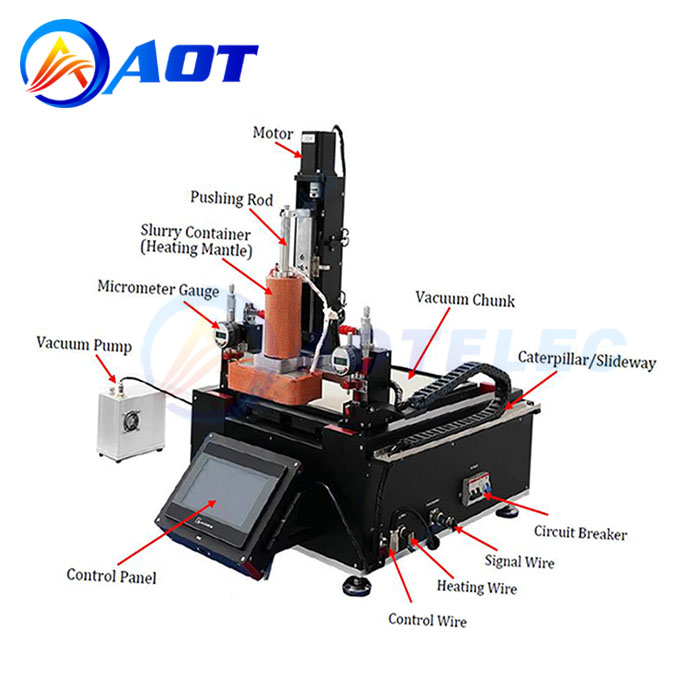

MSK-AFA-PD200 flatbed coating machine, equipped with extrusion coating mold, linear plunger feeding, minimum material loss of about 18ml, maximum coating size of 200x300mm, can be used in a glove box, suitable for low viscosity less than 1000mPa. s, coating thickness accuracy of ± 1 μ m, can be optionally coated with scraper, wire rod, and four sided mold maker.

It is an ideal tool for studying hot melt films of polymers or polymer composite materials, such as plastic films, flexible electrodes for solid-state batteries, perovskite solar cells, and thermoelectric sheets.

Product Name	Slot Die Sheet Coating Machine
Power	Single phase AC110-20V ± 10%, frequency 50/60Hz, power 300W
Coating method	extrusion coating
Coating thickness	± 1 µ m (reference graphite carbon slurry, viscosity ≤ 1000mPa. s, solid content 5%, coating dry thickness ≤ 5 µ m)
Type	Single layer coating
Chamber	semi-circular single chamber
Coating width	Max.200mm
Mold feeding speed	Mold feeding speed
Mold head movement	0.5-20mm/s (extrusion coating head movement speed)
Mold head adjustment range	0-5mm
Adjustment method	manual adjustment with micrometer, display accuracy of 1 μ m
Coating size	Max L300ｘW200mm
Substrate size	L360 * W250mm
Equipment size	L759 * W518 * H425mm
Weight	110KG
