1、Equipment Overview

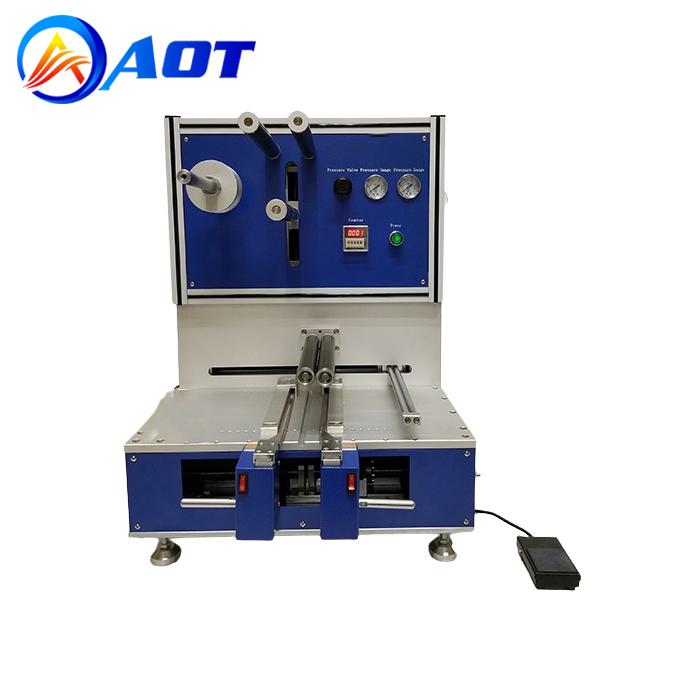

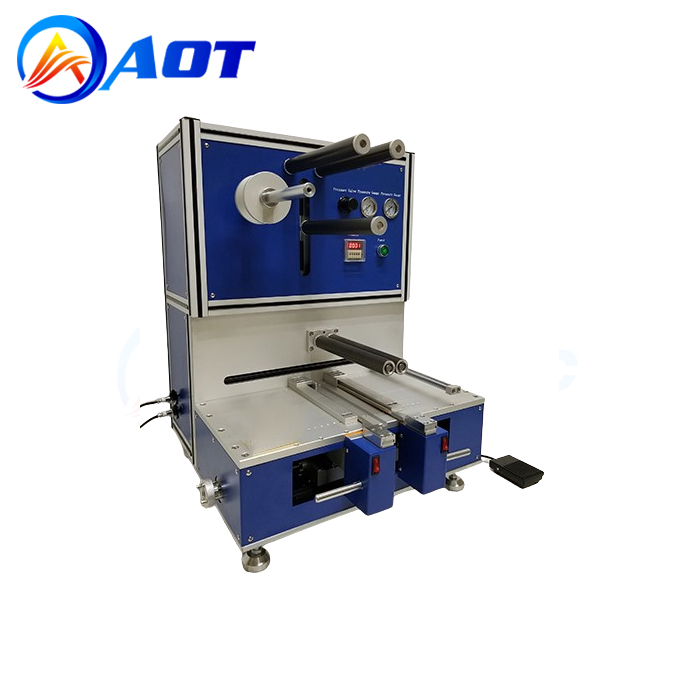

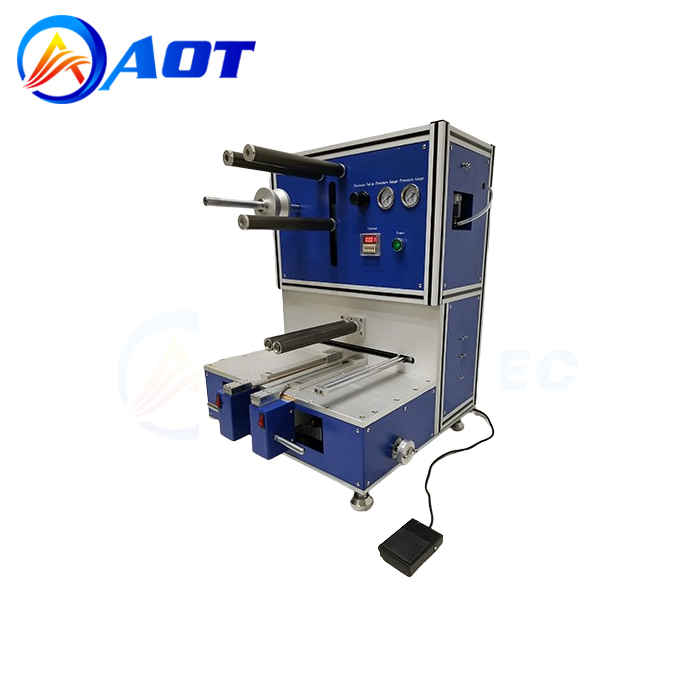

This equipment is mainly used for experimental square lithium-ion power battery cell Z-shaped stacking, the equipment adopts automatic tension control system, cylinder driven diaphragm reciprocating movement, manual pressure knife to assist stacking, with high stacking efficiency, neatness and good characteristics.

2、Work flow

The separate is actively unwound and introduced into the stacking table with positioning fixture through the tensioning mechanism; the cylinder drives the diaphragm to reciprocate and carry out Z-shaped stacking; the pole piece is placed manually and the pressure knife is operated manually to assist in stacking; after the stacking is completed, the core is transferred through the special fixture and then manually wrapped up and glued;

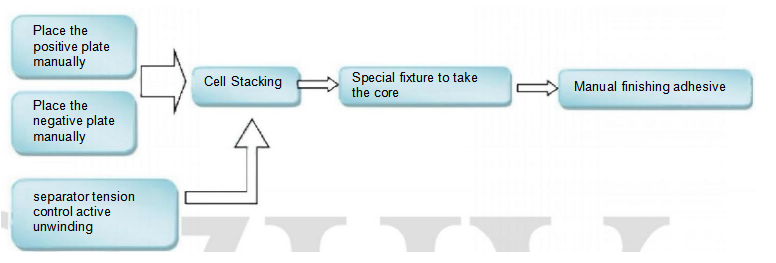

The process flow diagram is as follows:
