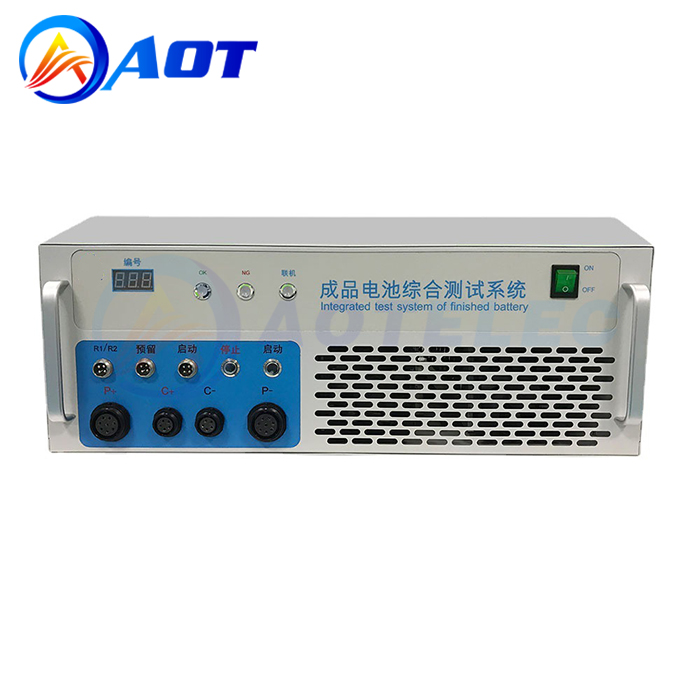

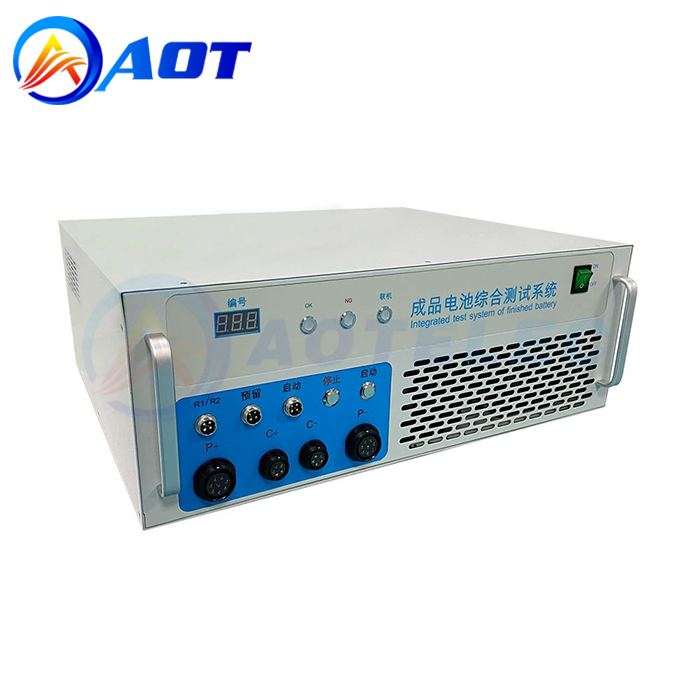

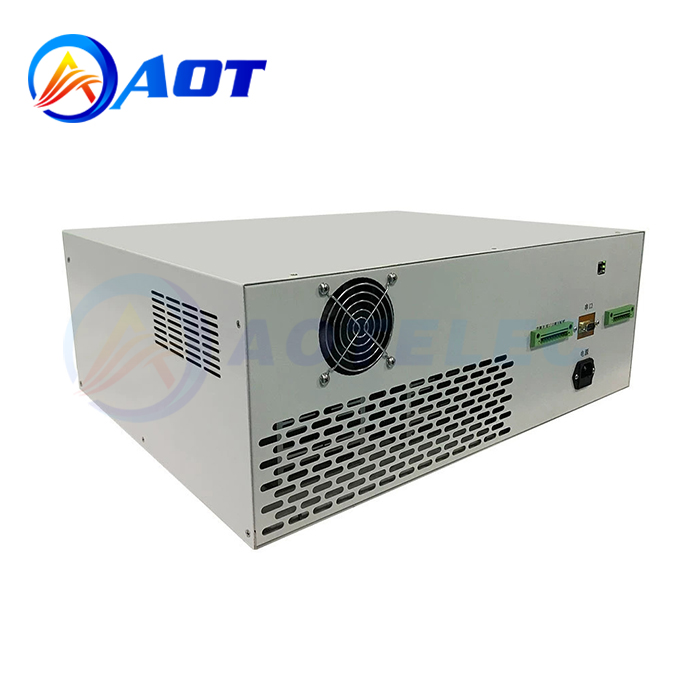

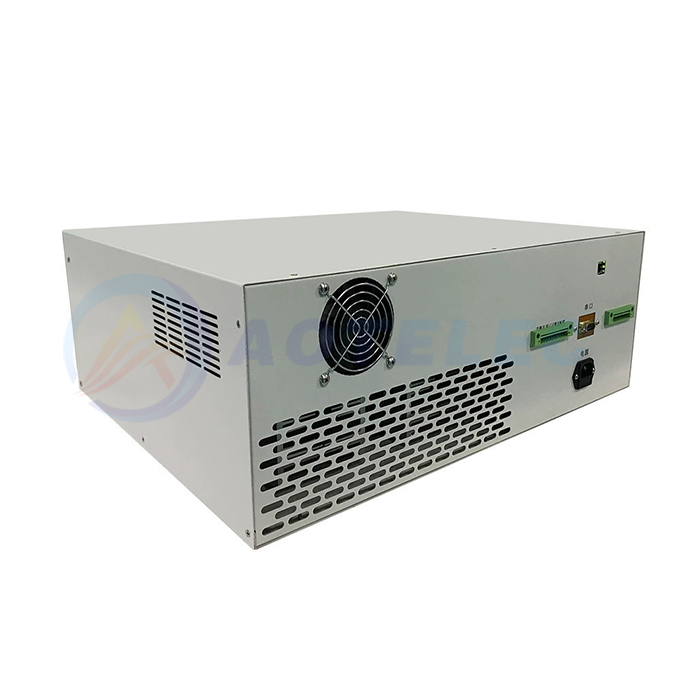

Integrated Test system Of Finished Battery Lithium Battery Comprehensive Tester

  • Product Name;Lithium Battery Comprehensive Tester
  • Model:AOT-BMS-TZ01
  • Input Power:AC220V±10%/50Hz
  • Origin:China
  • Product description: The comprehensive test equipment for finished batteries is used for the production and scientific research experiments of power battery packs such as automotive electronics, aerospace, ships, solar en
  • INQUIRY


The comprehensive test equipment for finished batteries is used for the production and scientific research experiments of power battery packs such as automotive electronics, aerospace, ships, solar energy storage, electric bicycles, electric motorcycles, backup power batteries, and communication power supplies.

It is a device that can quickly and accurately test the performance of finished batteries, mainly including the following test items:

Open circuit voltage, AC internal resistance, discharge test, discharge overcurrent test, short circuit protection test, charging test, charging protection test, resistance test.

The system adopts 32-bit ARM processor, and the voltage and current adopt 16-bit AD conversion

Compared with similar equipment, the test speed is fast, the test accuracy is high, and it supports the simultaneous operation of multiple equipment.

Features:

It can be started with a scanner gun, which is convenient for data tracking.

The test steps are independent, and the relevant steps can be edited at will.

Test results can be automatically saved.


Input power

AC220V±10%/50Hz

No-load voltage

Measuring range

0-50V

Resolution

+2mV

Current

Charging range

0.1-5A

Discharge range

0.1-60A .

Charge overcurrent

4-5A

Discharge overcurrent

4-60A

Resolution

+2mA

Precision

±(0.2% of reading +0.2% of range)

Internal resistance

Resolution

+0.1mΩ

Resistor R1/R2

Resolution

0.1KΩ

Voltage and current detection sampling

Four-wire sampling

Database

Manage test data with SQL database

Host computer communication method

Based on TCP/IP protocol, serial port

Data output method

EXCEL, TXT, Charts

Recitation interface

Serial port. Ethernet port

SizeL*W*H

520*410*200MM
