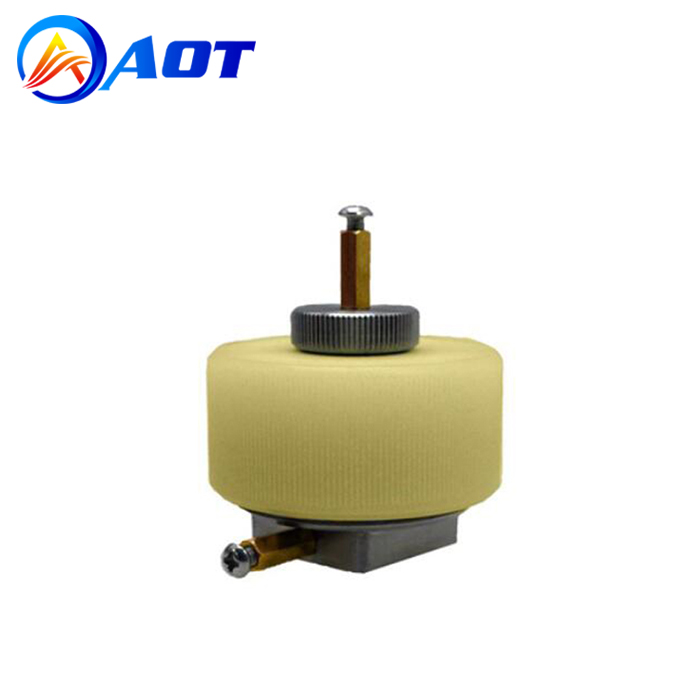

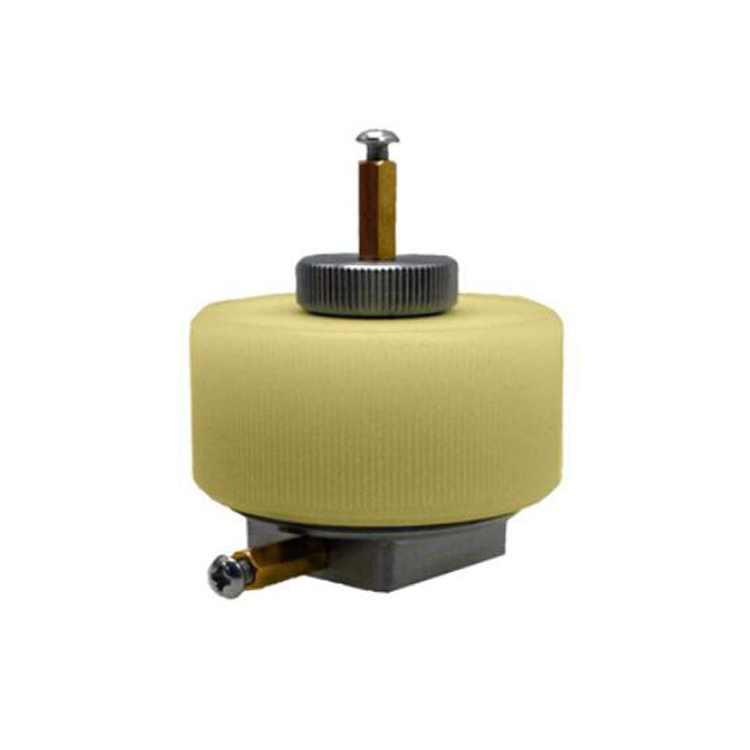

Compact Quick Assembly Battery Split Test Cell for Coin Cell

Compact Quick Assembly Battery Split Test Cell for Coin Cell

Model: AOT-HSTC-20
Material: Stainless Steel
Origin: China
Warranty: 1 Year
Product description: AOT-EQ-HSTC-20mm split-able test cell is designed for high-throughput R&D battery material testings without any crimper. It can be used for both liquid and solid state batteries.
INQUIRY

Quick Assembly Split Test Cell for high-throughput testing of battery materials

EQ-HSTC-20mm split-able test cell is designed for high-throughput R&D battery material testings without any Crimper. The smart design allows you to quickly and easily assemble a coin cell by hand tightening to increase research efficiency. It can be used for both liquid and solid state batteries.

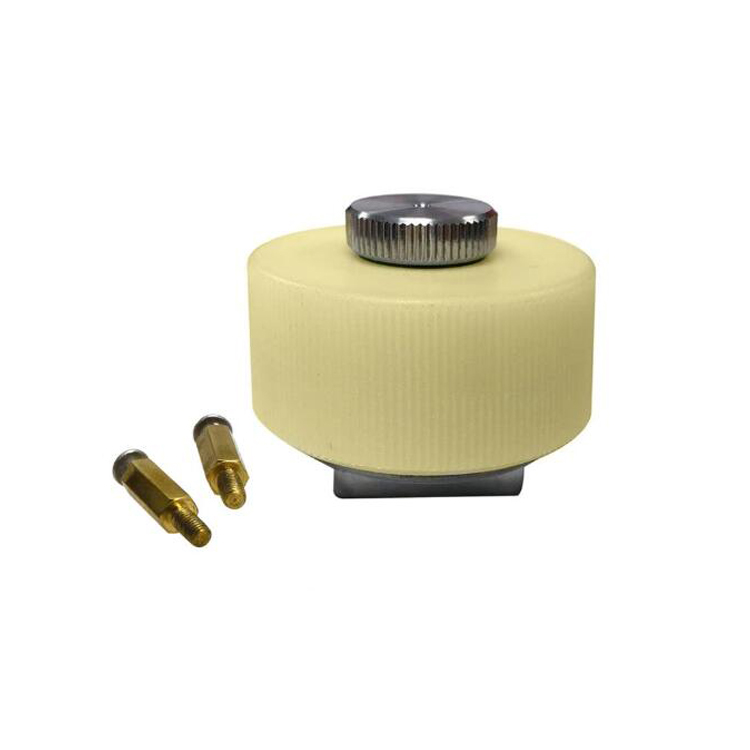

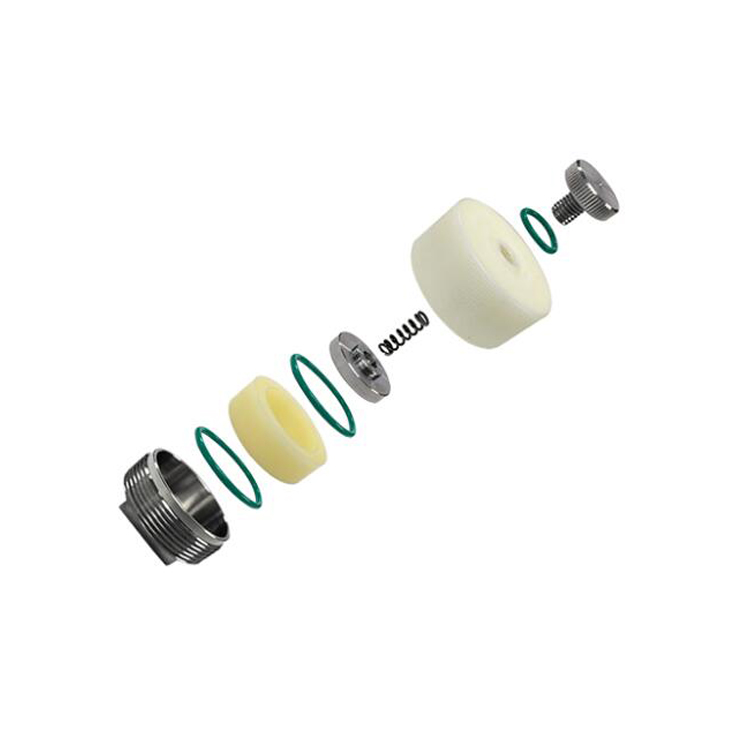

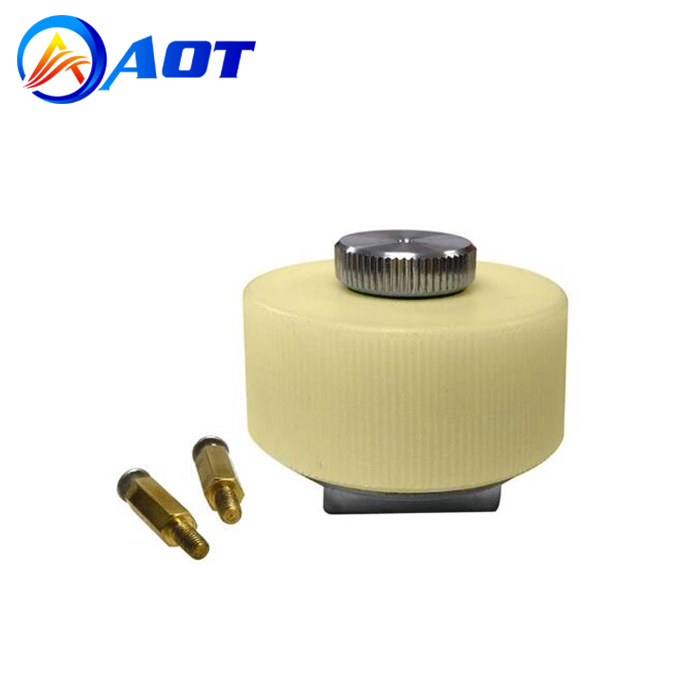

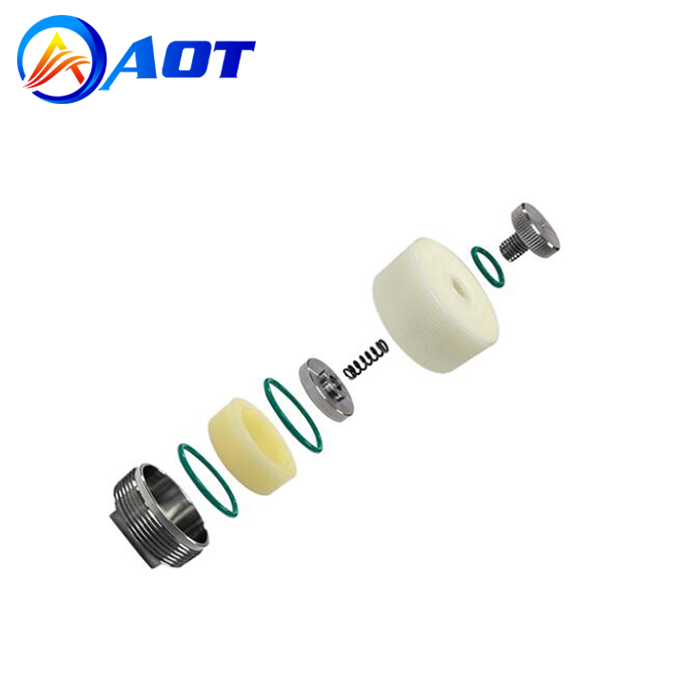

Structure & Features	Easy cell assembling by "thread-in" the bottom contacting plate and top plunger into the Nylon body. Stainless Steel contact plate and plunger. (Copper made contact plate and plunger are available with extra cost) PTFE made sealing gaskets and Nylon body can well resist the chemical corrosion from electrolyte Air-tight design ensures zero electrolyte leakage Easy to separate and clean after use Same functionality as "Swagelok Type Cell" but with more size options for electrode and separator. Spacer inside the test cell to press down on the electrode and prevent the electrode from curling Directly clamp on battery analyzer without wire connection for quick testing Extending rod included for each electrode
Electrode Dia.	Standard 20mm ID
Insertion Thickness	max. thickness of the material can be inserted is upto 6mm
Working Temperature	Max. 100 ºC
Electrode Contact Coating (Optional)	Anti-corrosive Au coating on the base contact plunger and inserts is available upon request
