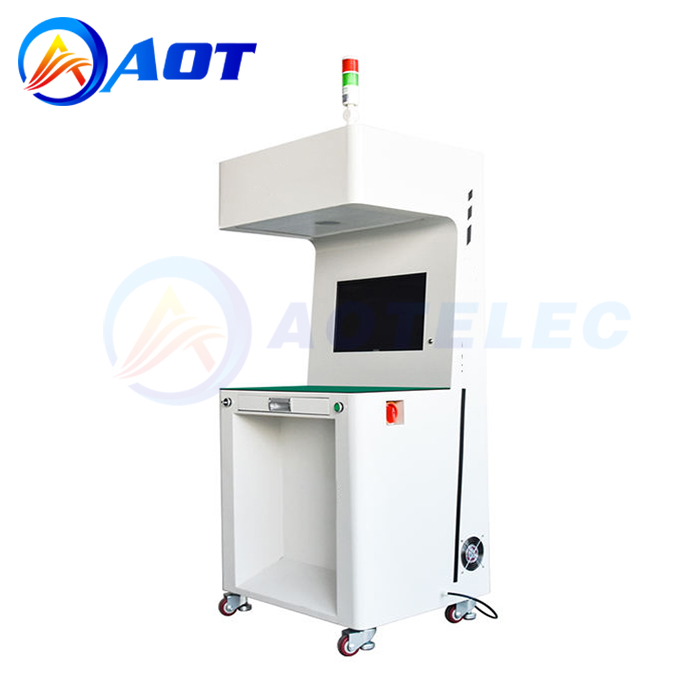

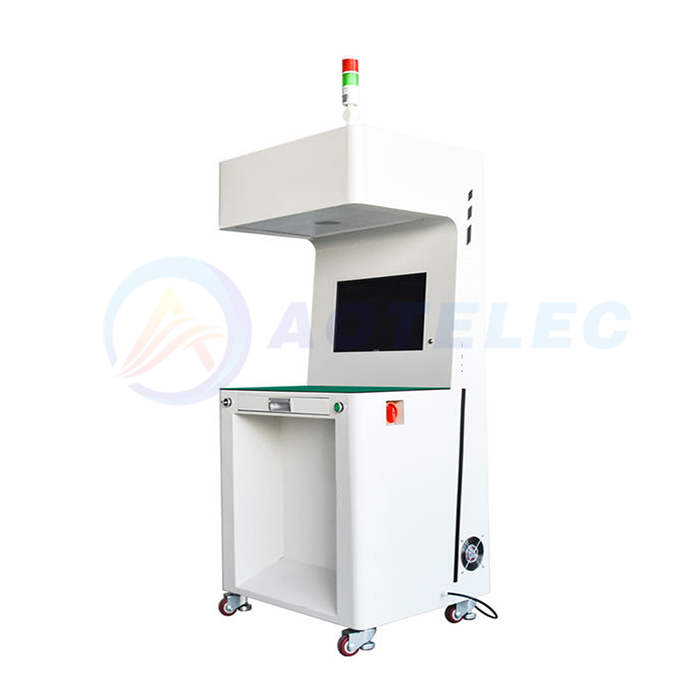

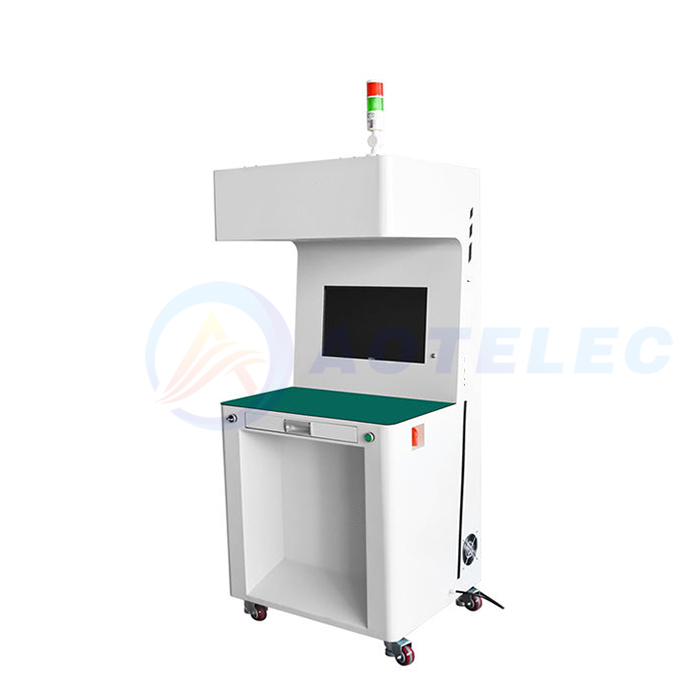

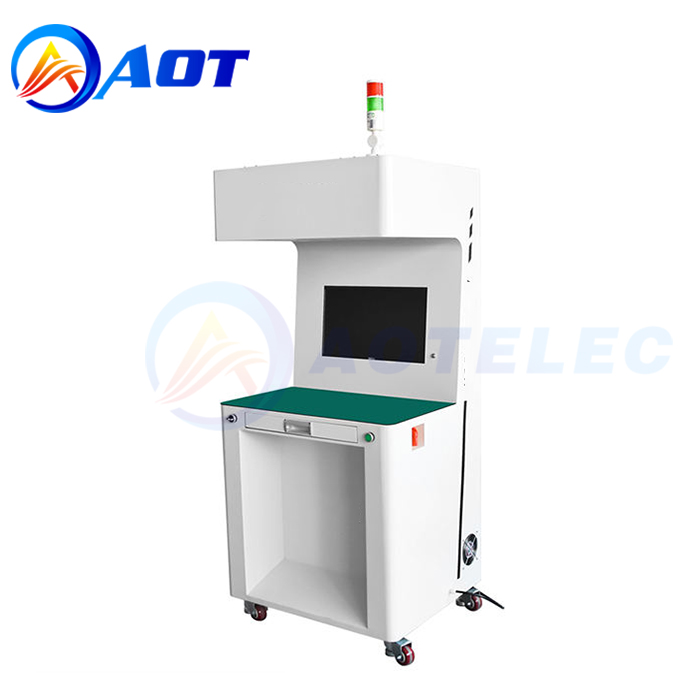

CCD Tester Machine for Cylindrical Battery Production Line Making

  • Product Name : CCD Tester Machine
  • Power supply:220VAC, 50/60Hz,Single-phase
  • Power :200w
  • Origin:China
  • Product description: CCD tester machine has high efficiency and accuracy in detecting the correct placement of battery series and parallel positive and negative electrodes and spot welding defective products.
  • INQUIRY

CCD vision detection equipment, in fact, refers to the CCD image sensor through the machine vision products will be collected image signal, transmitted to a special image processing system, according to the distribution of pixels and brightness, color and other information, the signal into a digital signal detection device; The image system performs various operations on these signals, extracts the features of the target, and then controls the action of the field equipment according to the recognition results. It has high efficiency and accuracy in detecting the correct placement of battery series and parallel positive and negative electrodes and spot welding defective products.



Product Name

Lithium battery CCD Tester

Voltage

AC220V+10% 50Hz

Power

Max 200W

Working distance

550mm+48mm

XY axis stroket

500mm X350mm

Accuracy

± 0.1mm

Detect camera pixels

2000 fixed focus lens

Product features:





1. Manual loading and unloading and manual start detection are available.



2. Hd 20-megapixel prime lens for detection,the detection range of the equipment is 500mm × 350mm,



3. The detection performance is stable and efficient.



4 Simple programming, can set the judgment standard


5. Can store programming files.





Size

1780x 1000x 1940 (mm)

Light source

 Special light source

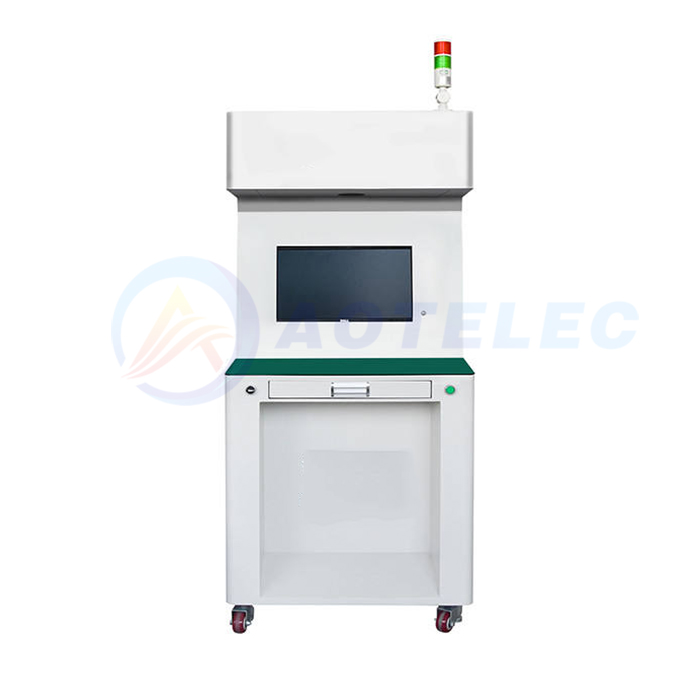

Lithium battery CCD Tester

Lithium battery CCD Tester

 battery CCD Tester
